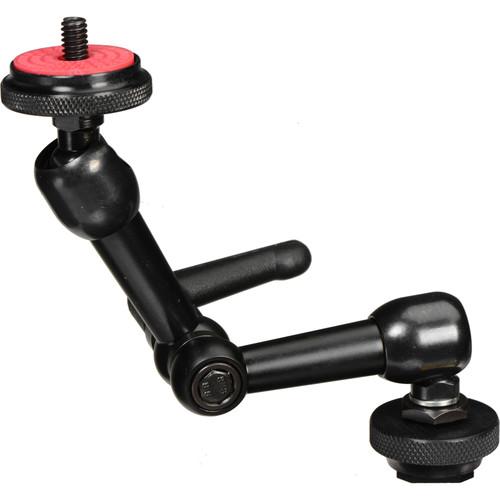

User Manual for Noga Cine Arm & Slide Shoe Kit Click to enlarge the picture
Contents of the user manual for the Noga Cine Arm & Slide Shoe
- Product category: Articulating Arms Noga
- Brand: Noga
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Noga Articulating Arms
|
User manual for the Noga Cine Arm & Slide Shoe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Noga product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Noga user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Noga product will considerably shorten its lifespan!
|
Product description Mount accessories to your camera with this Noga Cine Arm & Slide Shoe Kit. The arm can be mounted either directly to a threaded hole, or using the included Slide Shoe Kit, mounted to a standard accessory shoe like those found atop DSLRs and camcorders. - NF1108CA Cine Arm The Noga NF1108CA Cine Arm is composed of 3-joints that can be quickly and efficiently locked or released using a kip lever-based central mechanism. All 3 joints can be simultaneously locked using the single central locking knob. You can use the articulating arm for loads up to 7.2 lb (3.25 kg).
While supporting camera lights and monitors, you can move the arm horizontally or vertically, as well as achieve tilt adjustments to obtain the best possible view. With equal length on both sides, the arm offers increased strength and holding resistance.
You can attach the articulating arm to a wide range of cameras via 1/4"(0.635 cm)-20 top and 1/4"(0.635 cm)-20 bottom screws. The NF1108CA weighs just 0.56 lb (0.25kg) for enhanced portability. - Maximum load capacity - 7.2 lb (3.25 kg)
- Provides quick and efficient locking or release of arms using a kip lever-based central mechanism
- Offers simultaneous locking of all 3 joints via single central locking knob
- Provides horizontal, vertical as well as tilt adjustments allowing you to obtain the best possible view
- Equal length on both sides of the arms for increased strength and holding resistance
- Attaches to a wide range of cameras via 1/4"(0.635 cm)-20 top and 1/4"(0.635 cm)-20 bottom screws
- Supports camera lights and monitors
- Ensures enhanced portability owing to its lightweight - (0.56 lb / 0.25kg) construction
- Slide Shoe Kit The Slide Shoe Kit from 16x9 Inc is a shoe-mount to 1/4"-20 screw converter designed to support magic arms, ball heads, or any accessory which utilizes a standard 1/4" screw. The adapter easily slides into any conventional shoe mount on the bottom end and provides a reinforced 1/4"-20 screw on the top end. A vertically adjustable slide shoe block is provided to secure the adapter into a hot or cold shoe.
In the Box Bundle Items NF1108CA Cine Arm exwdbquy Slide Shoe Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the Noga Cine Arm & Slide Shoe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - NF1108CA Cine Arm
| Arm | Top - 1/4"(0.635 cm)-20 screw plus nut Bottom - 1/4"(0.635 cm)-20 screw | | Extended Length | 5" (12.7 cm) | | Maximum Load Capacity | 7.2 lb (3.25kg) | | Weight | 0.56 lb (0.25kg) | | | | Box Dimensions (LxWxH) | 5.9 x 4.1 x 1.4" | - Slide Shoe Kit
| Bottom Mount | 1 x Accessory Foot | | Top Mount | 1 x 1/4"-20 Male | | | | Box Dimensions (LxWxH) | 3.8 x 2.5 x 1.4" |
