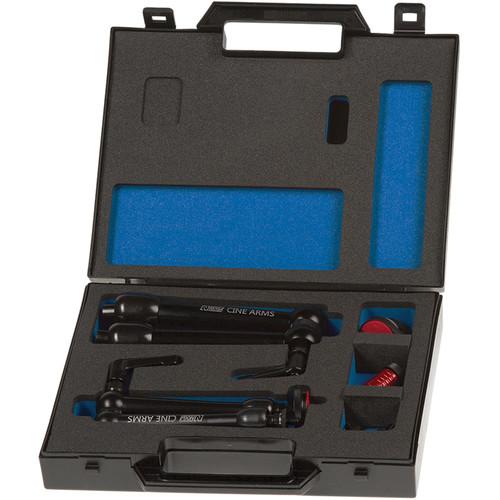

User Manual for Noga HS5000 Kit Click to enlarge the picture
Contents of the user manual for the Noga HS5000 Kit
- Product category: Articulating Arms Noga
- Brand: Noga
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Noga Articulating Arms
|
User manual for the Noga HS5000 Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Noga product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Noga user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Noga product will considerably shorten its lifespan!
|
Product description The Noga HS5000 Kit includes two CineArms and a number of accessories designed to allow you to mount your camera gear in virtually whatever position you want with ease. The DG9000 CineArm and the MG9038CA CineArm MG are composed of three joints that can be quickly and efficiently locked or released using a kip lever-based central mechanism.
All three joints of the CineArms can be simultaneously locked using the single central locking knob. While supporting camera lights and monitors, you can move the arm horizontally or vertically, as well as achieve tilt adjustments to obtain the best possible view. With equal length on both sides, the arm offers increased strength and holding resistance.
The DG9000 has female threads on both sides, allowing you to choose which side you need either the 1/4"-20 or the 3/8" to go on. It is compatible with both included M8 converters.
The included M8 to 1/4" and M8 to 1/8" converters and head adapter will enable you to mount nearly any camera accessory to any camera. The HS5000 also includes a locking protective case, making travelling with it safe and easy. - MG9038CA CineArm MG with AD4000 Quick-Release Adapter Kit The Noga MG9038CA CineArm MG with AD4000 Quick-Release Adapter Kit provides you a flexible accessory support arm with a quick release adapter that allows you to quickly attach or remove accessories. The Noga arm features a central pivot and two ball joints, one on each end. All three of these joints can be simultaneously locked using the single central spring-loaded locking lever.
The AD4000 quick release is a pull-to-release adapter that replaces the standard 1/4"-20 thread mount on the top of all Cine Arms Series arms. It utilizes a 1/4" male thread with non-slip rubber surface for mounting optional accessories like monitors, lights, etc. You can then mount the preloaded accessory on the arm by pulling back the release sleeve on the adapter and sliding it onto the end of the arm. - AD5000 Integrated Head Adapter with M6 Thread The AD5000 Integrated Head Adapter with M6 Thread from Noga replaces the standard 1/4”-20 locking disc and thread found on tops of Cine Arms. This adapter allows easy mounting of accessories on the arms by utilizing a retained 1/4” male thread and locking disc on a non-slip rubber surface. This low-profile integrated adapter provides a better control.
In the Box Bundle Items MG9038CA CineArm MG with AD4000 Quick-Release Adapter Kit ydvubuqvzw - MG9038CA CineArm MG (Large)
- Quick Release Adapter - 1/4"-20 Male to M6 Male
AD5000 Integrated Head Adapter with M6 Thread
Also Includes - DG Cine Arm with Female Thread on Both Sides
- M8 to 1/4" Converter
- M8 to 3/8" Converter
- Carrying Case
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Noga HS5000 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - MG9038CA CineArm MG with AD4000 Quick-Release Adapter Kit
| | | Box Dimensions (LxWxH) | 8.9 x 3.7 x 2.4" | - AD5000 Integrated Head Adapter with M6 Thread
| Compatible With | Fits DG1108CA, DG6145CA, MG6145CA, NF1108CA, NF6145CA Cine Arms | | Interface | Top: 1/4"-20 male thread
Bottom: M6 male thread | | | | Box Dimensions (LxWxH) | 2.6 x 2.0 x 1.5" |
