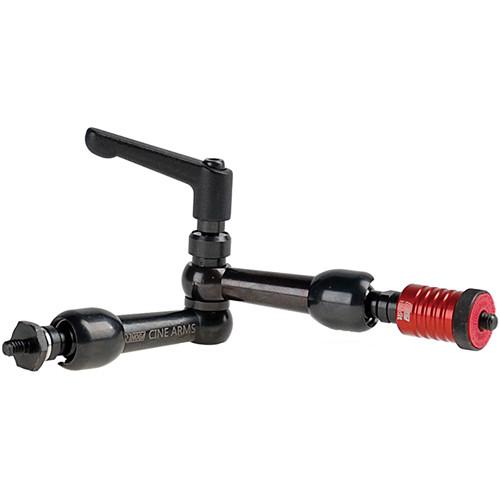

User Manual for Noga NF9014CA CineArm & AD4000 Quick Release Kit Click to enlarge the picture
Contents of the user manual for the Noga NF9014CA CineArm & AD4000 Quick
- Product category: Articulating Arms Noga
- Brand: Noga
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Noga Articulating Arms
|
User manual for the Noga NF9014CA CineArm & AD4000 Quick contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Noga product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Noga user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Noga product will considerably shorten its lifespan!
|
Product description With the Noga NF9014CA Cine Arm & AD4000 Quick Release Adapter Kit you can mount accessories to your rig quickly and securely. When combining the AD4000 quick-release with the Cine Arm, not only can you flexibly position your accessory, you can also attach it and detach it with the simple push-pull locking action on the AD4000. See below for more information on the individual items in this kit. - NF9014CA CineArm NF (Small) The Noga NF9014CA CineArm NF (Small) is composed of 3-joints that can be quickly and efficiently locked or released using a kip lever-based central mechanism. All 3 joints can be simultaneously locked using the single central locking knob. You can use the articulating arm for loads up to 7.2 pounds. While supporting camera lights and monitors, you can move the arm horizontally or vertically, as well as achieve tilt adjustments to obtain the best possible view. With equal length on both sides, the arm offers increased strength and holding resistance. You can attach the articulating arm to a wide range of cameras via 1/4" -20 top and 1/4" -20 bottom screws. Lastly, it weighs just 0.6 pounds.
- Provides quick and efficient locking or release of arms using a kip lever-based central mechanism
- Offers simultaneous locking of all three joints via single central locking knob
- Provides horizontal, vertical as well as tilt adjustments allowing you to obtain the best possible view
- Equal length on both sides of the arms for increased strength and holding resistance
- Attaches to a wide range of cameras via 1/4" -20 top and 1/4" -20 bottom screws
- Supports camera lights and monitors
- Ensures enhanced portability owing to its lightweight - (0.6 lb) construction
- Quick Release Adapter - 1/4"-20 Male to M6 Male Make quick changes to your setups with the compact, pull/push Quick Release Adapter from Noga. Instead of screwing and unscrewing, simply pull off the top, attach your gear to it, and then easily and securely push it right back in. The adapter features a pull-to-release top with a 1/4"-20 threaded screw, and on the bottom has an M6 threaded screw. The top portion is also outfitted with a non-slip rubber mounting surface for optimal safety and stability.
In the Box Bundle Items NF9014CA CineArm NF (Small) atevasazwtrsxdswfeevxzcbvcq Quick Release Adapter - 1/4"-20 Male to M6 Male Table of Contents
|
Upload User Manual
Have you got an user manual for the Noga NF9014CA CineArm & AD4000 Quick Release Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - NF9014CA CineArm NF (Small)
| Arm | Top: 1/4"-20 screw plus nut
Bottom: 1/4"-20 screw | | Extended Length | 5.0" (12.7 cm) | | Maximum Load Capacity | 7.2 lb (3.3 kg) | | Weight | 0.6 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 6.55 x 2.9 x 1.7" | - Quick Release Adapter - 1/4"-20 Male to M6 Male
| | | Box Dimensions (LxWxH) | 2.5 x 1.5 x 0.5" |
