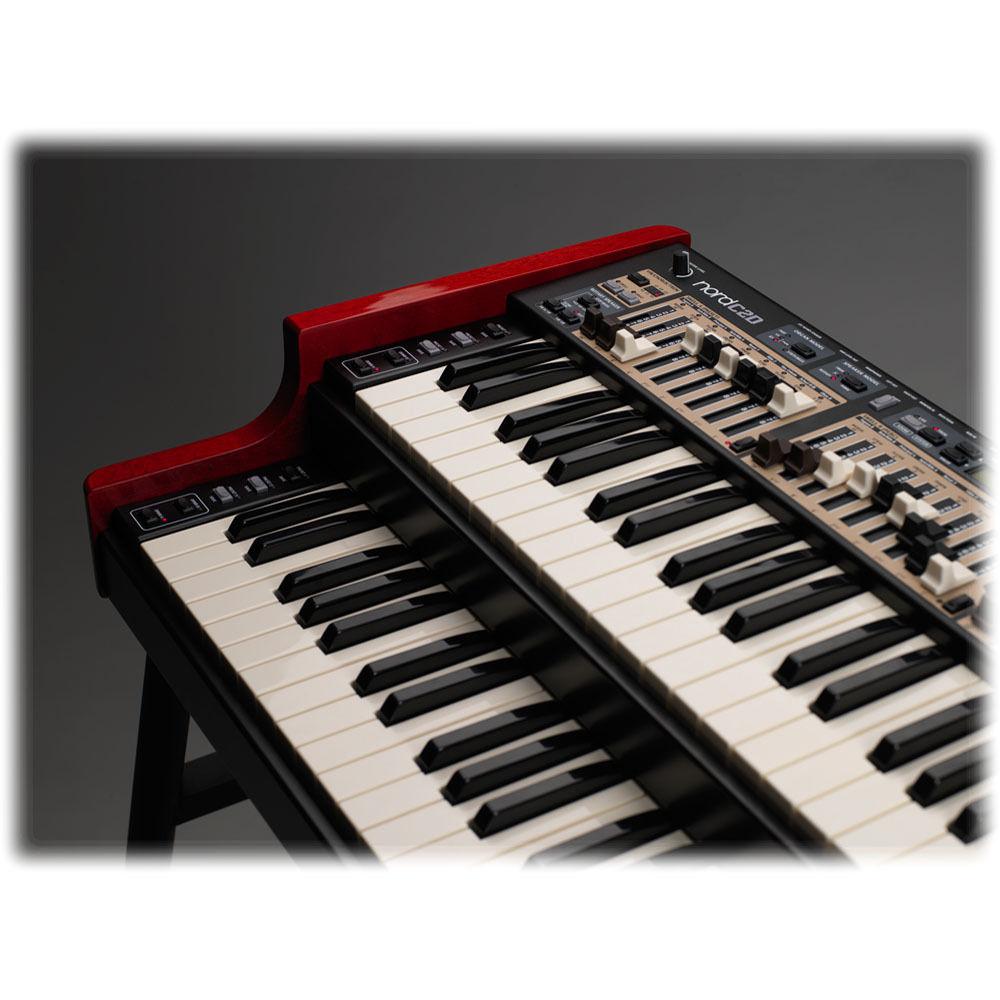

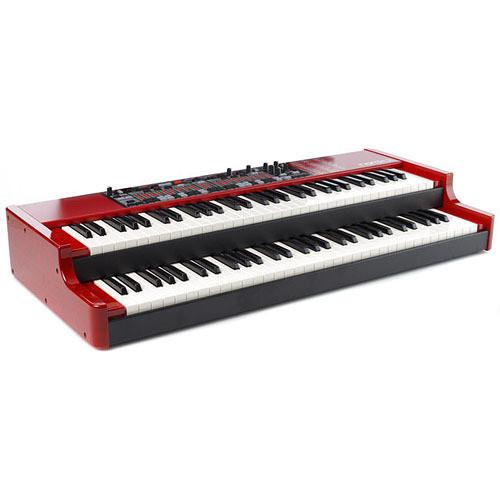

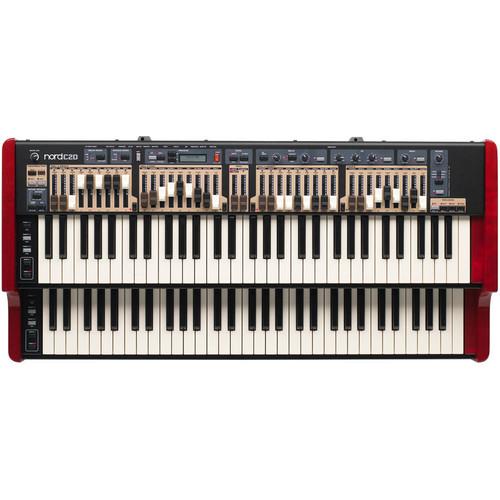

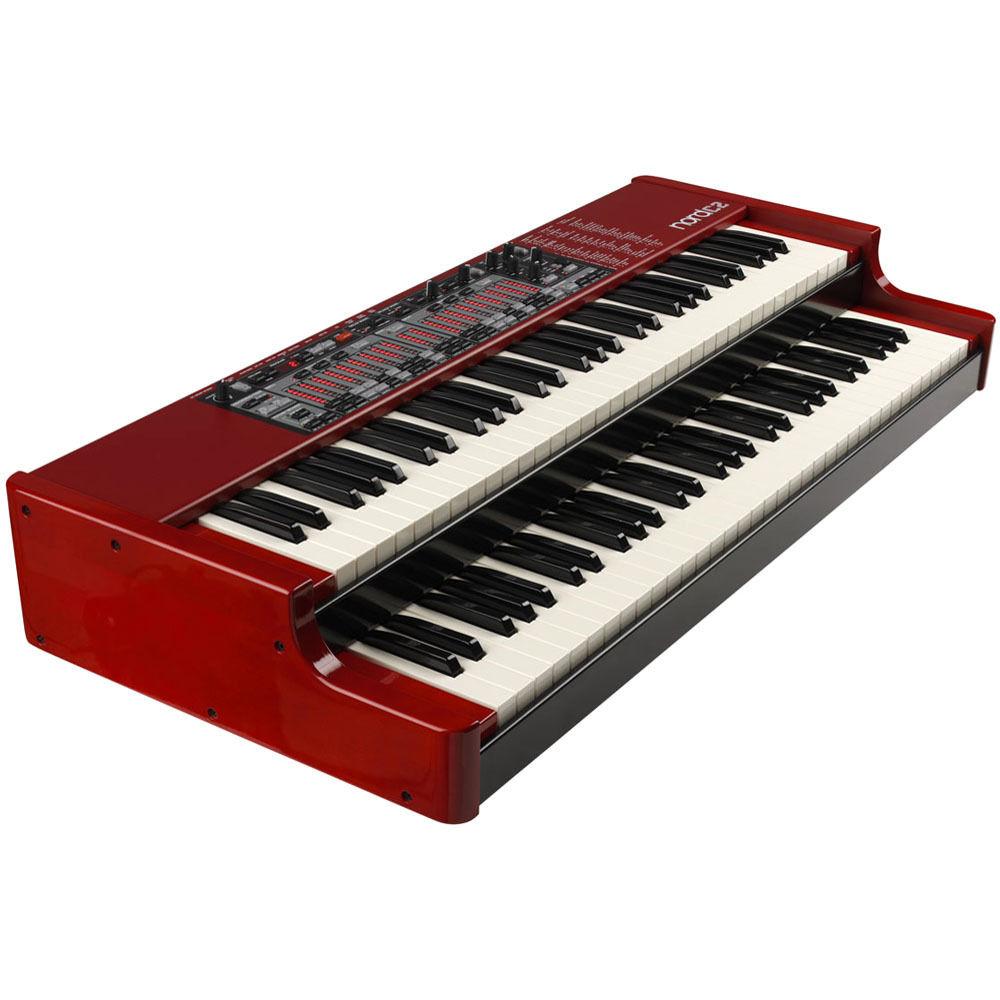

Product description The C2D Combo Organ by Nord is an industry-leading portable organ designed to produce realistic simulations of the B3 tone wheel organ as well as Vox and Farfisa transistor organs. It features two, medium weighted keyboards with 61 waterfall keys and two sets of physical drawbars. In addition to tone wheel and transistor organ simulation, it also features a carefully sampled baroque pipe organ which offers a rich sound palette and a wide range of expression. The C2D provides improved mechanical key click simulation and a redesigned percussion model offering more control while playing near-legato. It also comes with an onboard effects section featuring two rotary speaker simulators, Twin and JC guitar amp models, 3-band EQ, feedback delay and six reverb effects. As if that wasn't enough, the C2D also features couplers that can activate combinations of different stops from the lower and upper manuals. The pedal division features three bass stops that can be played from the lower manual or an optional MIDI pedal board. Rotary speaker simulation can be controlled by dedicated buttons, a foot pedal, or attach a real rotary speaker to its 11-pin output. Plus, its stereo 1/8" input allows you to plug in a MP3 or CD player and practice or play along with any song. Organ Section - Classic Tonewheel Organ, Vox Continental and Farfisa-models with full polyphony
- Dual manuals with 61, medium weighted waterfall keys
- Baroque style Pipe Organ with 21 stops. Polyphony depends on the stops being used
- Bass models include tonewheel, synthbass and pipe organ bass
- Six drawbar presets per program location
- Two sets of drawbars per manual with left hand drawbar preset panel
- Percussion controls plus Vibrato, Chorus and Tremulant control
Effect Section - Overdrive, 3-band EQ, Delay with feedback and tap-tempo function plus six Reverb algorithms
- Three types of Speaker Simulations including two Rotary Speaker models with selectable speed
UPC: 834035001059 In the Box Nord C2D Combo Organ Power Cord Limited 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nord C2D Combo Organ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

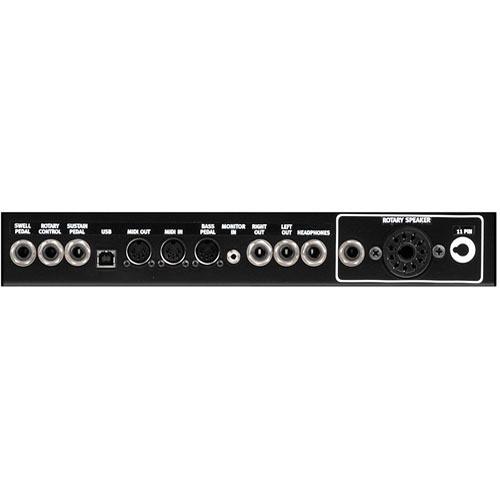

Technical parametersNord C2D Specs | Keyboard | 2 x 61 Medium Weighted Waterfall Keys | | Inputs | 1 x 1/8" (3.5mm) Stereo Mini-Plug Monitor Input (for CD/MP3 player) | | Outputs | 1 x 1/4" (6.35mm) Stereo Headphone Output
2 x 1/4" (6.35mm) Line-Level Outputs
1 x 1/4" (6.35mm) High Level Output
1 x 11-Pin Standard Leslie Connector (High Level Output) | | MIDI | MIDI In, MIDI Out
Bass Pedal MIDI In | | Pedals | 1 x 1/4" (6.35mm) Sustain Pedal Input
1 x 1/4" (6.35mm) Rotary Control Input
1 x 1/4" (6.35mm) Swell Pedal Input | | General | Master Level Control
2 Drawbar sets per manual
Pedal drawbars
126 Program Locations
Live Buffer | | Connectivity | USB - type B connector
The USB connection is used for the Nord C2D to communicate with a computer to update the OS or manage the programs. The computer can be used to transfer the operating system if the unit needs to be updated and to make backups of the memory content. | | Organ Section | Classic Tonewheel Organ, Vox Continental- and Farfisa-models with full polyphony
Pipe Organ, baroque style with 21 stops. Polyphony depends on the stops being used
Bass models (tonewheel, synthbass and pipe organ bass)
6 Drawbar Presets per Program Location
Percussion Controls
Vibrato/Chorus/Tremulant Control | | Pipe Organ Stops and Couplers | Swell (Manual II)
Fugara 8
Rohrflöte 8
Principal 4
Spitzflöte 4
Nasat 3
Flöte 2
Vox Celeste
Scharf II-III
Oboe 8
Great (Manual I)
Principal 8
Gamba 8
Gedackt 8
Octava 4
Rohrflöte 4
Qvinta 3
Octava 2
Mixtur III-IV
Trumpet 8
Pedal
Subbas 16
Fagot 16
Gedackt 8
Couplers
PED/GR. Low
SW 16/GR
SW/GR
Swell 16
Swell 4
SW/PED
GR/PED | | Effects | 3-band Equalizer
Overdrive
3 types of Speaker Simulations - including two Rotary Speaker models (122, 122 Close and 145) with selectable speed (slow - stop - fast)
Delay - with feedback and tap-tempo function
Reverb - 6 algorithms | | Display | LED | | User Memory | 126 Program Locations | | Power | IEC320 C7 power connector (Included) | | Dimensions | 38 x 6.4 x 17.5" (96.6 x 16.3 x 44.5 cm) | | Weight | 35 lb (16 kg) | | | | Package Weight | 44.2 lb | | Box Dimensions (LxWxH) | 43.0 x 23.0 x 10.5" |
