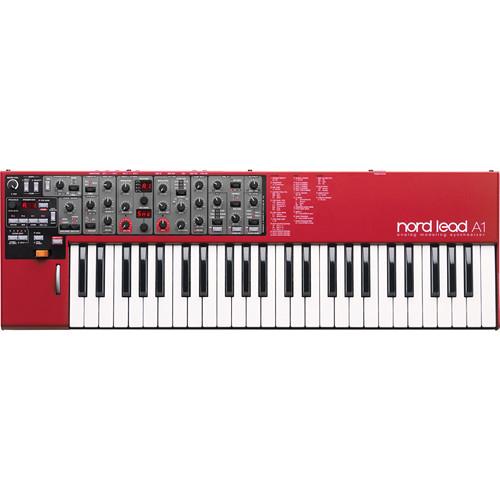

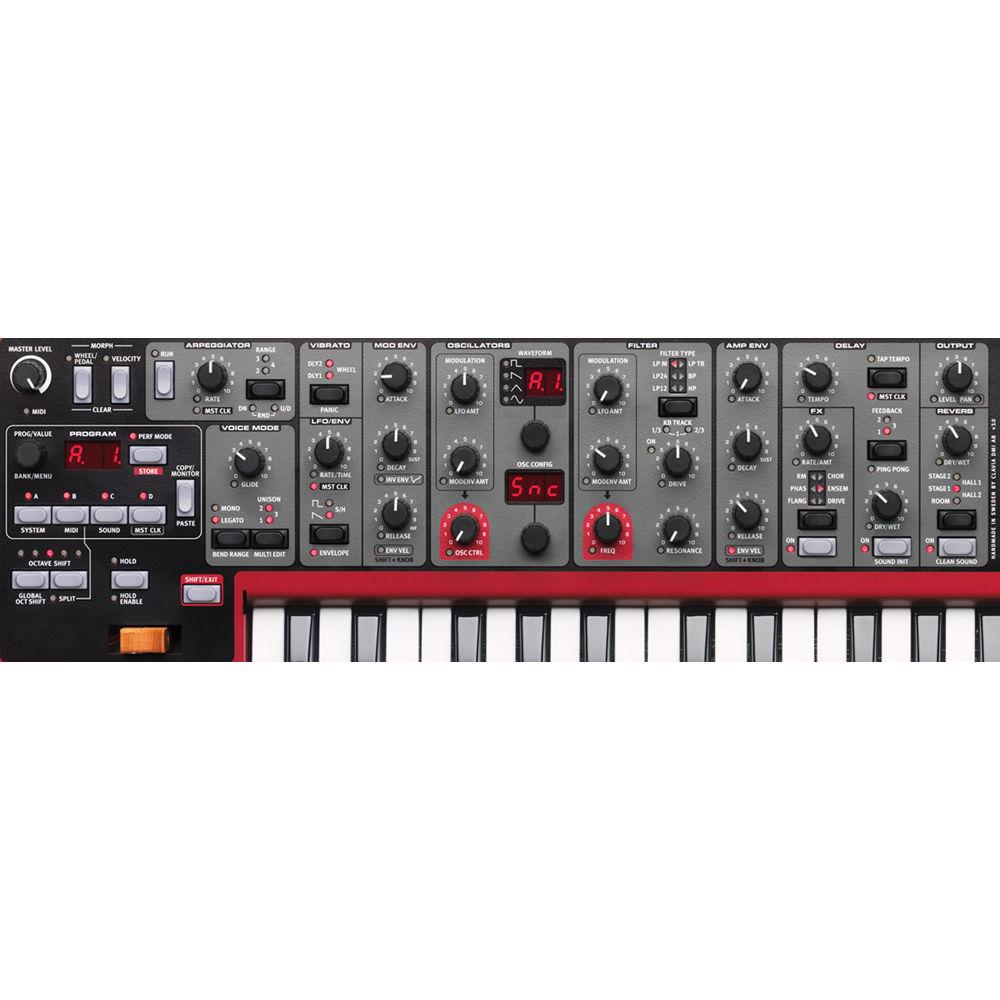

Product description The Lead A1 49-Key Analog Modeling Synthesizer from Nord features an analog modeling sound engine designed to provide virtual analog sounds as well as access to digital waveforms. It has a 49-key Fatar keybed and is capable of 24-voice polyphony and 4 simultaneous synth parts. Its interface is designed to provide simplified access to the synth engine's parameters, including its oscillator, filter, modulation, and effects sections. - Oscillator Section
- The Nord Lead A1 features their Wave Engine with oscillator configuration shortcuts utilizing two oscillators. Start with a single oscillator waveform (a choice of multiple Analog and Digital waveforms), select an Oscillator Configuration Shortcut - pitch, detune, shape, sync, FM, ring modulation, dual Osc or noise - and use the OSC Control knob to adjust the settings of the configuration.
The end result is high speed programming without the need for the usual complexity of routing and patching, and with the opportunity for ready experimentation - Filter Section

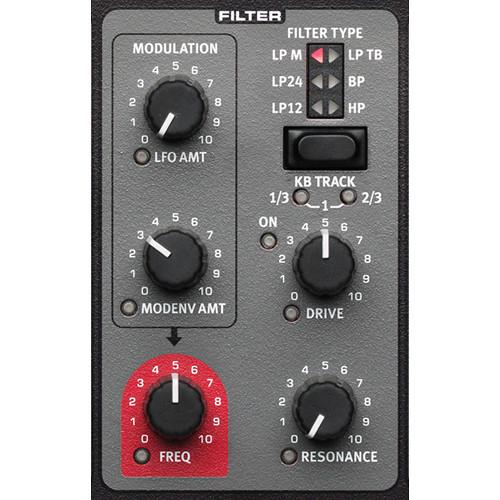

- The Lead A1's filter section features classic 12 and 24 dB low-pass, a high-pass and a band-pass filter, together with emulations of the diode and ladder filters from the Mini and the TB-303 synthesizers. The Lead A1's modeling of these filters capture the character and response of the originals, allowing flexible sound design
- Effects Section

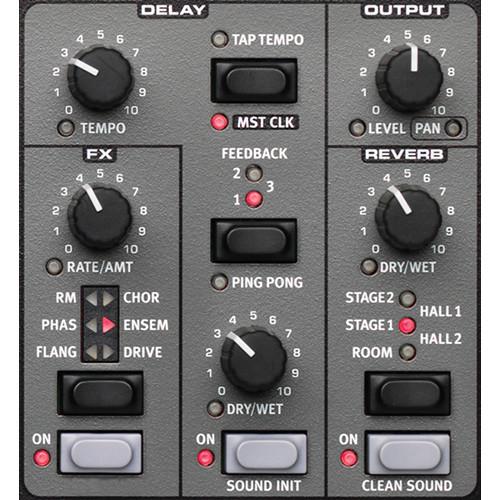

- The Lead A1's effects section features two analog models of an ensemble and chorus, modeled on specific vintage synths and adding analog feel. Alongside these, choose from ring modulation, phaser, flanger or drive per slot and in addition a separate delay and reverb for each slot
- Performance
-
- Mod Wheel and Velocity Morph:
The Morph function via mod wheel, velocity or pedal, allows you to control multiple parameters of the Lead A1 simultaneously. Morph can be used by just holding the Morph button and adjusting any desired knob - Master Clock:
The Master Clock function of the Lead A1 allows the LFO, arpeggiator and delay to be synchronized, either internally or slaved to external MIDI clock. A tap tempo button allows you to tap to the tempo of a drummer or to playback tracks - Arpeggiator:

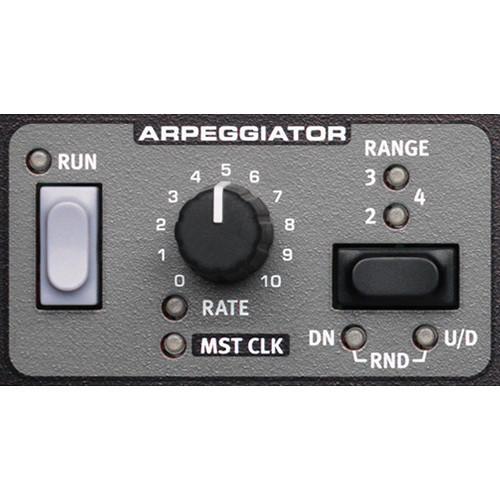

The Lead A1 features four separate arpeggiators with Up/Down and random modes and a 4-octave range. Any or all can be sync'd to the Lead A1's master clock - Splits and Layers:
Having four identical, equally powerful synthesizers at once opens layering possibilities. The Split-mode gives you two 2 slots on each side of the split. A flexible Hold functionality lets you latch and hold slots independently in the background while playing something else on top - Four Outputs:
The Lead A1 features four independent audio outputs with the ability to route each slot to a different output. Plus control of Pan via the front panel knob is a welcome addition in the Lead A1 - Sound Manager:
The Lead A1 includes the Nord Sound Manager software for OS X and Windows. Sound Manager is a dedicated librarian app which allows easy reorganizing, back-up and transfer of programs - MIDI Control:
The Lead A1 features the convenience of MIDI over USB for use with a sequencer and all of the Lead A1's knobs transmit MIDI Control data - The Hardware:
Like all Nord keyboards the Lead A1 is handmade in Nord's Stockholm factory. The Fatar 49-key keybed, all-metal chassis, and tactile knobs are designed for years of use UPC: 834035001202 In the Box Nord Lead A1 49-Key Analog Modeling Synthesizer CD-ROM with Nord Sound Manager Power Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nord Lead A1 49-Key Analog Modeling Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNord Lead A1 Specs | | | Keyboard | 49-key octave velocity sensitive keyboard with octave shift buttons (+/- 2 octaves)
Keyboard Split with 2 slots for the upper and lower section | | Controls | 1x Modulation wheel
1x Pitch stick (with no dead zone at zero crossing)
1x 1/4" (6.3 mm) pedal input for sustain pedal
1x 1/4" (6.3 mm) pedal input for expression pedal | | Pitch Bend Range | Programmable up to +/- octave | | User Interface | 3x LED displays
23x knobs
3x encoders
20x buttons for program and performance editing | | | | Waveform | Multiple Oscillator waveforms; traditional analog, extended analog, pulse waveforms, wavetable
OSC Configuration Knob Categories: pitch, detune, shape, sync, ring modulation, noise, dual OSC, FM | | | | Type | Multi-mode Filter:
12 dB (2-pole) low-pass,
24 dB (4-pole) low-pass and band pass, high pass

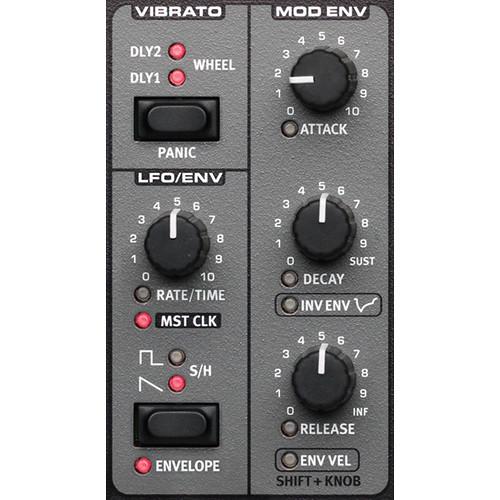

Ladder M and Ladder 303 characteristics | | Control | Cut off, resonance, envelope amount, LFO amount, drive | | Envelope | ADR/ASR | | Tracking Ability | Filter keyboard tracking can be set to off, 1/3, 2/3 or full | | Distortion | Filter Distortion: Adjustable | | | | LFO1 | Generates: triangle, square, sawtooth, inverted sawtooth or sample and hold waveforms
Routing: can be routed to filter frequency, pitch, shape and OSC mod
Sync: Can be synchronized to the Master Clock
Modes: can be switched to Env mode with three different characteristics and sample and hold is manually triggered by keyboard | | Arpeggiator | Range: 1 to 4 octaves
Modes: up, down, up/down, random, Poly
Sync: arpeggio rate can be synchronized to the Master Clock | | Envelope | ADR/ASR
Velocity control: on/off
Inverse Envelope: on/off | | | | Control | ADR/ASR envelope
Gain control
Individual Pan Control: per program
Velocity Control: on/off | | | | Voices | Poly, legato with portamento, Mono, True Unison 1, 2 & 3 | | Layering | 4x program slots for layering possibilities | | | | Effects | Types: flanger, phaser, ring modulation, chorus, ensemble and drive | | Delay | Types/Controls: Tap tempo, four stages of feedback, ping-pong, dry/wet mix
Sync: delay speed can be synchronized to the Master Clock | | Reverb | Types: room, stage 1, stage 2, hall 1, hall 2 | | | | Programs | Single Sounds: 8x 50 (400) locations

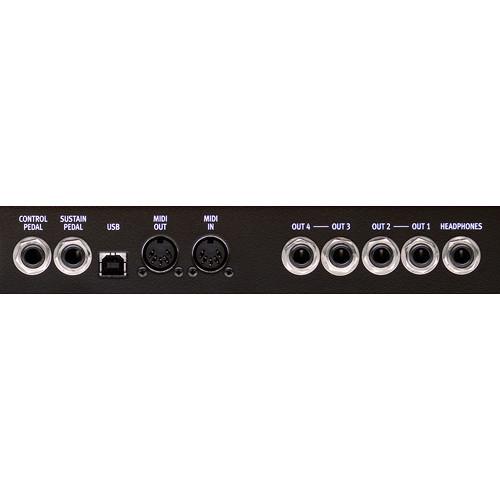

Performances (Multiple Sounds): 4x 50 (200) locations | | | | Output | 4x unbalanced 1/4" (6.3 mm) (each slot can be assigned to its own output)
1x 1/4" (6.3 mm) stereo headphone output
24-bit DACs | | | | Type | USB MIDI
5-pin DIN in
5-pin DIN out
THRU: soft | | Control | All control knobs and switches send and receive control change messages
MIDI Dumps: System exclusive or all programs | | Sync | Master Clock will sync to incoming MIDI clock | | | | Dimensions (L x W x D) | 34.0 x 3.7 x 10.7 (864 x 94 x 272 mm) | | Weight | 10.7 lb (4.85 kg) | | | | Package Weight | 17.3 lb | | Box Dimensions (LxWxH) | 39.3 x 15.3 x 8.0" |
