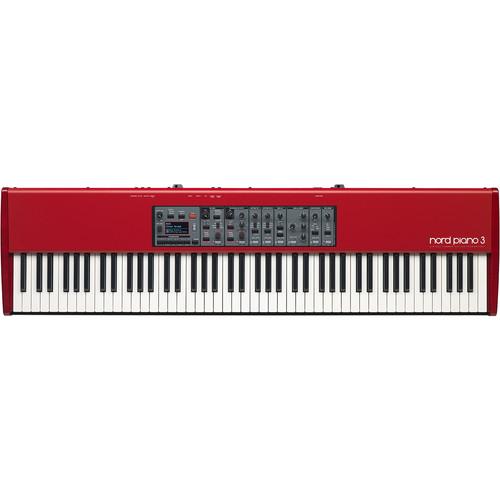

Product description The Nord Piano 3 is an 88-key digital piano featuring improved keyboard technology, improved grand-weighted action, and expanded memory for the Nord Piano Library. The instrument's Virtual Hammer Action Technology simulates the hammer movements in a grand piano for an authentic feel and dynamic response, and the Triple Sensor keybed allows key movements to be determined with precision for expressive dynamic performance at any velocity level. Four dynamic curves are available.
1 GB of memory is dedicated to the sounds in the factory bank, which includes six grand pianos, five upright pianos, eleven electric pianos, a clavinet, and a harpsichord. Sounds can be easily replaced using the Nord Sound Manager for Mac and Windows with drag and drop functionality. The piano sounds feature string resonance, which mimics the interplay of piano strings resonating at their fundamental or harmonic frequencies when other notes are struck. The Piano 3 keyboard also offers Nord's Soft Release which affects the release phase of the tone, for when a gentler or more legato character is desired.

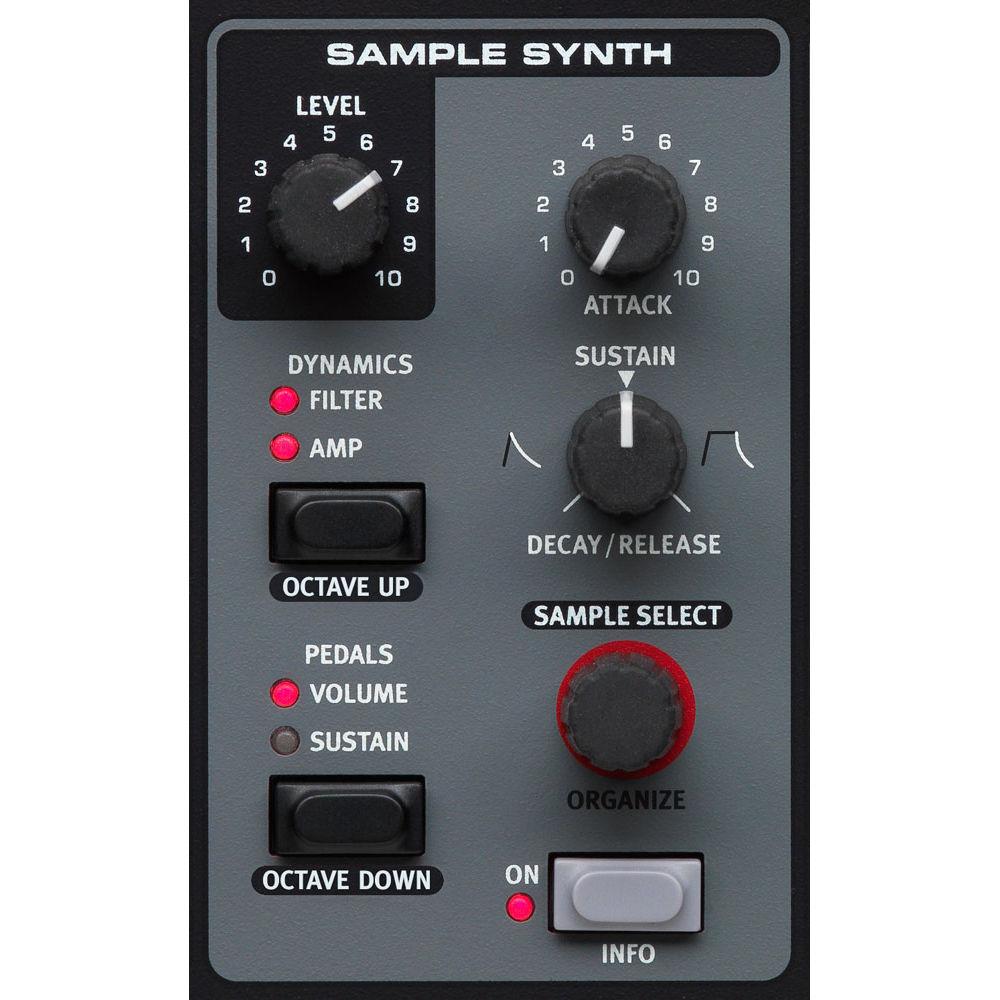

The included Nord Triple Pedal features soft and sostenuto pedals in addition to a Dynamic Sustain Pedal enabling the use of half-pedaling and "release and catch" techniques. Additionally, the Pedal Noise setting recreates the mechanical sounds of lifting and releasing the damper mechanism on a real piano. A Sample Synth section provides 256 MB of memory dedicated to sampled sounds from a wide range of instruments, including the Mellotron and Chamberlin. Dedicated knobs adjust Attack, Decay/Release, Dynamic controls, and the volume of the selected sound.

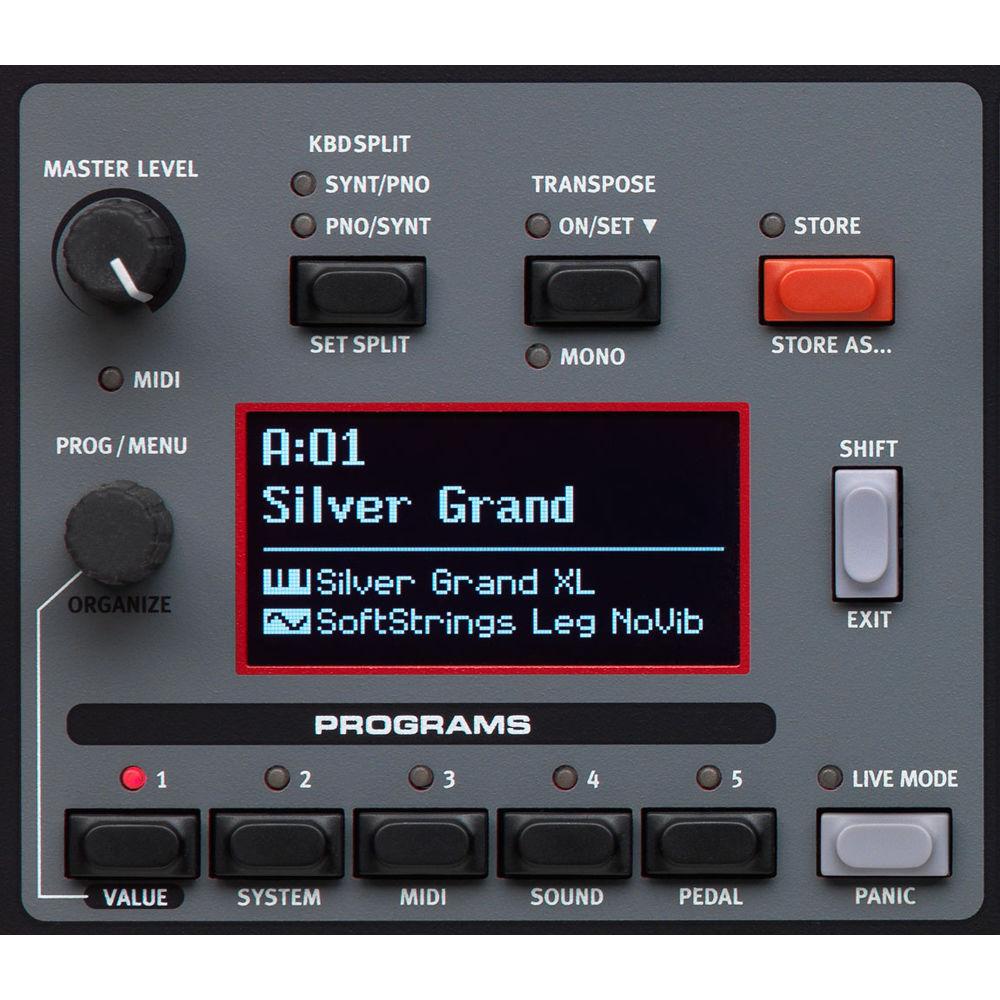

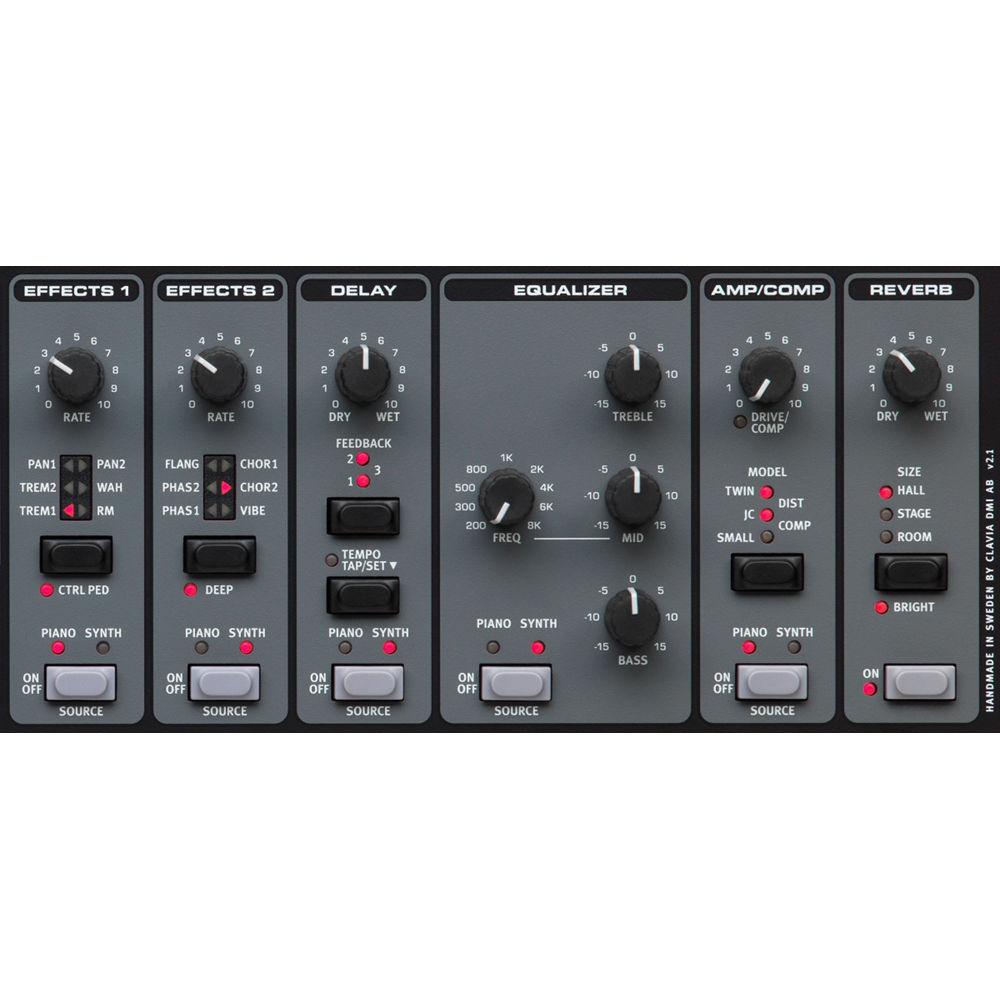

A comprehensive dual effects section is available with the stereo effects having extensive editing capabilities. Additionally, the instrument has dedicated knobs and buttons for all the vital functions required in a live performance. Transposing, setting up a split point, or creating a layered sound can be accomplished in seconds, while an OLED display provides an excellent overview when selecting or editing sounds, effects, and programs on stage. A monitor input allows for adding external audio from an MP3 or CD player for jamming or practicing. - General
-
- 88-note Triple Sensor keybed with improved grand weighted action
- Nord Virtual Hammer Action Technology for greatly improved key response
- OLED display for better overview
- 1 GB memory for Nord Piano Library
- 256 MB for Nord Sample Library
- Layer and split functionality
- Nord Triple Pedal
- Piano Section
-
- Four dynamic curves
- Dynamic pedal noise with Nord Triple Pedal
- Advanced string resonance (2nd Generation)
- Soft release
- Sample Synth
-
- Dedicated Sample Synth section with Attack, Decay/Release and Dynamic controls
- Effects
-
- All effects in stereo
- Tube overdrive simulation
- Vibe effect
- Separate reverb/delay effects
- Tremolo, pan, ring-mod, and wah-wah can be controlled with a control pedal
In the Box Nord Piano 3 Digital Piano AC Power Cable Nord Triple Pedal 2 x DVD-ROM Libraries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nord Piano 3 Digital Piano in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNord NPIANO3-88 Specs | Global | 88-key Triple Sensor keybed with Virtual Hammer Action Technology
4 banks with 50 programs (200 locations)
Organize functionality for programs
Live Mode: 5 Live programs
Global Transpose: ±6 semitones
Program Transpose: ± 6 semitones
Fine-tune: ± 50 Cents
Keyboard Touch: 4 Velocity response curves
Split functionality with selectable split point and LED indication
Layer functionality
Mono output option
Dynamic Sustain Pedal action with the included Nord Triple Pedal
USB-MIDI

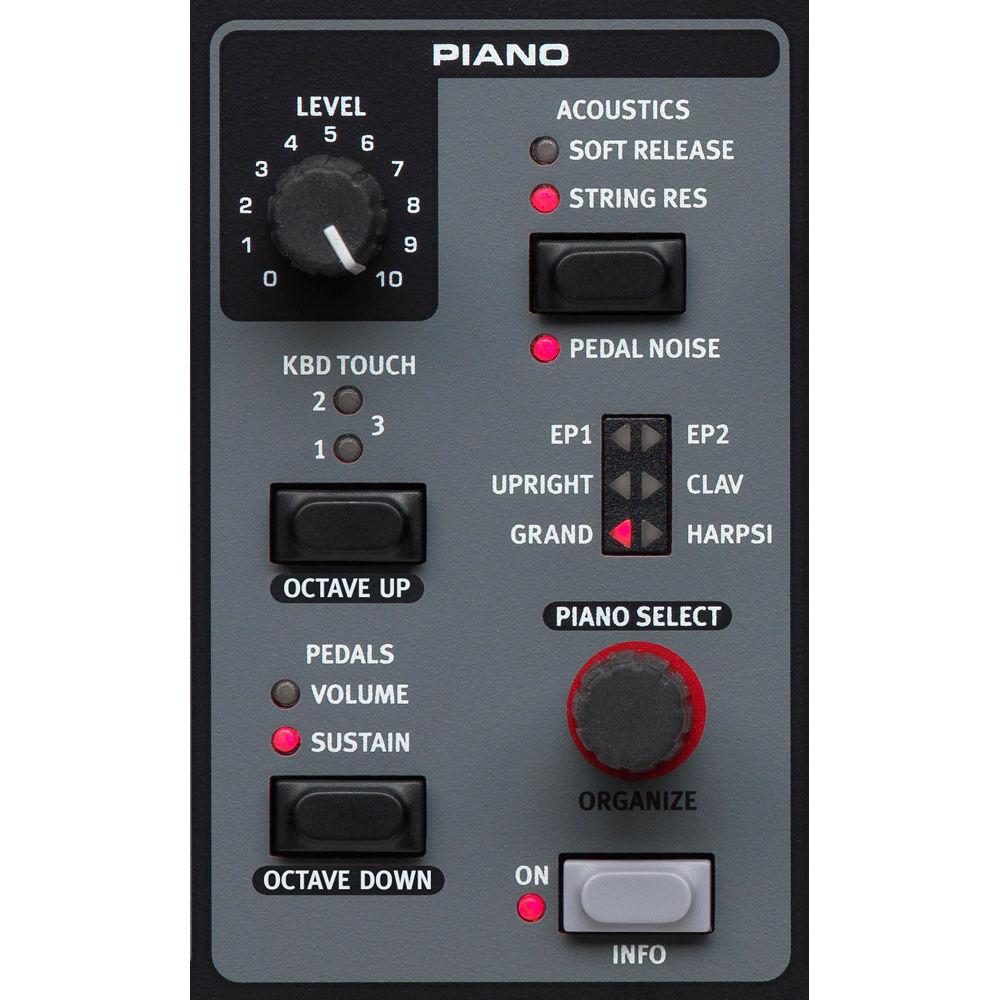

OLED display | | Piano Section | 6 Types: Grand, Upright, Electric Piano 1, Electric Piano 2, Clavinet, and Harpsichord
Each category can contain up to 9 different models
Organize functionality for piano sounds
40/60 Voices polyphony (stereo/mono pianos)
Advanced String Resonance (Generation 2, adjustable amount)
Selectable Soft Release for Grand, Upright, Electric Pianos and Harpsichord
Selectable Pedal Noise for Grand, Upright and Electric Pianos 1 (adjustable amount)
Transpose: -1/+1 Octave | | Sample Synth | 15 Voices polyphony
Organize functionality for samples
Amplifier envelope with attack and decay/release
Selectable velocity sensitive low-pass filter and dynamic range
Octave Transpose: -1/+3
Sustenuto pedal can be set as sustain or latch pedal for the sample synth section
Volume controllable with volume pedal (available separately) | | Memory | 1 GB (approximately) dedicated to the Nord Piano Library
256 MB (approximately) dedicated to the Nord Sample Library 2.0 | | Effects | Effect 1
Pan, tremolo, wah, and ring modulator
3 selectable depths for the pan and tremolo, rate controlled with the Effect 1 rate knob
Tremolo, pan, ring-mod, and wah can be controlled with control pedal
Effect 2
Phaser 1, phaser 2, flanger, chorus 1, chorus 2, and vibe
2 selectable depths for each effect
Amp Simulations, Compressor and EQ
Compressor/amp: 3 amp/speaker simulations, tube overdrive
Drive/compression amount controlled with the drive knob
3-band EQ, with sweepable mid, +/- 15 dB gain/attenuation
Master Effects
Dedicated reverb with room, stage and hall algorithms, each with an additional Bright mode
Dedicated delay effect - rate, amount and tap-tempo function | | Connections | 1 x 1/8" / 3.5 mm TRS stereo mini monitor input
1 x 1/4" / 6.3 mm TS piano pedal input
1 x 1/4" / 6.3 mm TRS expression pedal input2 x 1/4" / 6.3 mm TS audio output, phone type
1 x 1/4" / 6.3 mm TRS headphone output, phone type
2 x 5-pin DIN MIDI I/O
1 x USB Type B (for sound transfer and USB-MIDI)
1 x IEC C14 Power | | Dimensions (L x W x H) | Piano: 50.7 x 13.4 x 4.8" / 1287 x 340 x 121 mm
Pedal: 10.4 x 2.8 x 8.8" / 264 x 70 x 224 mm | | Weight | Piano: 40.3 lb / 18.2 kg
Pedal: 4.4 lb / 2 kg |
