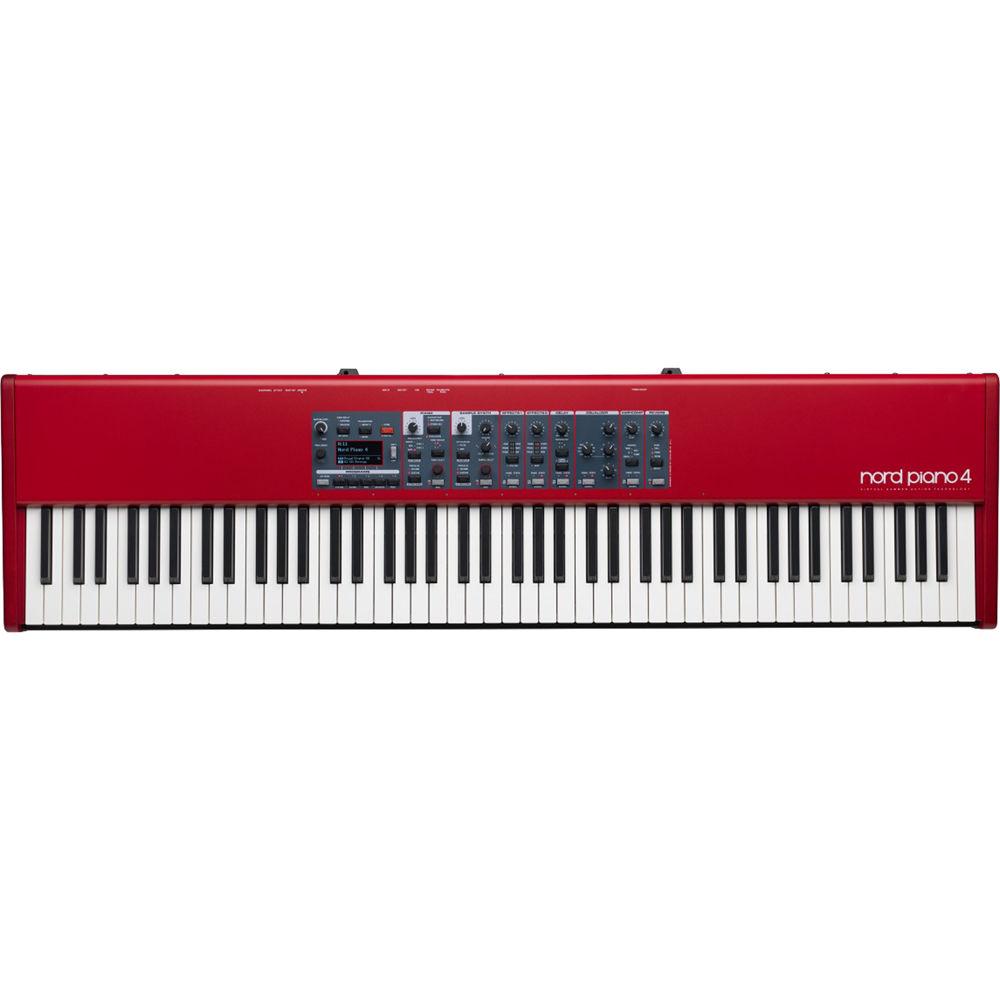

Product description The Piano 4 Digital Piano with Virtual Hammer-Action Keyboard from Nord is the forth generation of their award-winning Piano series that combines expanded voice polyphony, a premium Triple Sensor keybed, and Nord's acclaimed 88-key digital piano featuring a keyboard with Virtual Hammer Action Technology, improved grand weighted action, and expanded memory for the Nord Piano Library. The Nord Piano 4 also includes new performance features like Seamless Transitions, dedicated Piano Filters, 120-Voice Piano Polyphony, and Split-Point Crossfades delivering a live focused keyboard with exceptional piano feel.
The 1GB of memory is dedicated to the Nord Piano Library memory and the sounds in the factory bank, which include six grand pianos, five upright pianos, eleven electric pianos, a clavinet, and a harpsichord. Sounds can be easily replaced using the Nord Sound Manager for Mac and Windows with drag-and-drop functionality. The piano sounds feature string resonance, which mimics the interplay of piano strings resonating at their fundamental or harmonic frequencies when other notes are struck. The Piano 3 keyboard also offers Nord's Soft Release, which affects the release phase of the tone, for when a gentler or more legato character is desired.
The included Nord Triple Pedal features soft and sostenuto pedals in addition to a Dynamic Sustain Pedal enabling the use of half-pedaling and catch-and-release techniques. Additionally, the Pedal Noise setting recreates the mechanical sounds of lifting and releasing the damper mechanism on a real piano. A Sample Synth section provides 256 MB of memory dedicated to sampled sounds from a wide range of instruments, including the Mellotron and the Chamberlin. Dedicated knobs adjust Attack, Decay/Release, Dynamic controls, and the volume of the selected sound.

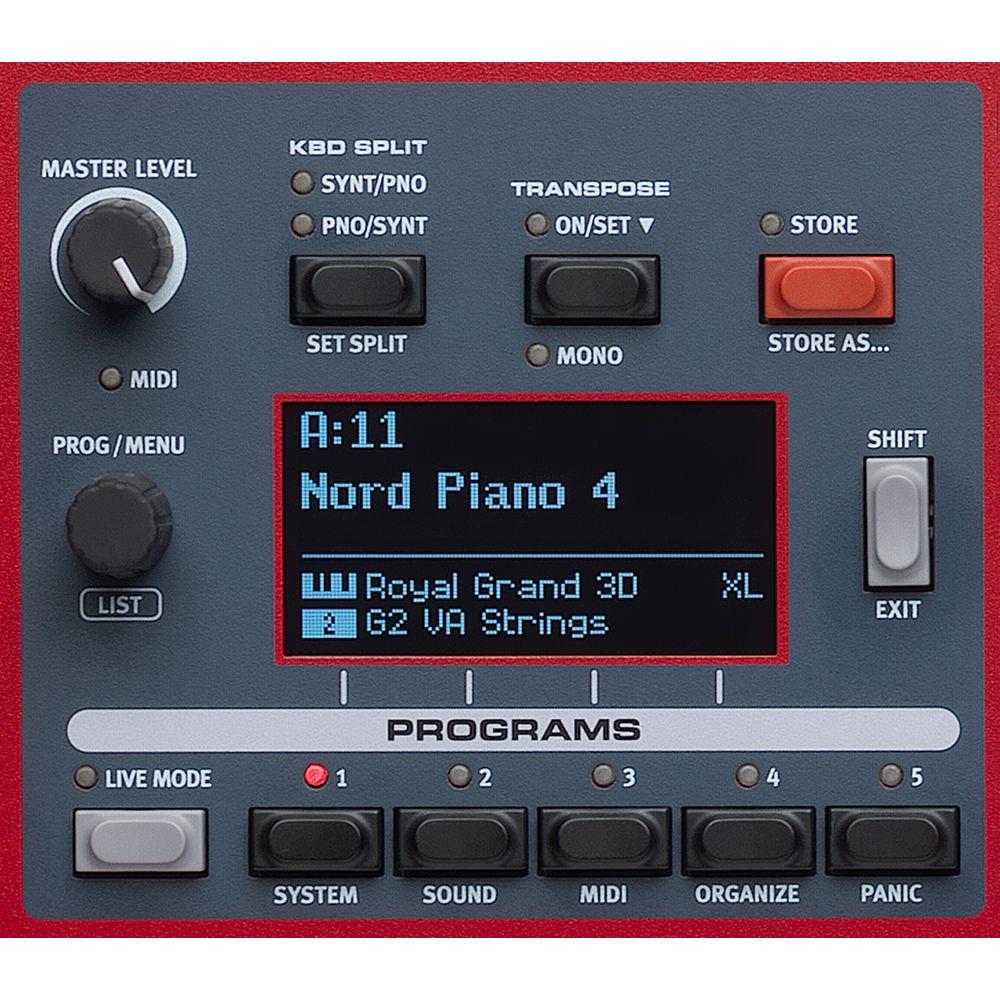

A comprehensive dual effects section is available with the stereo effects having extensive editing capabilities. Additionally, the instrument has dedicated knobs and buttons for all the vital functions required in a live performance. Transposing, setting up a split point, or creating a layered sound can be accomplished in seconds, while an OLED display provides an excellent overview when selecting or editing sounds, effects, and programs onstage. A monitor input allows for adding external audio from an MP3 or CD player for jamming or practicing. - General
-
- 88-note Triple Sensor keybed with improved grand weighted action
- Nord Virtual Hammer Action Technology for greatly improved key response
- Seamless transitions
- OLED display for better overview
- 1GB memory for Nord Piano Library
- 256 MB for Nord Sample Library
- Layer and split functionality with split-point crossfades
- Enhanced organize mode
- Numeric pad for direct program access
- Nord Triple Pedal
- Piano Section
-
- Greatly expanded Polyphony (120 voices)
- Creative piano filters
- 1GB memory for Nord piano library
- Four dynamic curves
- Dynamic pedal noise with Nord Triple Pedal
- Advanced String Resonance (2nd generation)
- Soft release
- Sample Synth
-
- Greatly expanded Polyphony
- 512 MB memory for Nord sample library 3.0
- Dedicated Sample Synth section with Attack, Decay/Release, and dynamic controls
- Effects
-
- High quality stereo effects modeled after classic stomp boxes
- Reverb with Bright Mode
- Tube overdrive simulation
- Vibe effect
- Separate reverb/delay effects
- Tremolo, pan, ring-mod, and wah-wah can be controlled with a control pedal
UPC: 834035001424 In the Box Nord Piano 4 Digital Piano with Virtual Hammer Action Keyboard AC Power Cable Nord Triple Pedal DVD-ROM Piano Library Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nord Piano 4 Digital Piano with Virtual Hammer Action Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Nord Piano 4 Digital Piano with Virtual Hammer Action Keyboard can be downloaded in PDF format at the link stated below.
Technical parametersNord NPIANO4-88 Specs | Global | OLED Display
Seamless Transitions
Split Point Crossfades
16 Banks with 25 Programs, 400 Locations
Organize Functionality for Programs
Live Mode - 5 Live Programs
Global Transpose: +/- 6 Semitones
Program Transpose: +/- 6 Semitones
Fine-Tune: +/- 50 Cents
Keyboard Touch: 3 Velocity Response Curves
Triple Sensor Keybed with Virtual Hammer Action Technology
Split Functionality with Selectable Split Point and LED Indication
Layer Functionality
Mono Output Option
Dynamic Sustain Pedal Action with the Included Nord Triple Pedal
USB-MIDI

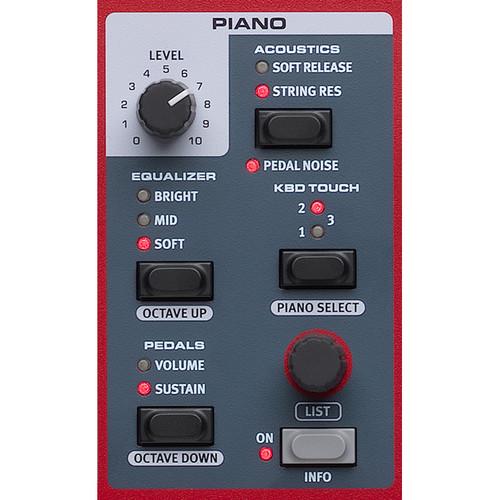

Free OS Updates | | Piano Section | 6 Types: Grand, Upright, Electric Pianos, Digital, Layer, Clavinet, and Harpsichord
Each Category can Contain Up to 20 Different Models
120 Voice Polyphony (Stereo/Mono Pianos)
Piano Filters (Soft, Mid, Bright)
Advanced String Resonance (Generation 2): Adjustable Amount
Selectable Soft Release for Grand, Upright, Electric Pianos, and Harpsichord
Selectable Pedal Noise for Grand, Upright, and Electric Pianos 1: Adjustable Amount
Octave transpose: -1/+1 (-6/+6 in Split Mode, Depending on Split Position) | | Sample Synth | 30+ Voice Polyphony
Amp Envelope with Attack and Decay/Release
Selectable Velocity Sensitive Low-Pass Filter and Dynamic Range
Octave Transpose: -1/+1 (-6/+6 in Split Mode, Depending on Split Position)
Volume Controllable with Volume Pedal (Not Included) | | Memory | 1 GB (Approximately) Dedicated to the Nord Piano Library

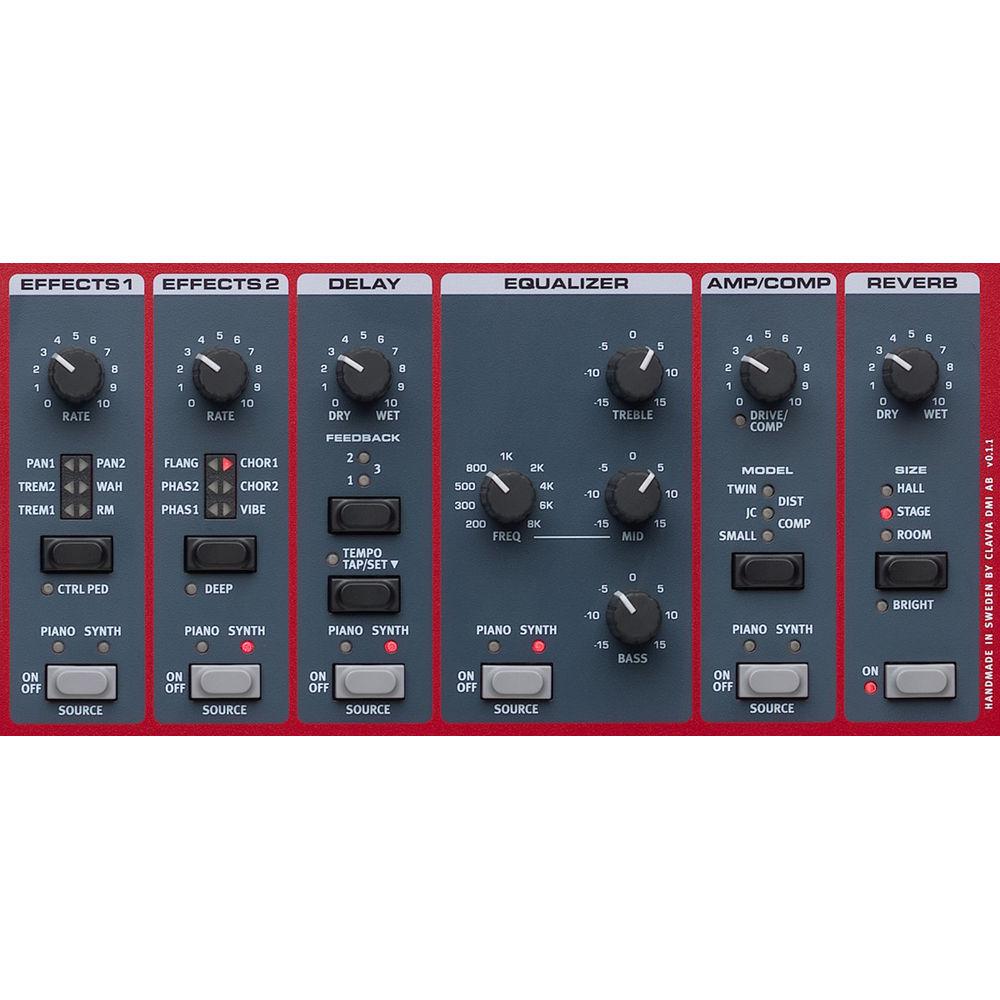

512 MB (Approximately) Dedicated to the Nord Sample Library 3.0 | | Effects | Effect 1
Pan, Tremolo, Wah, and Ring Modulator
Three Selectable Depths for the Pan and Tremolo, Rate Controlled with the Effect 1 Rate Knob
Tremolo, Pan, Ring-Mod, and Wah can be Controlled with Control Pedal
Effect 2
Phaser 1, Phaser 2, Flanger, Chorus 1, Chorus 2 and Vibe
Two Selectable Depths for Each EffectAmp Simulations, Compressor, and EQ
Comp/Amp: Three Amp/Speaker Simulations, Tube Overdrive
Drive/Compression Amount Controlled with the Drive Knob
Three-Band EQ with Sweepable Mid. +/-15 dB Gain/AttenuationMaster Effects
Dedicated Reverb with Room, Stage, and Hall Algorithms, Each with an Additional Bright Mode

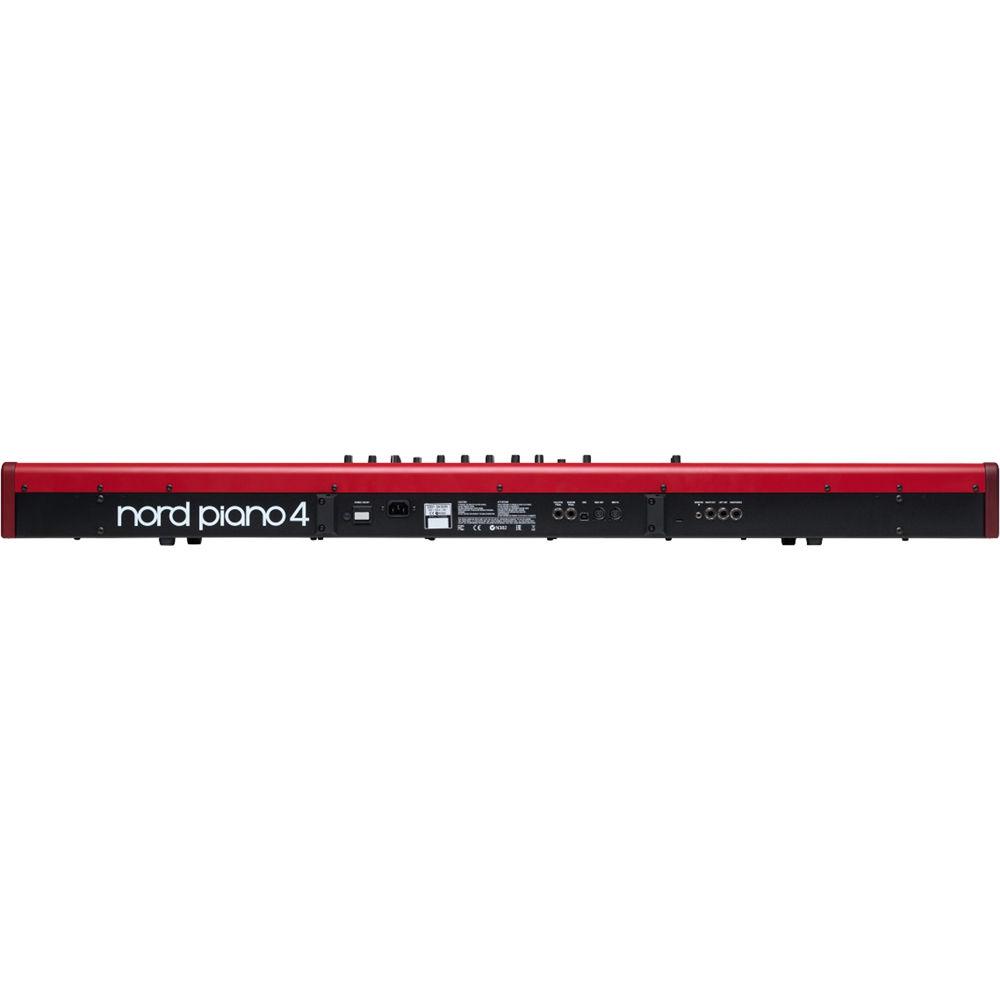

Dedicated Delay Effect: Rate, Amount, and Tap-Tempo Function | | Connections | 2 x Audio Outputs L & R: 1/4" / 6.3 mm Jacks, Unbalanced
1 x Monitor Input: 1/8" / 3.5 mm Stereo Jack
1 x Headphone Output: 1/4" / 6.3 mm Stereo Jack
1 x Piano pedal Input: 1/4" / 6.3 mm Jack. Use the Included Nord Triple Pedal or a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
1 x Volume Pedal Input: 1/4" / 6.3 mm TRS Stereo Jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5, etc.
MIDI In, MIDI Out: 5-Pin DIN Connectors
USB Type-B Connector: For Transferring Sounds and USB-MIDI
IEC C14 Power Connector | | Dimensions (L x W x H) | Piano: 50.7 x 13.4 x 4.8" / 128.7 x 34.0 x 12.1 cm
Pedal: 10.4 x 2.8 x 8.8" / 26.4 x 7.0 x 22.4 cm | | Weight | Piano: 40.1 lb / 18.5 kg
Pedal: 4.4 lb / 2 kg | | | | Package Weight | 55.7 lb | | Box Dimensions (LxWxH) | 59.25 x 20.0 x 10.25" |
