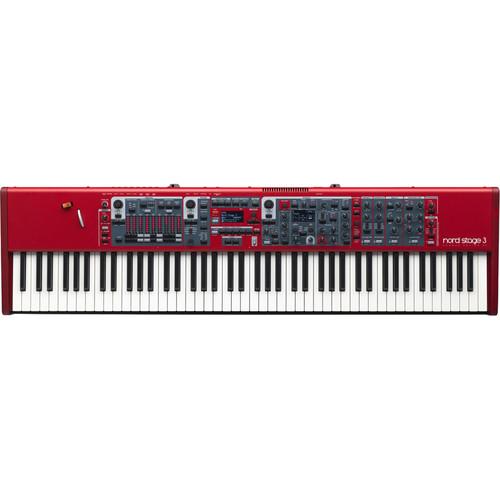

Product description The Stage 3 88 88-Note Weighted Hammer-Action Keyboard from Nord is the fifth generation of their Stage series performance keyboard and features two clear OLED displays, seamless transitions when changing programs/sounds, extended split functionality with optional crossfade, and the addition of the song list mode. The keyboard is designed to provide high-quality organs, pianos, and synthesizer sounds, all of which can be used simultaneously, but also offers the ability to load your own samples or load additional sounds from Nord's libraries.Some of the main features of the piano section are a doubled memory (2GB) for the piano library, expanded polyphony (120 voices), and creative filter presets. The A1 synth engine is equipped with sample playback, a dedicated OLED display for oscillator functions, expanded memory (480MB) for the sample library, and a Super Wave category (S-wave). Additional features of the organ section are a Nord C2D organ engine, two new pipe organ models, and a Model 122 Vintage Rotary Speaker.Furthermore, the Nord Stage 3 effects section features a new filter effect, extended morphable parameters, and enhanced delay effects with a separate reverb and compressor for each slot. Also, the effects sections have a wide range of instantly tweakable high-quality effects, all of which are modeled after classic stompboxes and are available for each slot. Finally, a new Song Mode lets you easily organize a group of programs for each specific song in the list. Each song can consist of up to 5 different programs, which are freely assignable from your existing programs. - Performance/General
-
- OLED displays for Program and Synth section
- Seamless transitions when changing programs
- Extended split functionality with optional crossfade
- Song list mode
- Extended morph destinations
- Piano Section
-
- Doubled memory (2GB) for the Nord Piano Library
- Expanded polyphony (120 voices)
- Creative filter presets
- Layer category
- Synth Section
-
- Nord Lead A1 Synth Engine with sample playback
- Dedicated OLED display for oscillator functions
- Expanded memory (480MB) for the Nord Sample Library
- Extended polyphony
- Super Wave category (S-wave)
- Organ Section
-
- Nord C2D organ engine
- 2 new pipe organ models
- Model 122 Vintage Rotary Speaker - available per slot
- Effects
-
- Improved delay with added feedback filters and analog mode
- Filter mode with resonance
- Separate compressor per slot with Amount and Fast mode
- Separate reverb per slot with Bright mode
UPC: 834035001356 In the Box Nord Stage 3 88 88-Note Weighted Hammer-Action Keyboard Dust Cover Sustain Pedal Power Cord USB Cord 2 x Nord Sample and Piano DVDs Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nord Stage 3 88 88-Note Weighted Hammer-Action Keyboard in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNord Stage 3 Specs | General | Master level control
Wooden pitch stick
Modulation wheel

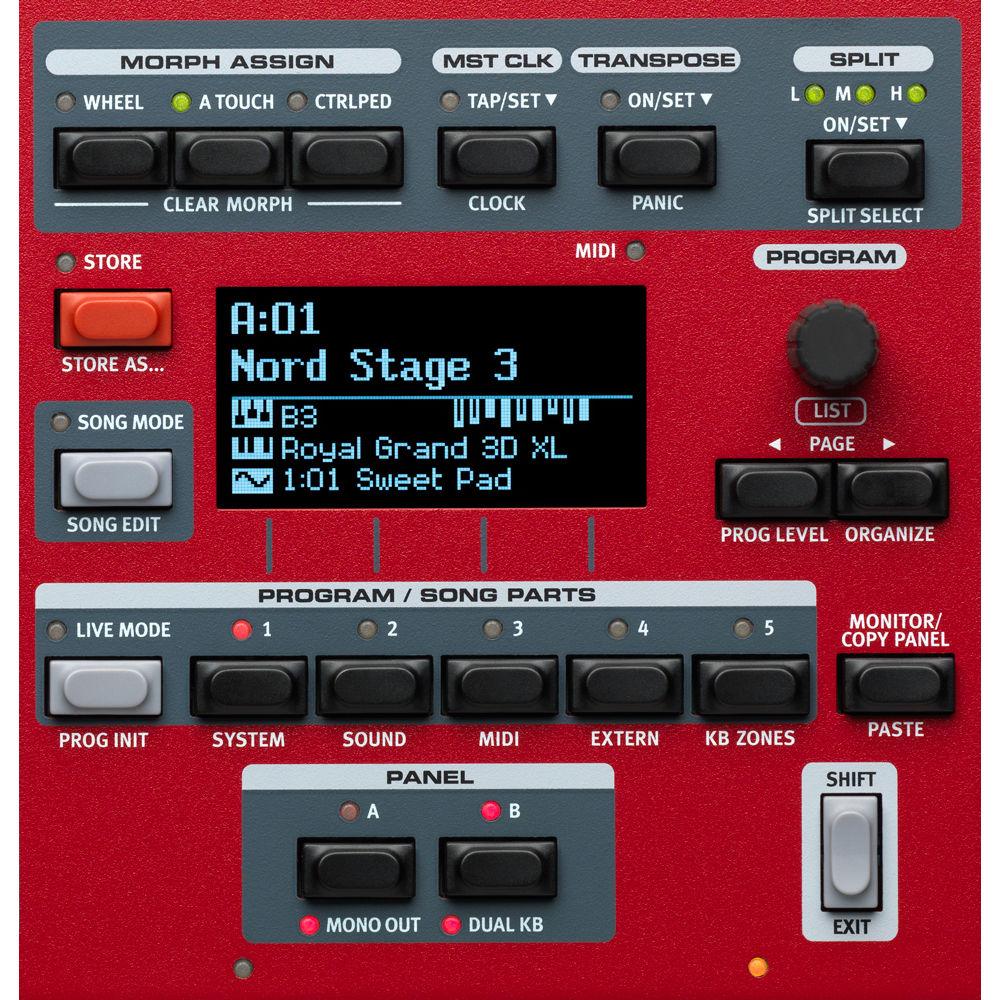

400 programs - 8 banks with 10 pages each. Each page has 5 program locations
Song mode - 8 banks with 50 songs, 5 programs per song
5 live buffers
2 individual slot setups
3 morph sources (modulation wheel, control pedal, aftertouch)
Global mono output
Programmable transpose (+/- 6 semitones)
Master clock functionality with manual, external, and tap-tempo rate control
Internal and MIDI clock source
MIDI over USB functionality
Level control
Aftertouch
Up to 3 split points (4 keyboard zones) with visual LED indication between zones
3 Split Point Width (Crossfade) Options: Lrg, Sml, or Off

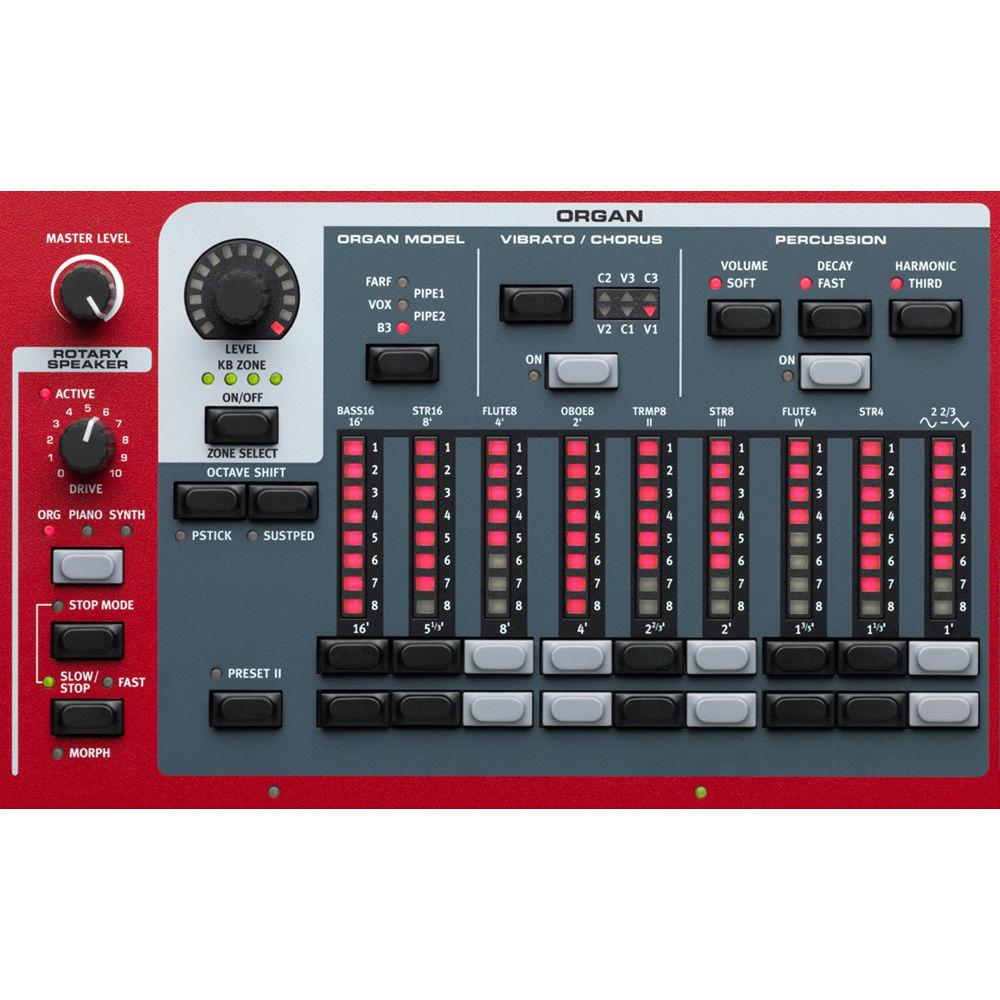

Keyboard zones editor mode | | Organ Section | Nord C2D B3 Tone Wheel Organ simulation
Vox Continental and Farfisa models
2 digital pipe organ models
9 digitally controlled drawbars
Percussion controls
Vibrato/chorus control
Two drawbar presets per slot

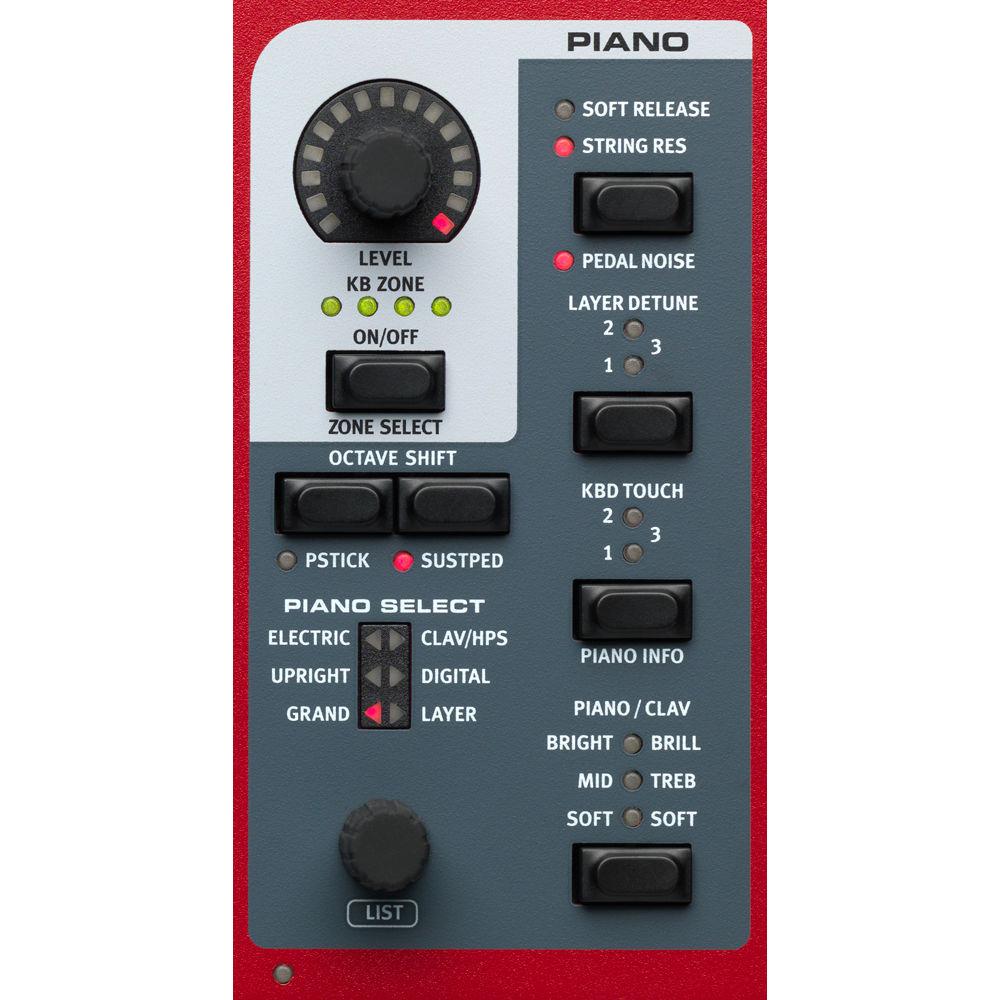

2-part multitimbral (2 manuals) | | Piano Section | 2 GB memory for piano sounds
All sounds can be replaced using Nord Sound Manager (Mac/Windows)
120-voice polyphony
Categories: Grand, Upright, Electric, Digital, Layer, and Clav/Harpsichord
4 selectable velocity curves
Dedicated piano filters
Clavinet EQ controls
String resonance (generation 2) on acoustic grand pianos and uprights
Selectable soft piano release
Pedal noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
Layer (slot) detune functionality

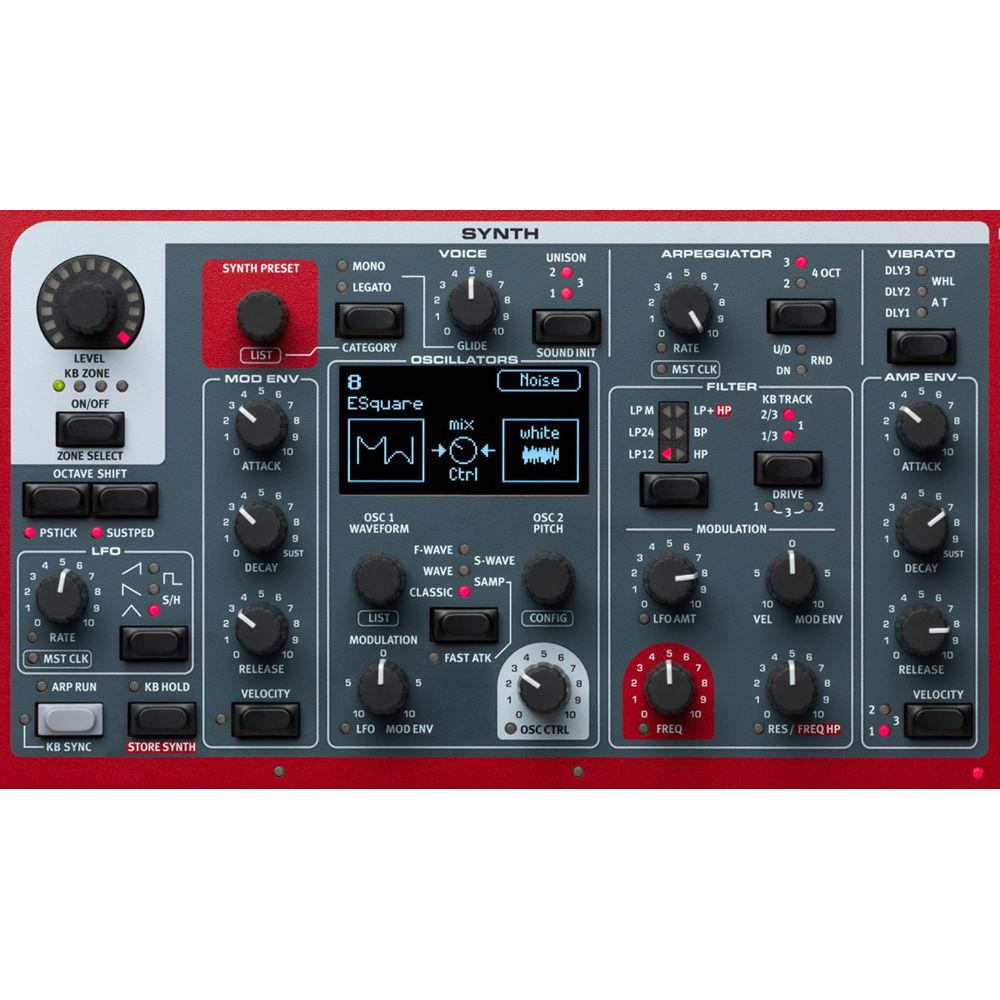

2-part multitimbral | | Synth Section | Nord Lead A1 synth engine with sample playback
Dedicated OLED display for oscillator section
480 MB memory for Nord Sample Library
All samples can be replaced using Nord Sound Manager (Mac/Windows)
34-voice polyphony
Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave), and Sample
Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM*, and Ring Mod
* indicates that the configuration is not available for sample/Super Wave
Classic Transistor Ladder Filter (LP, M): 12 & 24 dB low-pass, high-pass, band-pass, and combined low-pass/band-pass (LP+BP) filter
Filter Drive: Off, 1, 2, and 3
Filter Tracking: Off, 1/3, 2/3, and Full
3 unison modes
Amplitude envelope (attack, decay, sustain) with velocity control
Modulation envelope (attack, decay, sustain) with velocity control
LFO with 5 Waveforms/Modes: Square, Triangle, Ramp Dn, Ramp Up, and Sample & Hold
400 (8x50) synth preset locations with synth preset categories
Arpeggiator (up, down, up-down, and random). Range: 1, 2, 3, or 4 octaves
LFO and arpeggiator synchronizable to master clock

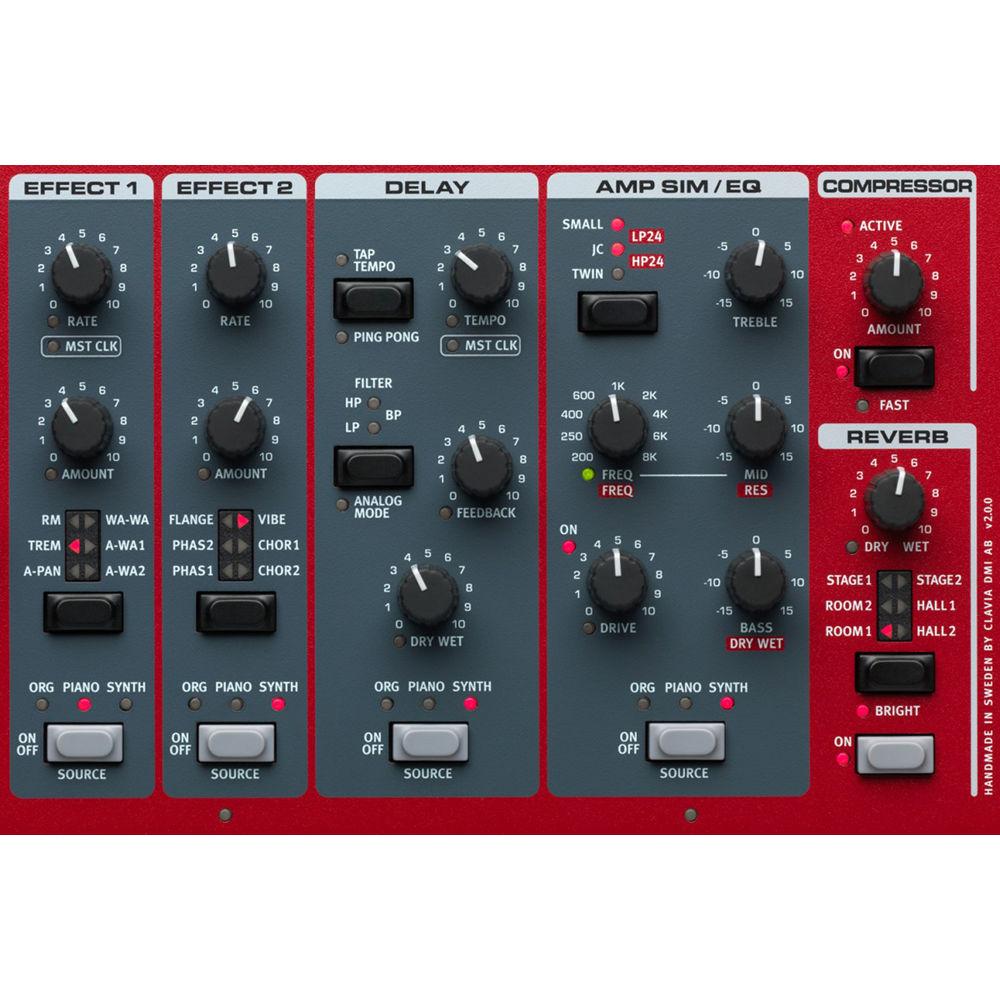

2-part multitimbral | | Effects | Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
Delay with tempo, feedback, and mix (dry/wet) controls, ping pong (stereo taps), tap-tempo, feedback filter (HP/LP/BP) and panel-selectable analog mode
3 types of speaker simulations (JC, Twin, and Small)
Filter mode (HP24/LP24) with cut-off, resonance, and mix controls
Tube amp simulation with adjustable overdrive
3-band EQ with sweepable mid
EQ ranges of 100 Hz, 200 Hz to 8 kHz, and 4 kHz
Rotary Speaker: Selectable speed (stop, slow, and fast), and separate overdrive
Extended Morphable Parameters: Filter resonance, reverb (dry/wet), delay feedback, and amp drive
Effect rates/tempo can be synchronized to the master clock
Compressor with Fast mode
Reverb: 6 algorithms with Bright mode | | Keyboard | Nord Stage 3 Compact: 73-key, velocity-sensitive, semi-weighted waterfall keyboard

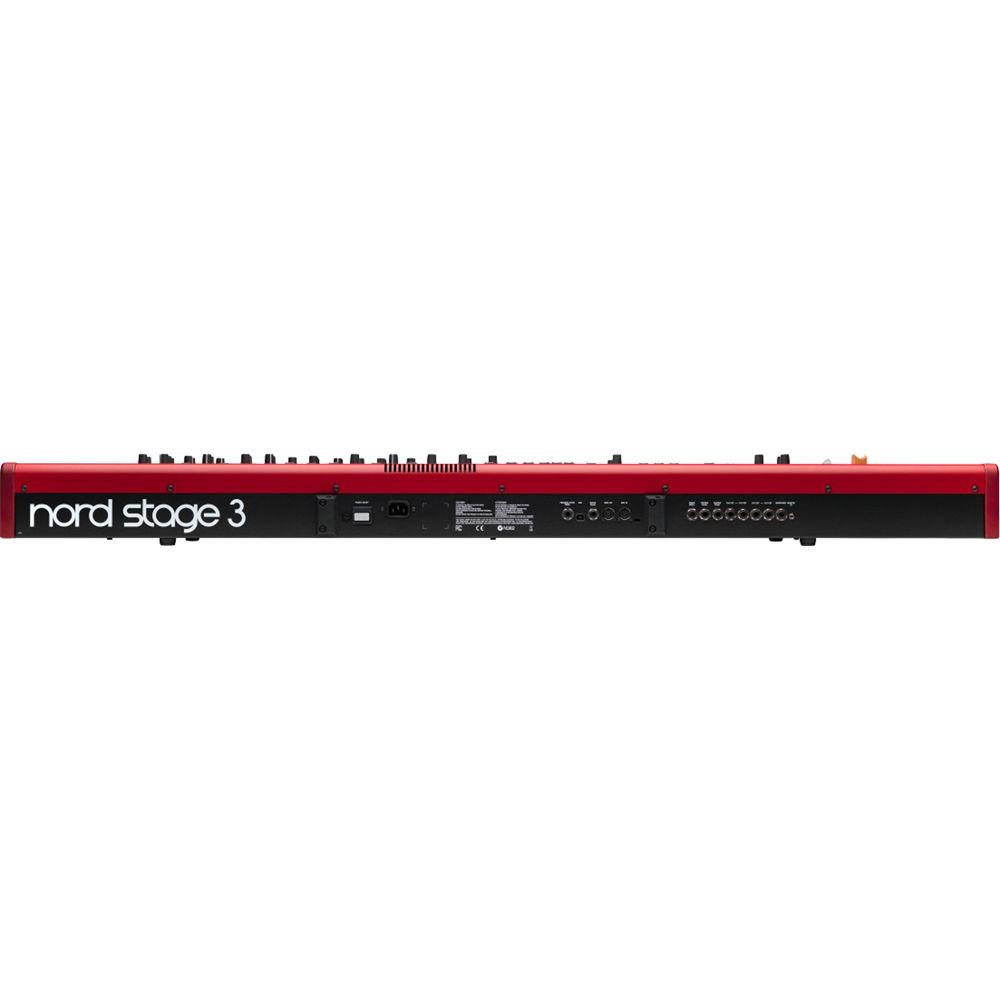

Range: E-E | | Connections | 4 x 1/4" (6.3 mm) TS audio out, unbalanced
1 x 1/4" (6.3 mm) TRS headphone out
1 x 1/8" TRS stereo mini monitor input
1 x 1/4" TS (6.3 mm) sustain pedal input. Use a momentary pedal (Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25, and more)
Sustain input compatible with Nord Triple Pedal (sold separately)
1 x rotor pedal - 1/4" (6.3 mm) jack. Use a momentary pedal or a switch-type pedal
1 x Organ swell pedal - 1/4" (6.3 mm) TRS stereo jack. Use a control/expression pedal (Yamaha FC-7, Roland EV-5, and more)
1 x control pedal - 1/4" (6.3 mm) TRS stereo jack. Use a control/expression pedal (Yamaha FC-7, Roland EV-5, and more)
1 x program change pedal input - 1/4" (6.3 mm) jack. Use a momentary two-button pedal (Boss FS-6, Boss FS-7, and more)
1 x MIDI In 5-pin DIN connectors
1 x MIDI Out 5-pin DIN connectors
USB Type-B connector for USB MIDI, software update, and sound transfer
Power cord with IEC C14 connector | | Dimensions (W x H x D) | 50.7 x 4.7 x 13" (1287 x 118 x 334 mm) | | Weight | 41.8 lb (19 kg) | | | | Package Weight | 52.85 lb | | Box Dimensions (LxWxH) | 59.5 x 19.0 x 10.0" |
