Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars
User manual for the Nord Stage 3 Compact 73-Note Semi-Weighted contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nord product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nord user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nord product will considerably shorten its lifespan!



Product description

The Stage 3 Compact 73-Note, Semi-Weighted Waterfall Keyboard with Physical Drawbars from Nord is the fifth generation of their Stage-series performance keyboard and features two clear OLED displays, seamless transitions when changing programs/sounds, extended split functionality with optional crossfade, and the addition of the song list mode. The keyboard is designed to provide high-quality organs, pianos, and synthesizer sounds, all of which can be used simultaneously, but also offers the ability to load your own samples or load additional sounds from Nord's libraries.Some of the main features of the piano section are a doubled memory (2GB) for the piano library, expanded polyphony (120 voices), and creative filter presets. The A1 synth engine is equipped with sample playback, a dedicated OLED display for oscillator functions, expanded memory (480MB) for the sample library, and a Super Wave category (S-wave). Additional features of the organ section are a Nord C2D organ engine, two new pipe organ models, and a Model 122 Vintage Rotary Speaker.Furthermore, the Nord Stage 3 effects section features a new filter effect, extended morphable parameters, and enhanced delay effects with a separate reverb and compressor for each slot. Also, the effects sections have a wide range of instantly tweakable high-quality effects, all of which are modeled after classic stompboxes and are available for each slot. Finally, a new Song Mode lets you easily organize a group of programs for each specific song in the list. Each song can consist of up to 5 different programs, which are freely assignable from your existing programs.

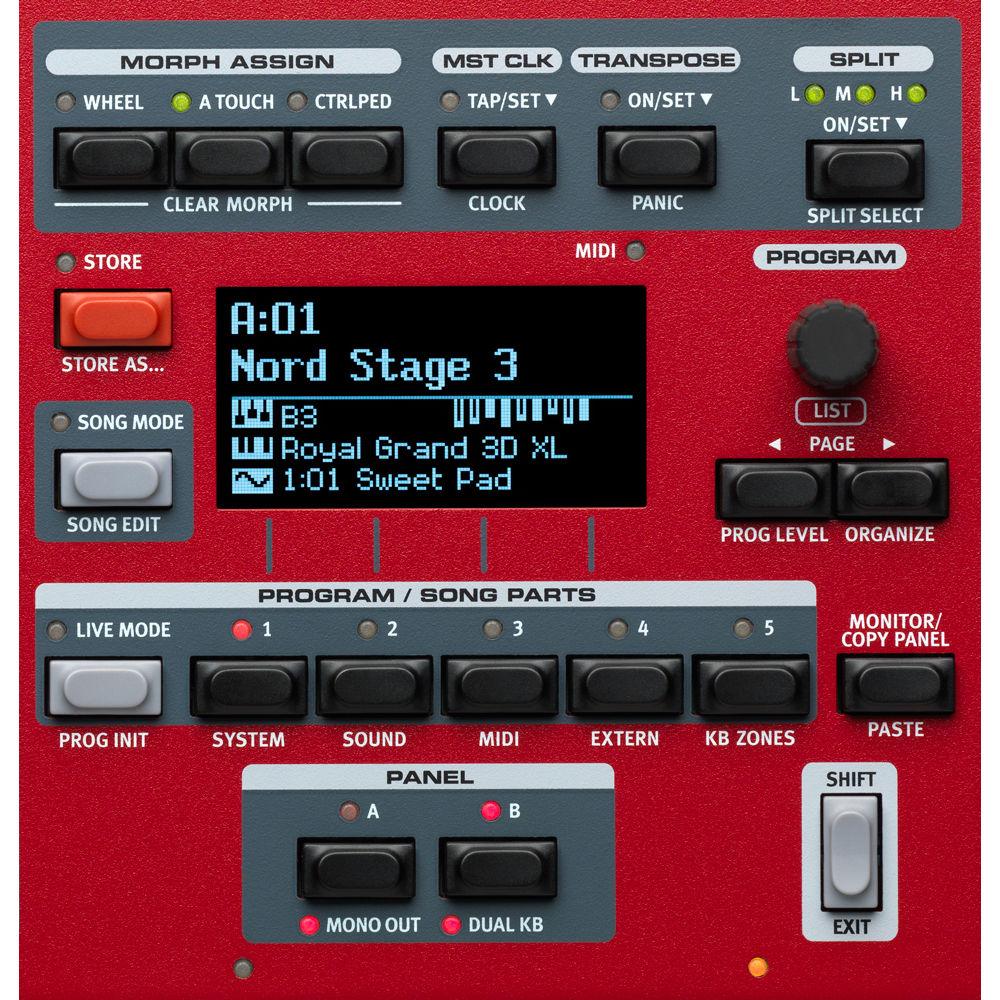

    Performance/General
    • OLED displays for program and synth section
    • Seamless transitions when changing programs
    • Extended split functionality with optional crossfade
    • Song list mode
    • Extended morph destinations

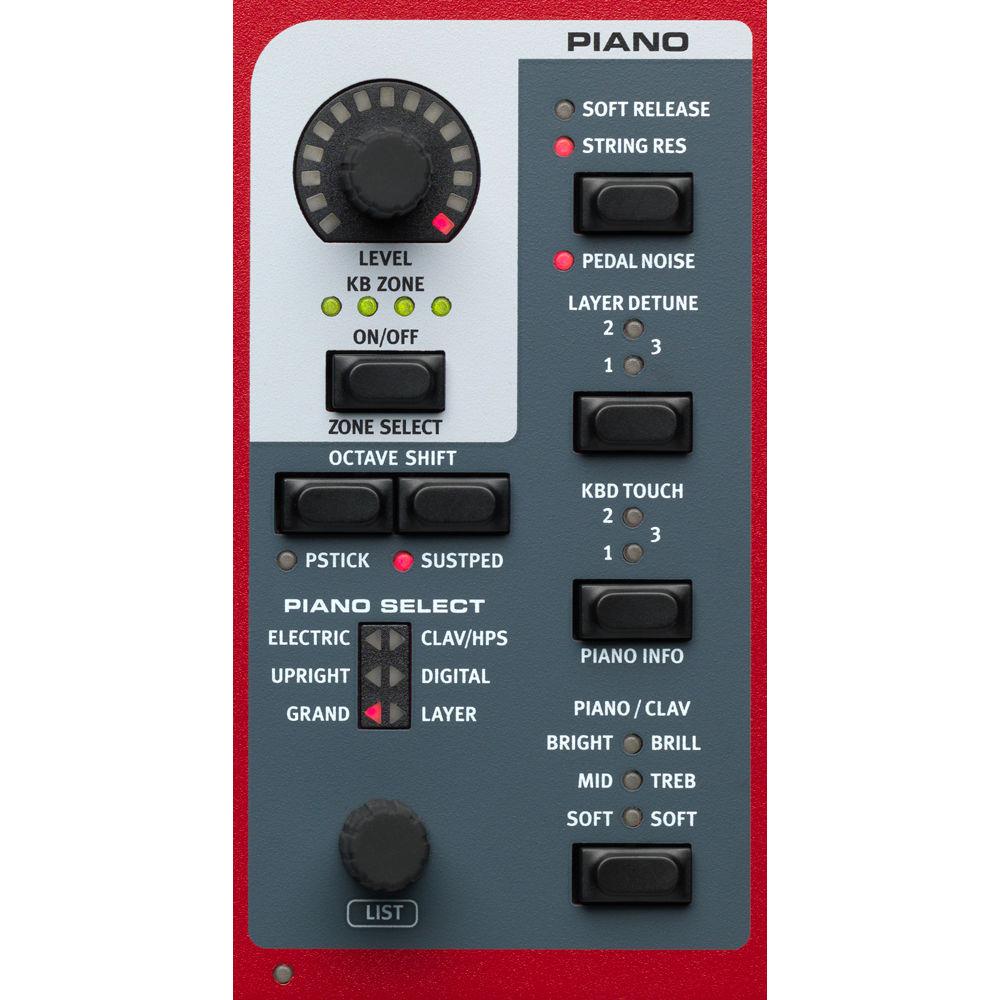

    Piano Section
    • Doubled memory (2GB) for the Nord Piano Library
    • Expanded polyphony (120 voices)
    • Creative filter presets
    • Layer category

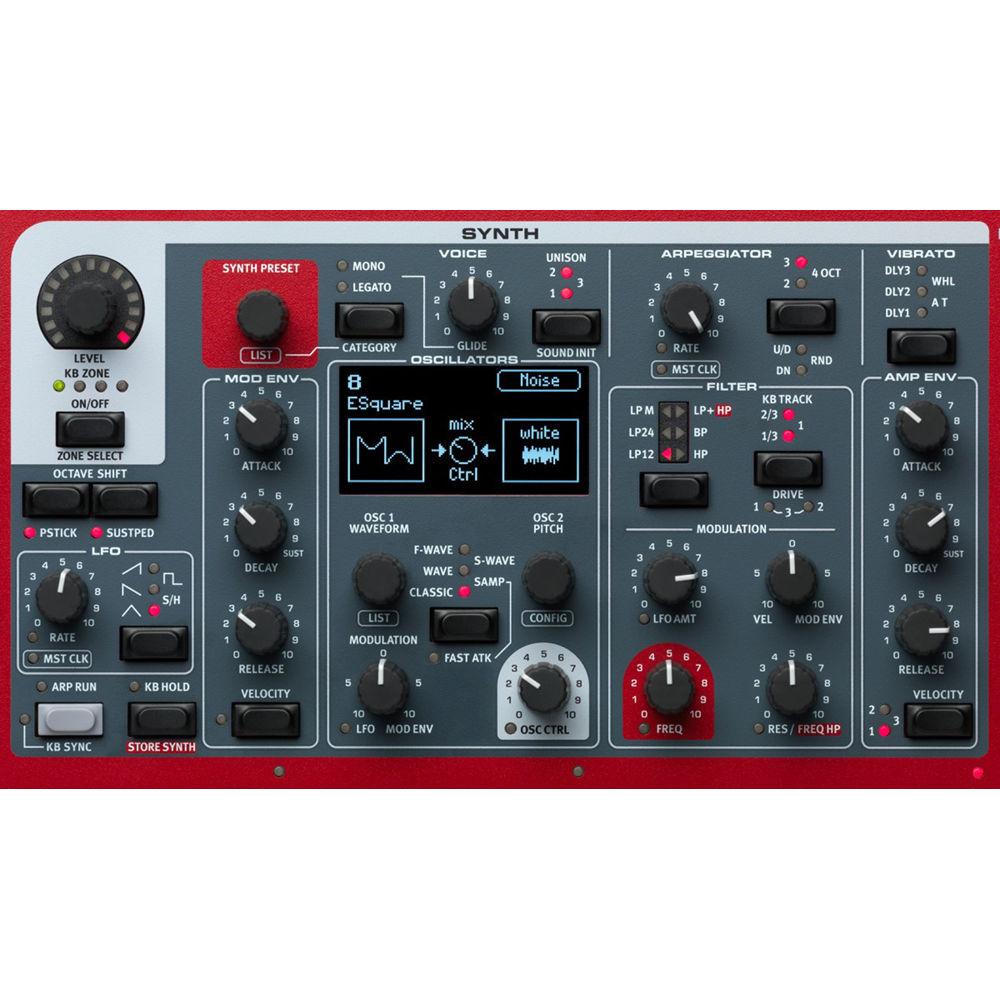

    Synth Section
    • Nord Lead A1 Synth Engine with sample playback
    • Dedicated OLED display for oscillator functions
    • Expanded memory (480MB) for the Nord Sample Library
    • Extended polyphony
    • Super Wave category (S-wave)

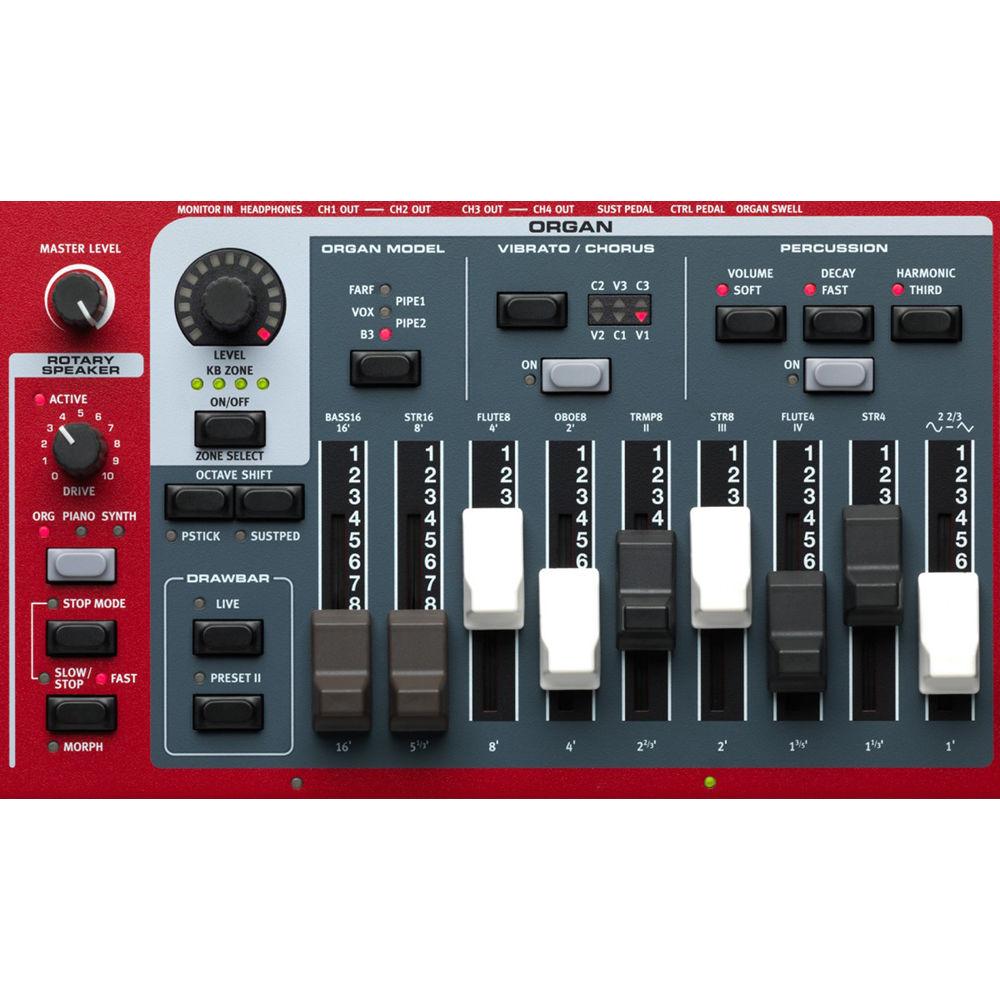

    Organ Section
    • Nord C2D organ engine
    • 2 new pipe organ models
    • Model 122 Vintage Rotary Speaker - available per slot
    • Physical drawbars for Nord Stage 3 Compact

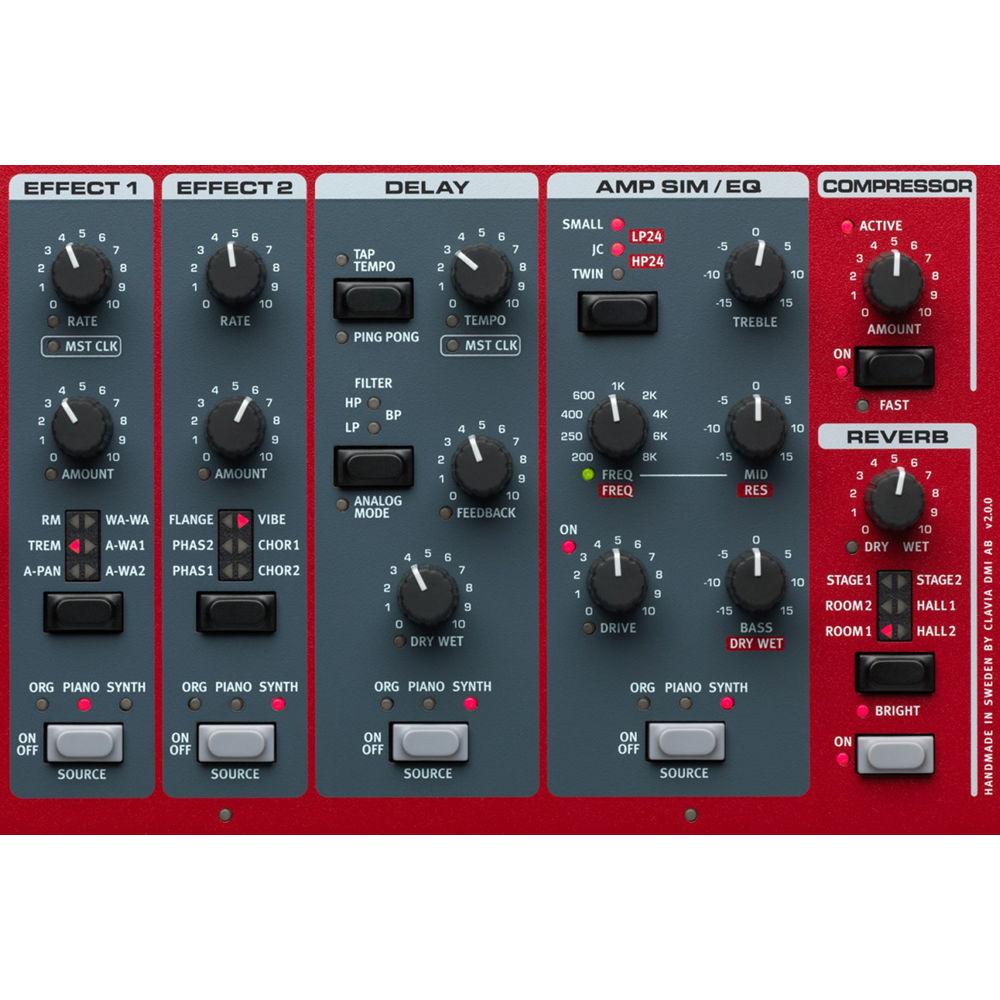

    Effects
    • Improved delay with added feedback filters and analog mode
    • Filter mode with resonance
    • Separate compressor per slot with Amount and Fast mode
    • Separate reverb per slot with Bright mode
UPC: 834035001332 In the Box Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars
  • Power Cord
  • USB Cord
  • Nord Sample and Piano DVDs
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical Drawbars can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical DrawbarsDownload PDF User Manual - https://www.search-manual.com/ upload/ nord-stage-3-compact-73-note-semi-weighted-waterfall-keyboard-with-physical-drawbars-354985-user-manual.pdf
    (PDF file, 36.68 MB)

    Download PDF user manual - Nord Stage 3 Compact 73-Note Semi-Weighted Waterfall Keyboard with Physical DrawbarsDownload PDF User Manual - https://www.search-manual.com/ upload/ nord-stage-3-compact-73-note-semi-weighted-waterfall-keyboard-with-physical-drawbars-354985-user-manual.pdf
    (PDF file, 36.68 MB)


    Technical parameters

    Nord Stage 3 Specs

    General Master level control
    Wooden pitch stick
    Modulation wheel
    400 programs - 8 banks with 10 pages each. Each page has 5 program locations
    Song mode - 8 banks with 50 songs, 5 programs per song
    5 live buffers
    2 individual slot setups
    3 morph sources (modulation wheel, control pedal, aftertouch)
    Global mono output
    Programmable transpose (+/- 6 semitones)
    Master clock functionality with manual, external, and tap-tempo rate control
    Internal and MIDI clock source
    MIDI over USB functionality
    Level control
    Aftertouch
    Up to 3 split points (4 keyboard zones) with visual LED indication between zones
    3 Split Point Width (Crossfade) Options: Lrg, Sml, or Off
    Keyboard zones editor mode
    Organ Section Nord C2D B3 Tone Wheel Organ simulation
    Vox Continental and Farfisa models
    2 digital pipe organ models
    Physical drawbars (Compact model only)
    Drawbar live mode (Compact model only)
    Percussion controls
    Vibrato/chorus control
    Two drawbar presets per slot
    2-part multitimbral (2 manuals)
    Piano Section 2 GB memory for piano sounds
    All sounds can be replaced using Nord Sound Manager (Mac/Windows)
    120-voice polyphony
    Categories: Grand, Upright, Electric, Digital, Layer, and Clav/Harpsichord
    4 selectable velocity curves
    Dedicated piano filters
    Clavinet EQ controls
    String resonance (generation 2) on acoustic grand pianos and uprights
    Selectable soft piano release
    Pedal noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
    Layer (slot) detune functionality
    2-part multitimbral
    Synth Section Nord Lead A1 synth engine with sample playback
    Dedicated OLED display for oscillator section
    480 MB memory for Nord Sample Library
    All samples can be replaced using Nord Sound Manager (Mac/Windows)
    34-voice polyphony
    Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave), and Sample
    Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM*, and Ring Mod
    * indicates that the configuration is not available for sample/Super Wave
    Classic Transistor Ladder Filter (LP, M): 12 & 24 dB low-pass, high-pass, band-pass, and combined low-pass/band-pass (LP+BP) filter
    Filter Drive: Off, 1, 2, and 3
    Filter Tracking: Off, 1/3, 2/3, and Full
    3 unison modes
    Amplitude envelope (attack, decay, sustain) with velocity control
    Modulation envelope (attack, decay, sustain) with velocity control
    LFO with 5 Waveforms/Modes: Square, Triangle, Ramp Dn, Ramp Up, and Sample & Hold
    400 (8x50) synth preset locations with synth preset categories
    Arpeggiator (up, down, up-down, and random). Range: 1, 2, 3, or 4 octaves
    LFO and arpeggiator synchronizable to master clock
    2-part multitimbral
    Effects Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
    Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
    Delay with tempo, feedback, and mix (dry/wet) controls, ping pong (stereo taps), tap-tempo, feedback filter (HP/LP/BP) and panel-selectable analog mode
    3 types of speaker simulations (JC, Twin, and Small)
    Filter mode (HP24/LP24) with cut-off, resonance, and mix controls
    Tube amp simulation with adjustable overdrive
    3-band EQ with sweepable mid
    EQ ranges of 100 Hz, 200 Hz to 8 kHz, and 4 kHz
    Rotary Speaker: Selectable speed (stop, slow, and fast), and separate overdrive
    Extended Morphable Parameters: Filter resonance, reverb (dry/wet), delay feedback, and amp drive
    Effect rates/tempo can be synchronized to the master clock
    Compressor with Fast mode
    Reverb: 6 algorithms with Bright mode
    Keyboard Nord Stage 3 Compact: 73-key, velocity-sensitive, semi-weighted waterfall keyboard
    Range: E-E

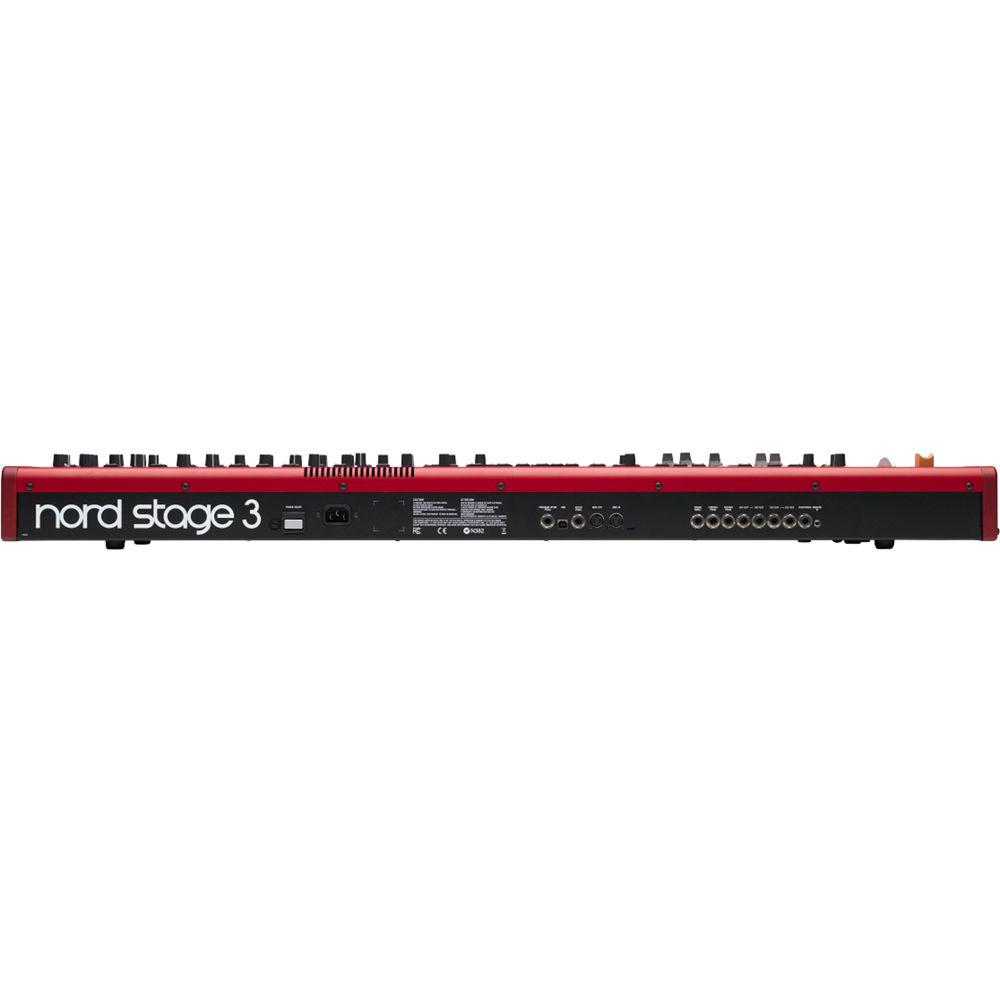

    Connections 4 x 1/4" (6.3 mm) TS audio out, unbalanced
    1 x 1/4" (6.3 mm) TRS headphone out
    1 x 1/8" TRS stereo mini monitor input
    1 x 1/4" TS (6.3 mm) sustain pedal input. Use a momentary pedal (Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25, and more)
    Sustain input compatible with Nord Triple Pedal (sold separately)
    1 x rotor pedal - 1/4" (6.3 mm) jack. Use a momentary pedal or a switch-type pedal
    1 x Organ swell pedal - 1/4" (6.3 mm) TRS stereo jack. Use a control/expression pedal (Yamaha FC-7, Roland EV-5, and more)
    1 x control pedal - 1/4" (6.3 mm) TRS stereo jack. Use a control/expression pedal (Yamaha FC-7, Roland EV-5, and more)
    1 x program change pedal input - 1/4" (6.3 mm) jack. Use a momentary two-button pedal (Boss FS-6, Boss FS-7, and more)
    1 x MIDI In 5-pin DIN connectors
    1 x MIDI Out 5-pin DIN connectors
    USB Type-B connector for USB MIDI, software update, and sound transfer
    Power cord with IEC C14 connector
    Dimensions (W x H x D) 42 x 4 x 12" (1070 x 104 x 302 mm)
    Weight 22.0 lb (10 kg)
    Package Weight 28.5 lb
    Box Dimensions (LxWxH) 54.0 x 7.5 x 7.0"
