User Manual for Norman 2 Monolight Travel Kit Click to enlarge the picture
Contents of the user manual for the Norman 2 Monolight Travel Kit
- Product category: Monolights Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Monolights
 |
User manual for the Norman 2 Monolight Travel Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|

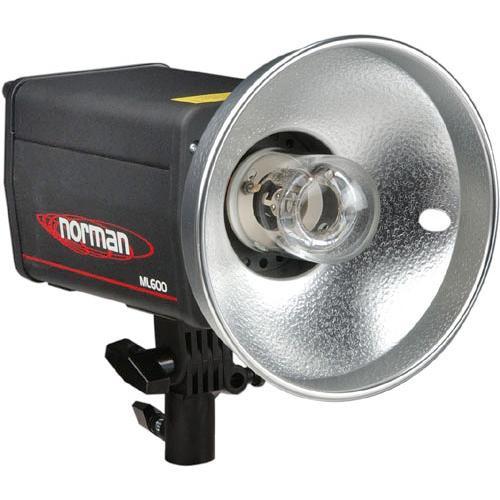

Product description This is a Norman 2 Monolight Travel Kit (120VAC) Kit. Norman monolights feature 5-stop adjustable power in 1/10 f/stop increments. Flash durations are short -- 1/1200 second for either the 600, or 400Ws models. 600 Ws models come equipped with 250 watt modeling lights, the 400Ws models have 250 watt modeling lights.The Norman ML series allows independent adjustment of modeling light levels. Each reflector is highly polished, with a properly-placed hole for an umbrella shaft. This hole allows correct center placement of the light beam, when an umbrella is used. - Versatile
- Each Monolight accepts over 100 Norman accessories and light modifiers including softboxes, reflectors, grids, snoots and barn doors (with R9113 Adapter Rings)

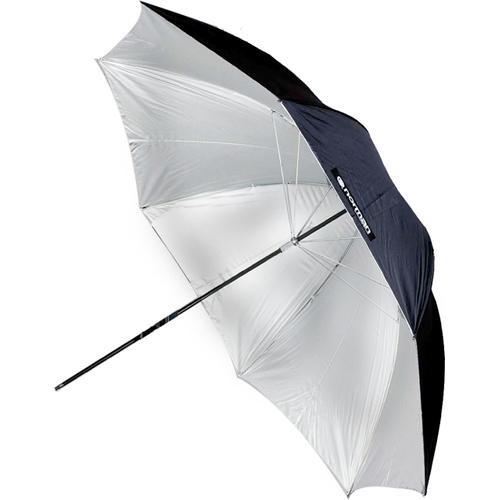

Light Shapers - Umbrellas offer softening of the light over a wide area; they are quick to set up
- The kit umbrella has a removable black backing which adds the use of it as a "shoot-through" umbrella
- Support and Storage
-
- Heavy Duty Light Stands provide support of the monolights up to heights of 9' (2.7 m)

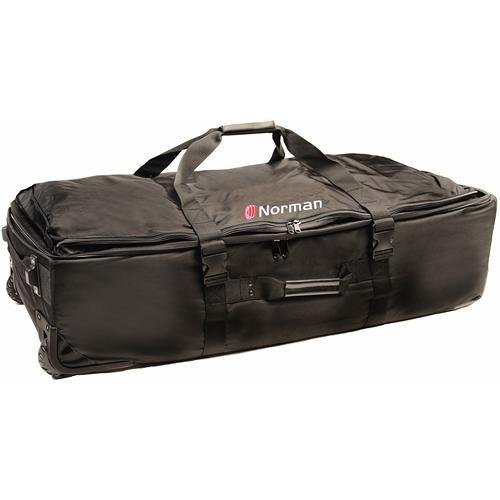

- Soft, wheeled kit case with liner and dividers, internal and external pockets, locking straps and handles.

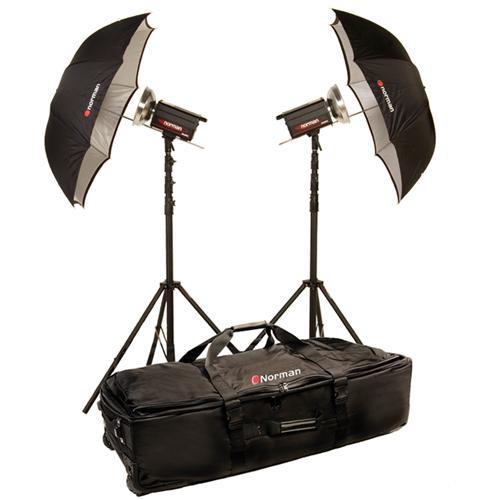

Dimensions: 18" x 44" x 13" UPC: 689670184670 In the Box Norman 2 Monolight Travel Kit (120VAC) 2 x 600Ws Monolight (810650) 2 x 45" White Umbrella, removable backing (812745) 2 x Heavy Duty Light Stands (812283) NL03CS Soft Case 812451 Sync Cable - 15' Straight Male PC to Phono 1/4" Male Two Year Manufacturer's Warranty on Monolights One Year Manufacturer's Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman 2 Monolight Travel Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman ML600 Specs | | | Maximum Power | 600 Ws | | Power Control | 5 Stops in 1/10-Stop Increments | | Guide Number | 135' / 41.1 m at 10' / 3 m, ISO100 | | Flash Duration | 1/1000 Sec (Full Power) | | Recycle Time | 2 Sec (Full Power) | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Optical | | Sync Voltage | 6 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Circuit Protection | Circuit Breaker, Overheat Cutout | | Fuse | 10 A | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 5.0 x W: 5.0 x L: 7.4" / H: 12.7 x W: 12.7 x L: 18.8 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 45.0 x 20.0 x 20.0" |
