Product description The Norman 810806 Battery Assembly is one of the most compact 200 w/s flash power supplies on today's professional market. Its all-aluminum housing is rugged and ergonomic. It can be worn either over-the-shoulder with the included shoulder strap, or around the waist; it weighs 4 lbs. The 200C delivers a guide number of 115 @ 10' with ISO 100 film. It can be dialed down to 50 w/s.The Norman LH52KR flash head has a built-in Pocket Wizard 32 channel transceiver that will fire the head without a camera to head pc cord. It will function with your Pocket Wizard, Plus, or Multimax unit. Flash duration of the head is ~1/900 second @ full power. It features a power cord, flashtube, and standard reflector. It is designed to fit onto any flash bracket, light stand or tripod by using its 1/4"-20 threaded socket on the bottom of the lamphead. - Fires Without Wires
- From your Pocket Wizard Transmitter or Transceiver...
For more Pocket Wizard MultiMax information, click HERE.
For more Pocket Wizard Plus information, click HERE. - System Compatibility
- Accepts all Norman Series 450 lampheads, which are interchangable
between the 200C and the 400B. - Three F-Stop Range
- Full, 1/2 and 1/3 settings are available.
- Fast Recycle Time
- The Power Supply recycles in only 1.5 Seconds @ maximum power.
- Low Battery Warning
- A light warns when there are about 10 full power flashes remaining.
- Easily Replaceable Flashtube
- No tools are required to replace the UV coated flashtube.
- Changeable Reflector
- Accepts all LH2 and LH52 reflectors and accessories.

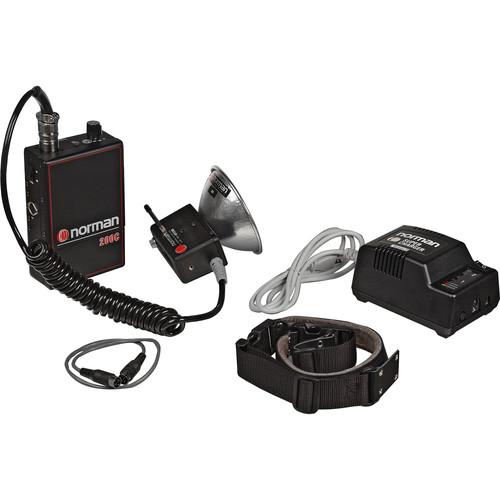

UPC: 689670171496 In the Box Norman 200 W/S Battery Assembly Kit, Radio Slave LH2KR UV Flash Head 2D 5" Reflector 810830 P200C 200 Watt/Second Power Pack 812866 NiCad Battery for 200C Super Dual Charger with R5004 "Y" Cable Contour Shoulder Strap 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman 200 W S Battery Assembly Kit, Radio Slave in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman P200C Specs | | | Maximum Watt/Seconds | 200 | | Guide Number | 115 @ 10', ISO 100 | | Recycle Time | 1.5 seconds @ full power, 0.8 sec @ 1/2 power, 0.3 sec @ 1/3 power | | Distribution | Symmetrical | | Flash Ready Indicator | Ready Light on Lamphead | | Built-in Slave Cell | In Head | | Auto Dump | No | | Fan Cooled | No | | Number of Flashes @ Full Power | 190 + | | Dimensions | 8 x 4.75 x 2.25" (20.3 x 11 x 5.8 cm) | | Weight | 3.75 lb (1.5 kg) | | | | Maximum Watt/Seconds | 200 | | Replaceable Flashtube | Yes (FT200) | | Modeling Light | No | | Built-in Slave Cell | Yes - Pocket Wizard 32 channel Radio Slave | | Changeable Reflector | Yes | | Cable | 5', coiled | | Dimensions | 5 x 5" (12.7 x 12.7 cm) with standard 5" reflector
Antenna ~3" (7.6 cm) | | Weight | 1.3 lb (0.6 kg) with 5" reflector | | | | Battery Charge Time | 1.5 hrs | | Operating Voltage | 120-230V AC | | Weight | 3.8 lb (1.7 kg) | | | | Dimensions | Not applicable | | Weight | 12.75 lb (5.8 kg) | | | | Package Weight | 11.0 lb | | Box Dimensions (LxWxH) | 11.0 x 10.5 x 5.5" |
