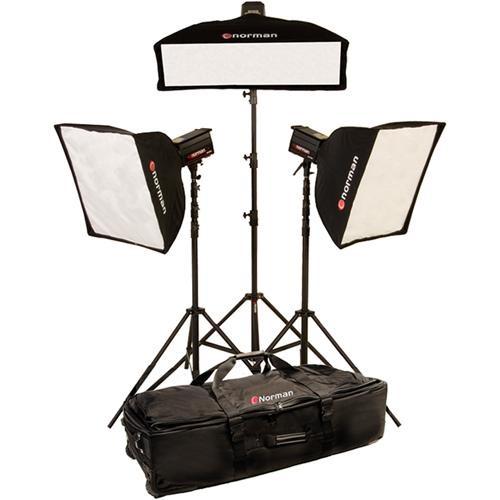

User Manual for Norman 3 "R" Monolight, 3 Softbox Kit Click to enlarge the picture
Contents of the user manual for the Norman 3 "R" Monolight, 3 Softbox
- Product category: Monolights Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Monolights
 |
User manual for the Norman 3 "R" Monolight, 3 Softbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|

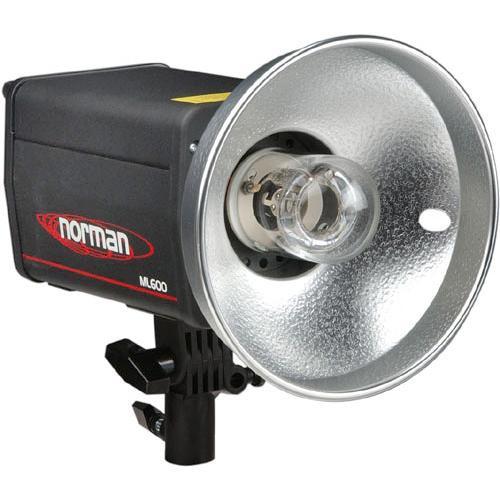

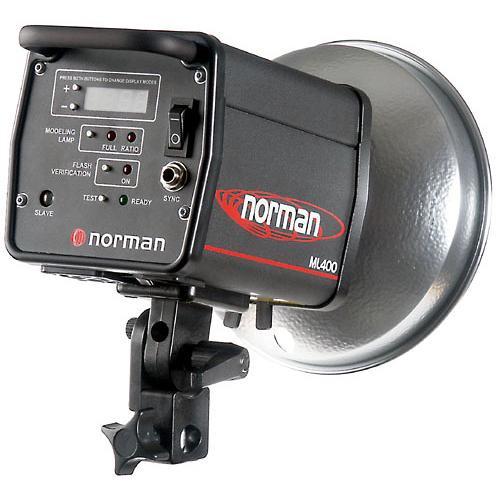

Product description This is a Norman 3 "R" Monolight, 3 Softbox Kit (120VAC) Kit. Norman monolights feature 5-stop adjustable power in 1/10 f/stop increments. Flash durations are short -- 1/1200 second for either the 600, or 400Ws models. 600 Ws models come equipped with 250 watt modeling lights, the 400Ws models have 250 watt modeling lights.The Norman ML series allows independent adjustment of modeling light levels. Each reflector is highly polished, with a properly-placed hole for an umbrella shaft. This hole allows correct center placement of the light beam, when an umbrella is used. - Versatile
- Each Monolight accepts over 100 Norman accessories and light modifiers including softboxes, reflectors, grids, snoots and barn doors (with R9113 Adapter Rings)
Light Shapers - Softboxes provide softening with the most efficient use of the light emitted from each fixture

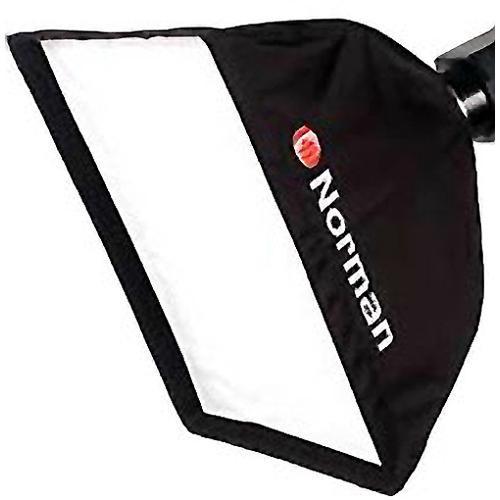

- Square softboxes provide general lighting

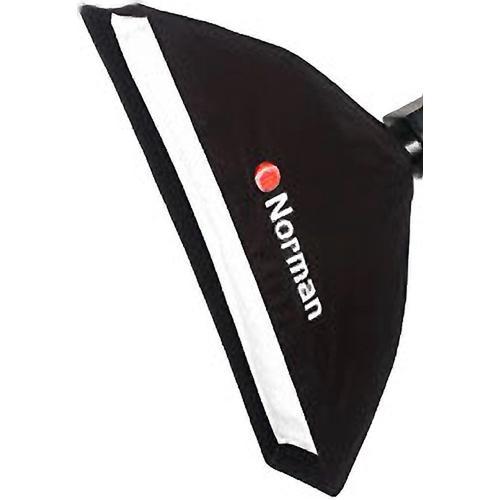

- Stripboxes add edge, or hairlighting without much spill
- Support and Storage
-
- Heavy Duty Light Stands provide support of the monolights up to heights of 9' (2.7 m)

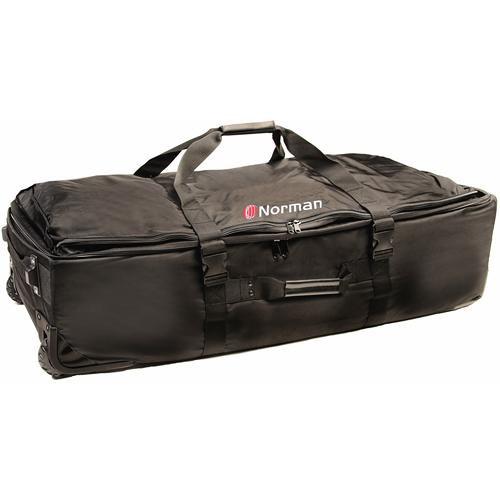

- Soft, wheeled kit case with liner and dividers, internal and external pockets, locking straps and handles.
Dimensions: 18" x 44" x 13" UPC: 689670184304 In the Box Norman 3 "R" Monolight, 3 Softbox Kit (120VAC) 2 x 400Ws Monolight (810641) 600Ws Monolight (810650) 812724 Strip Softbox - 10 x 36" 3 x Heavy Duty Light Stands (812283) NL03CS Soft Case 812451 Sync Cable - 15' Straight Male PC to Phono 1/4" Male 3 x Softbox Adapter Ring (810911) Two Year Manufacturer's Warranty on Monolights One Year Manufacturer's Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman 3 "R" Monolight, 3 Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman 812897 Specs | Maximum Watt/Seconds | ML600 Monolight: 600
Each ML400 Monolight: 400 | | Guide Number | ML600: 135 bare bulb, ISO 100 @ 10'
ML400: 100 bare bulb, ISO 100 @ 10' | | Recycle Time | ML600: 2 sec @ full power
ML400: 1.5 sec @ full power | | Flash Duration | 1/1000 sec @ full power | | Flash Variability | 5 f/stops, in 0.1 stop increments | | User Replaceable Flashtube | Yes (FQ8) | | Changeable Reflector | Yes | | Modeling Light Wattage | ML600: 250W (ESS)
ML400: 150W (ESR) | | Voltage Stabilization | Yes, +/- 1% | | Flash Ready Indicator | Ready Light/Open Flash, Switchable Audible Beep | | Operating Voltage | 105-125 VAC, 60Hz | | Sync Voltage | 6VDC | | Built-in Slave Cell | Yes: Optical, on-off | | Circuit Protection | Overheat cutout and 10A circuit breaker | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | Each Monolight: 5 x 5 x 7.4" (12.7 x 12.7 x 18.8cm) | | Weight | Each ML600 Monolight: 6 lbs (2.7kg)
Each ML400 Monolight: 5 lbs (2.3kg) | | Kit Weight | ~60 lbs (27.2kg) | | | | Package Weight | 76.15 lb | | Box Dimensions (LxWxH) | 46.8 x 20.0 x 13.4" |
