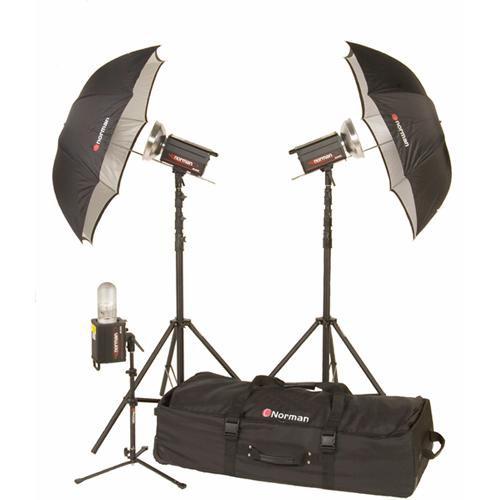

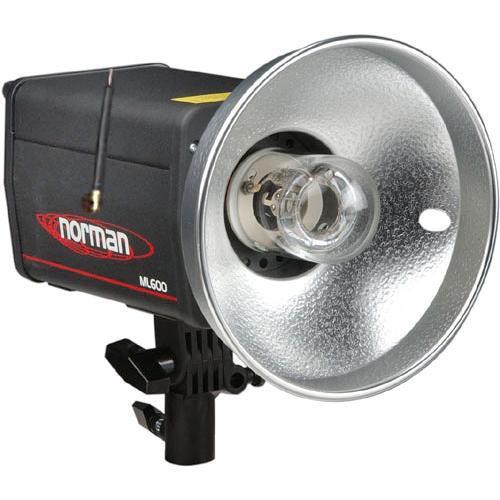

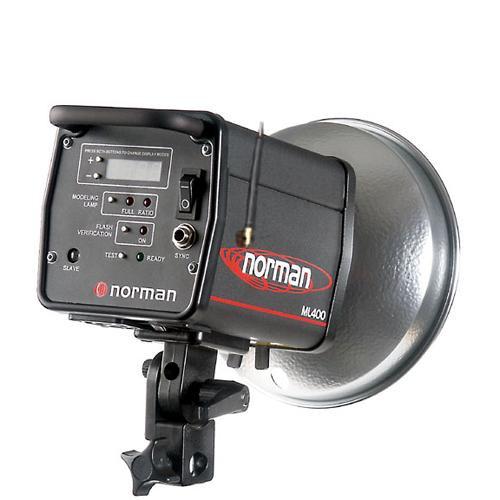

Product description This is a Norman 3 "R" Monolight Travel/Studio Kit (120VAC) Kit. Norman monolights feature 5-stop adjustable power in 1/10 f/stop increments. Flash durations are short -- 1/1200 second for either the 600, or 400Ws models. 600 Ws models come equipped with 250 watt modeling lights, the 400Ws models have 250 watt modeling lights.The Norman ML series allows independent adjustment of modeling light levels. Each reflector is highly polished, with a properly-placed hole for an umbrella shaft. This hole allows correct center placement of the light beam, when an umbrella is used. - Built-in Radio Slave
- Each monolight has a built-in Pocket Wizard Radio Slave, which enables closed-system wireless firing from any Pocket Wizard Transmitter or Transceiver (available separately)
- Versatile
- Each Monolight accepts over 100 Norman accessories and light modifiers including softboxes, reflectors, grids, snoots and barn doors (with R9113 Adapter Rings)
Light Shapers - Umbrellas offer softening of the light over a wide area; they are quick to set up

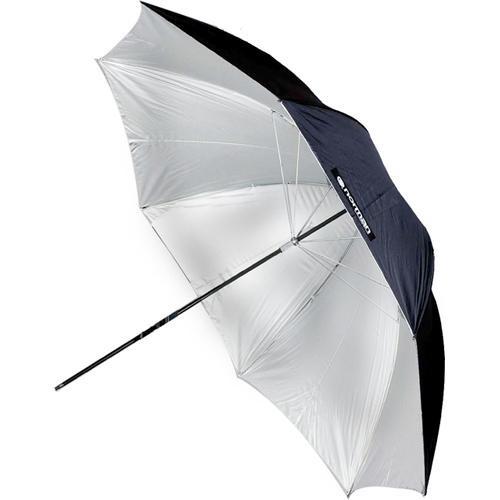

- The kit umbrella has a removable black backing which adds the use of it as a "shoot-through" umbrella
- Support and Storage
-
- Heavy Duty Light Stands provide support of the monolights up to heights of 9' (2.7 m)
- Backlight stand provides fixture suport at floor or table-level, or up to 2.3' with the included extension

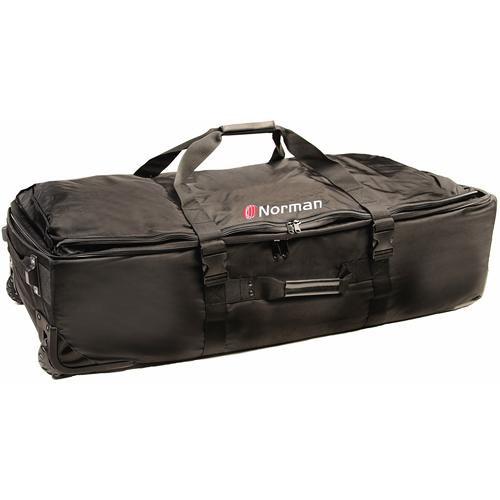

- Soft, wheeled kit case with liner and dividers, internal and external pockets, locking straps and handles.
Dimensions: 18" x 44" x 13" UPC: 689670184700 In the Box Norman 3 "R" Monolight Travel/Studio Kit (120VAC) 400Ws "R" Monolight (810644) 2 x 600Ws "R" Monolight (810653) 2 x 45" White Umbrella, removable backing (812745) 2 x Heavy Duty Light Stands (812283) LS220-1 Back Light Stand (3') NL03CS Soft Case 812451 Sync Cable - 15' Straight Male PC to Phono 1/4" Male Two Year Manufacturer's Warranty on Monolights One Year Manufacturer's Warranty on Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman 3 "R" Monolight Travel Studio Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman 812909 Specs | Maximum Watt/Seconds | Each ML600 Monolight: 600
ML400 Monolight: 400 | | Guide Number | ML600: 135 bare bulb, ISO 100 @ 10'
ML400: 100 bare bulb, ISO 100 @ 10' | | Recycle Time | ML600: 2 sec @ full power
ML400: 1.5 sec @ full power | | Flash Duration | 1/1000 sec @ full power | | Flash Variability | 5 f/stops, in 0.1 stop increments | | User Replaceable Flashtube | Yes (FQ8) | | Changeable Reflector | Yes | | Modeling Light Wattage | ML600: 250W (ESS)
ML400: 150W (ESR) | | Voltage Stabilization | Yes, +/- 1% | | Flash Ready Indicator | Ready Light/Open Flash, Switchable Audible Beep | | Operating Voltage | 105-125 VAC, 60Hz | | Sync Voltage | 6VDC | | Built-in Slave Cell | Yes: Pocket Wizard Radio, Optical, on-off | | Circuit Protection | Overheat cutout and 10A circuit breaker | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | Each Monolight: 5 x 5 x 7.4" (12.7 x 12.7 x 18.8cm) | | Weight | Each ML600 Monolight: 6 lbs (2.7kg)
ML400 Monolight: 5 lbs (2.3kg) | | Kit Weight | ~60 lbs (27.2kg) | | | | Package Weight | 68.85 lb | | Box Dimensions (LxWxH) | 46.0 x 19.0 x 13.0" |
