User Manual for Norman 810797 200 Watt Second Portable Battery Assembly Kit Click to enlarge the picture
Contents of the user manual for the Norman 810797 200 Watt Second Portable
- Product category: Battery Powered Heads Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Battery Powered Heads
 |
User manual for the Norman 810797 200 Watt Second Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|

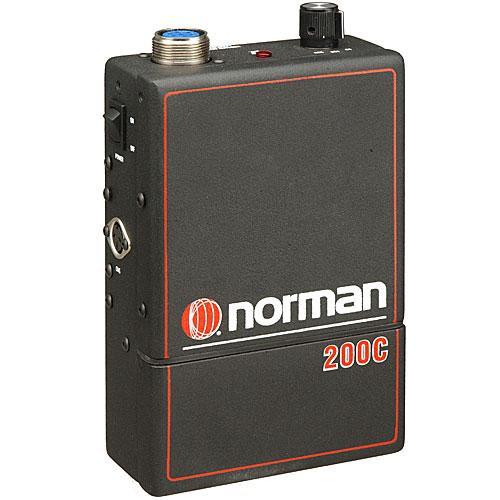

Product description The Norman 810797 Portable Battery Assembly is one of the most compact 200 w/s flash power supplies on today's professional market. Its all-aluminum housing is rugged and ergonomic. It can be worn either over-the-shoulder with the included shoulder strap, or around the waist; it weighs 4 lbs. The 200C delivers a guide number of 115 @ 10' with ISO 100 film. It can be dialed down to 50 w/s.The LH2K flash head is the basic light head from Norman. It features a power cord, flashtube, and standard reflector. It is designed to fit onto any flash bracket, light stand or tripod by using its 1/4"-20 threaded socket on the bottom of the lamphead. It has a flash duration of 1/900 Second @ full power. - Compact Design
- The lamphead is extremely small, for ease of use and travel.
- Three F-Stop Range
- Full, half, and 1/3 power are available.
- Fast Recycle Time
- The Power Supply Recycles in only 1.5 Seconds @ maximum power.
- Low Battery Warning
- A light warns when there are about 10 full power flashes remaining.
- Easily Replaceable Flashtube
- No tools are required to replace the UV coated flashtube.
- System Compatibility
- Accepts all Norman Series 450 lampheads, which are interchangable between the 200C and the 400B.

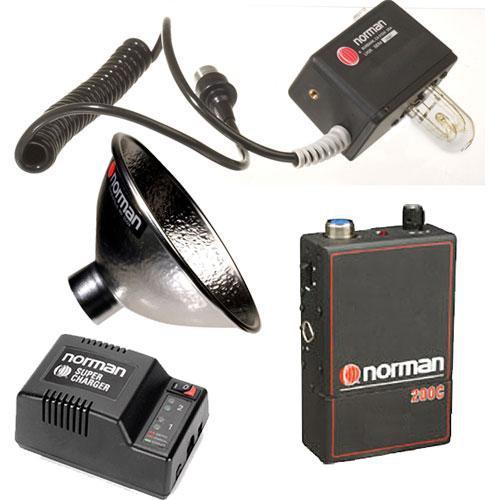

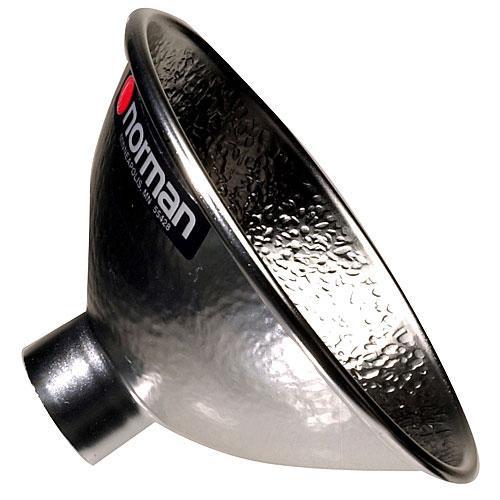

UPC: 689670171465 In the Box Norman 810797 200 Watt/Second Portable Battery Assembly Kit 812220 UV Lamphead budxbxeeacszuxrczvzxsuyrtzxx 2D 5" Reflector 810830 P200C 200 Watt/Second Power Pack 812866 NiCad Battery for 200C 812584 Super Dual Charger with R5002 Cable Sync Cord Shoulder Strap 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman 810797 200 Watt Second Portable Battery Assembly Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman P200C Specs | | | Maximum Watt/Seconds | 200 | | Guide Number | 115 @ 10', ISO 100 | | Recycle Time | 1.5 seconds @ full power, 0.8 sec @ 1/2 power, 0.3 sec @ 1/3 power | | Distribution | Symmetrical | | Flash Ready Indicator | Ready Light on Lamphead | | Built-in Slave Cell | No | | Auto Dump | No | | Fan Cooled | No | | Number of Flashes @ Full Power | 190 + | | Dimensions | 8 x 4.75 x 2.25" (20.3 x 11 x 5.8 cm) | | Weight | 3.75 lb (1.5 kg) | | | | Maximum Watt/Seconds | 200 | | Replaceable Flashtube | Yes (FT200) | | Modeling Light | No | | Built-in Slave Cell | No | | Changeable Reflector | Yes | | Cable | 5'. coiled | | Dimensions | 5 x 5" (12.7 x 12.7 cm) with standard 5" reflector | | Weight | 1.25 lb (0.6 kg) with 5" reflector | | | | Battery Charge Time | 1.5 hrs | | Operating Voltage | 120V AC | | Weight | 3.8 lb (1.7 kg) | | | | Dimensions | Not applicable | | Weight | 12.75 lb (5.8 kg) | | | | Package Weight | 9.44 lb | | Box Dimensions (LxWxH) | 13.4 x 11.0 x 5.6" |
