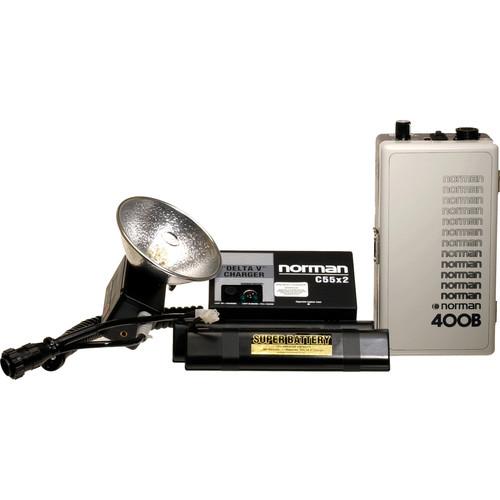

User Manual for Norman A400B 400Ws One-Light Basic Kit Click to enlarge the picture
Contents of the user manual for the Norman A400B 400Ws One-Light Basic Kit
- Product category: Battery Powered Heads Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Battery Powered Heads
|
User manual for the Norman A400B 400Ws One-Light Basic Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|
Product description Comprising the essential components of a portable one-light setup, the A400B Basic Kit from Norman is well-suited to location lighting and outdoor shooting applications. Included in the kit is one 400Ws power pack with two NiCad batteries, a 400Ws flash head with 5' coiled cable, a 5" reflector, a shoulder strap for carrying the battery, and an external battery charger. - 812332 Power Pack - 400 Watt/Seconds The Norman 812332 is one of the most popular 400 w/s flash power supplies on today's wedding/location photography market. Its all-aluminum housing is rugged and compact and it can be worn either over-the-shoulder or around the waist. Delivering an impressive guide number of 163 @ full power, the 400B can also be dialed down to give the photographer 50 w/s and a working aperture of 5.6 A 10' with 100 ISO film.Note: This is a Power Pack Housing only. Batteries must be purchased separately. Click ACCESSORIES tab.
- New Battery Technology
- The optional "Super Battery" has no memory and the optional Super charger provides a more complete charge without heating the battery, thus increasing performance and battery life.
- Fast Recycling
- Ultra-quick recycling speed of 3 seconds at maximum output.
UPC: 689670173988 - 812863 NiCad Battery for P400B The Norman 812863 battery offers twenty-five percent more flashes with no memory effect and battery life is dramatically extended. Computerized charging prevents battery heating which dramatically extends battery performance and life.
- Technology has changed and Nickel Cadmium batteries can no longer be trickle charged or heated during the charging process.
- Super Batteries provide twenty-five more flashes per charge with no memory effect and battery life is dramatically extended.
- Our prorated battery warranty provides full replacement during the 1st year of service, 50% discount during year 2 and 25% discount during year 3.
- WARNING - Charging Super Batteries with Norman's discontinued gray Thermomatic charger will severely shorten battery life and void the battery warranty.
UPC: 689670175081 - Basic UV Lamphead with Coiled Cord The LH52K is Norman's lamphead for the A400C Battery Portable flash unit. It operates with all Series 500 Norman power supplies made over the years.
- Recessed Controls
- Prevents accidental firing.
- Battery Saver Funtion
- Automatically switches off after 20 seconds or after each flash, whichever comes first.
- System Compatibility
- Operates with all Series 450 Norman Power Supplies, as well as the 200B and 200C systems.
- Re-Designed Cord
- Coil Cord with vinyl jacket won't crack or split.
- Easy Mounting
- The LH2K has a standard 1/4 x 20 tapped hole on the bottom to accept all brands of camera brackets.
- Compact Design
- Lightweight and extremely portable.
UPC: 689670171403 - 2D 5" Reflector Get the most out of your Series 450 or 500 lampheads with this 2D 5" Reflector from Norman. Featuring a textured semi-gloss surface and the ability to accept 5" modifiers, this reflector will help you get the look you want out of your light. UPC: 689670171137
- Contour Shoulder Strap For ease and comfort in carrying the Norman Power Packs, Norman's Contour Shoulder Strap, #NOR4127, fits curvature of the wearers shoulder. The contoured design reduces fatigue, while increasing wearer's comfortn and safety. UPC: 689670171083
- 810929 Super Dual Charger The Norman Super Charger is a state-of-the-art battery charger for charging two Norman 12-volt nickel-cadmium batteries simultaneously, including B4124, B4126 and B5122 Batteries. It utilizes new technology whereby a complete charge is obtained without heating the battery cells. Charge time from dead-to-full is about 3 hours. Shorter charge times will be noticed if the batteries have some charge left in them when placed on the charger.The Super Charger charges both the new Norman "Super Batteries" and Norman's older batteries.Note:Cable is not included with this item. UPC: 689670171885
- R5003 Charger Cable Norman Charger Cable R5003 for use with the P400B Power Supply UPC: 689670170925
In the Box Bundle Items 812332 Power Pack - 400 Watt/Seconds budxbxeeacszuxrczvzxsuyrtzxx - 2 Year Manufacturer's Warranty Note: Battery Not Included
2 x 812863 NiCad Battery for P400B - 2 Year Manufacturer's Warranty
Basic UV Lamphead with Coiled Cord 2D 5" Reflector Contour Shoulder Strap 810929 Super Dual Charger - 2 Year Manufacturer's Warranty
R5003 Charger Cable Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman A400B 400Ws One-Light Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 812332 Power Pack - 400 Watt/Seconds
| Maximum Watt/Seconds | 400 w/s | | Guide Number | 163 @ 10', ISO 100 | | Recycle Time | 3 sec. @ 400 w/s
1.5 sec. @ 200 w/s
8/10 sec. @ 100 w/s
1/3 sec. @ 50 w/s | | Flash Duration | 1/900 Sec. @ full power | | Voltage Stabilization | No | | Distribution | One Lamp Head Socket "Y" Cables Available | | Number of Flashes | 170 Full Power Flashes | | Battery Charge Time | 2.5 Hours | | Flash Ready Indicator | Ready Light on Lamp Head | | Sync Voltage | 9 - 12V | | Built-in Slave | No | | Circuit Protection | Yes | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | 10.5 x 5.25 x 3.25" (26.6 x 13.3 x 8.2cm) | | Weight | 6lbs (2.72kg) | | | | Box Dimensions (LxWxH) | 11.4 x 10.4 x 6.7" | - 812863 NiCad Battery for P400B
| | | Charging Time | 3 Hours | | Weight | 1.5 lb / 0.7 kg | | | | Chemistry | Nickel-Cadmium | | Flashes Per Charge | 190 Flashes (Full Power) | | | | Box Dimensions (LxWxH) | 9.95 x 2.45 x 2.25" | - Basic UV Lamphead with Coiled Cord
| Maximum Watt/Seconds | 400 w/s | | User Replaceable Flashtube | Yes (FT400) | | Changeable Reflector | Yes | | Circuit Protection | None | | Cable Length | 5' coiled | | Modeling Light Wattage | None | | Modeling Light On/Off Switch | Not applicable | | Protective Glass Dome | Yes | | Fan Cooled | No | | Dimensions | 5 x 5" (12.7 x 12.7cm) with standard 5" reflector | | Weight | 1.25 lb (.6 kg) with 5" reflector | | | | Box Dimensions (LxWxH) | 10.3 x 2.7 x 0.5" | - 2D 5" Reflector
| | | Box Dimensions (LxWxH) | 6.5 x 6.5 x 3.25" | - Contour Shoulder Strap
| | | Box Dimensions (LxWxH) | 12.0 x 6.1 x 1.65" | - 810929 Super Dual Charger
| | | Charging Time | 3.5 Hours | | Number of Battery Bays | 2 | | | | Box Dimensions (LxWxH) | 11.2 x 6.6 x 3.6" | - R5003 Charger Cable
| | | Box Dimensions (LxWxH) | 6.1 x 6.0 x 0.6" |
