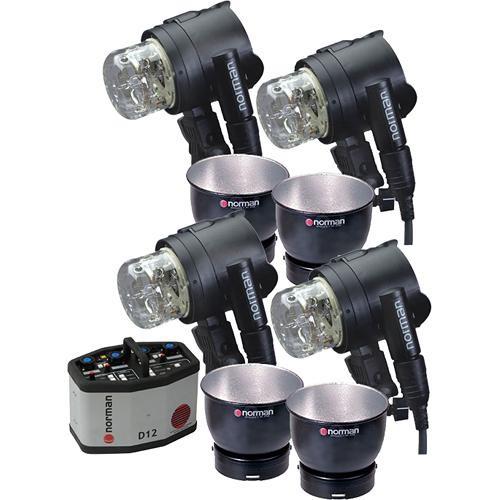

User Manual for Norman D12 Pack, 4- IL2500 Head Reflector Kit Click to enlarge the picture
Contents of the user manual for the Norman D12 Pack, 4- IL2500 Head
- Product category: Power Packs Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Power Packs
 |
User manual for the Norman D12 Pack, 4- IL2500 Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|
Product description - D12 1200 W/S Power Pack
- Operates with all Series 900 lampheads
4 Channel Control: Each head outlet has its own on-off switch
Power adjusts from full to -5 stops in .1 stop increments
All power levels are visible from the bright LED readouts
Audible "beep" and modeling lights "tracking" flash are switchable on or off

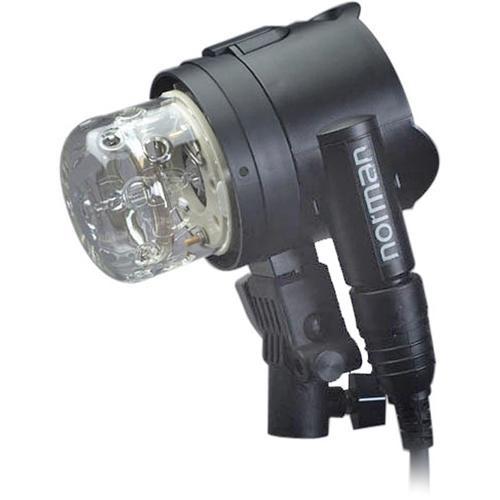

Fast recycling and flash duration - IL2500 Lamp Head
- 2400w/s plug-in vented UV coated quartz flashtube
Forced air fan cooling for better performance and longer life, especially when using softboxes
250W halogen modeling lights
20' detachable cable
Protective glass dome UPC: 689670184755 In the Box Norman D12 Pack, 4- IL2500 Head/Reflector Kit D12 Power Pack - 1200 Watt/Seconds erfvvedbryfery 4 x IL2500 Studio Lamphead 4 x 811814 5" Wide Angle Reflector, Type 2 for IL2500/TC 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman D12 Pack, 4- IL2500 Head Reflector Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman D12 Specs | Maximum Watt/Seconds | Power Pack: 1200
Each Flash Head: 2500 | | Guide Number | 220 @ 10', ISO 100, no reflector | | Recycle Time | Minimum power: 0.6 sec, Maximum power: 2.6 sec | | Flash Duration | t 0.5: 1/4800 sec. @ min. power, 1/1600 sec. @ 1200 w/s | | Head Outlets | 4 | | Flash Ready Indicator | LED, audible | | Built-in Slave Cell | Switchable infrared, optical | | Circuit Protection | Yes | | Fan Cooled | Power Pack: Yes, Flash Heads: Yes | | User Replaceable Flashtube | Yes (FQ5UV) | | Changeable Reflector | Yes, Norman series 900 Reflectors | | Cable Length | 20' (6M) | | Modeling Light Wattage | 250W (GBESS), switchable | | Protective Glass Dome | Yes | | Dimensions | Power Pack: 11.5 x 7.5 x 10.25" (29.2 x 19 x 26cm)
Each Flash Head: 6.5 x 4.5 x 7" (16.5 x 11.4 x 17.7 cm) | | Weight | Pack: 12.26 lbs (8.2 kg), Head: 1.8 lbs (.82 kg) | | Kit Weight | 23.4 lbs (10.6 kg) | | | | Package Weight | 44.75 lb | | Box Dimensions (LxWxH) | 46.4 x 19.0 x 13.4" |
