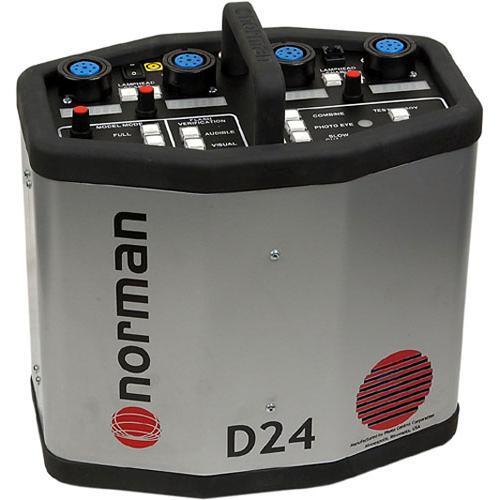

Product description - D24 2400 W/S Power Pack
- Operates with all Series 900 lampheads
4 Channel Control: Each head outlet has its own on-off switch
Power adjusts from full to -5 stops in .1 stop increments
All power levels are visible from the bright LED readouts
Audible "beep" and modeling lights "tracking" flash are switchable on or off

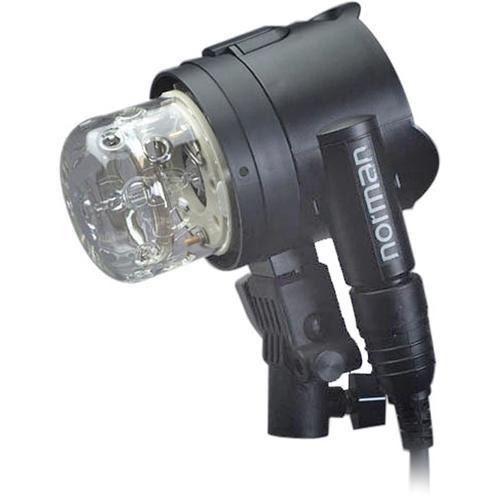

Fast recycling and flash duration - IL2500 Lamp Head
- 2400w/s plug-in vented UV coated quartz flashtube
Forced air fan cooling for better performance and longer life, especially when using softboxes
250W halogen modeling lights
20' detachable cable

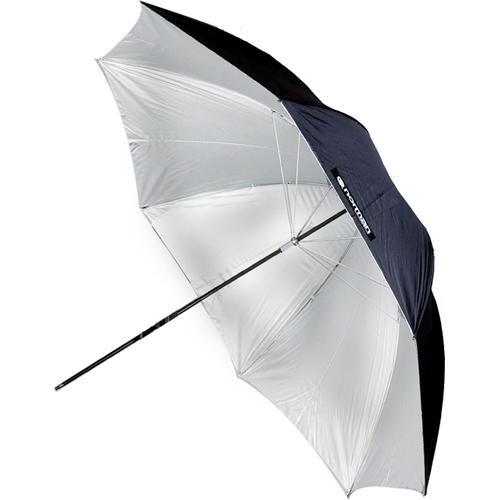

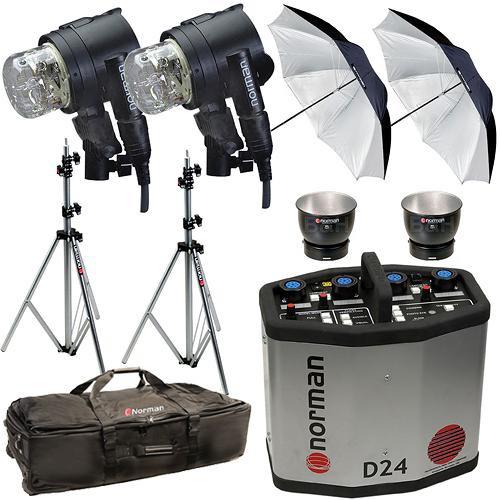

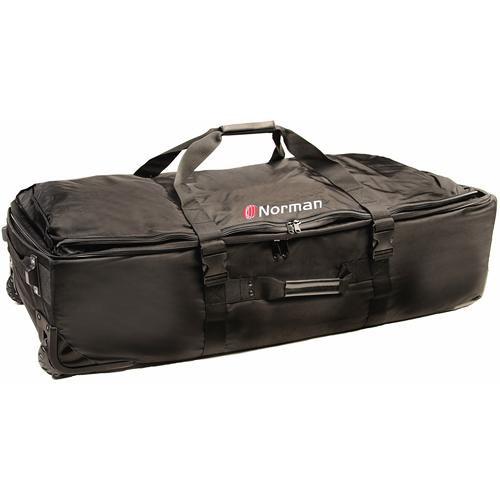

Protective glass dome UPC: 689670184779 In the Box Norman D24 Pack, 2- IL2500 Head/Reflector, Stands, Umbrellas, Case Kit D24 Power Pack - 2400 Watt/Seconds 2 x IL2500 Studio Lamphead 2 x 811814 5" Wide Angle Reflector, Type 2 for IL2500/TC 2 x Large Master Stand (12.75') 2 x 812745 Umbrella - White - 45" NONL03CS 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman D24 Pack, 2- IL2500 Head Reflector, Stands, Umbrellas, Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman D24 Specs | Maximum Watt/Seconds | Power Pack: 2400
Each Flash Head: 2500 | | Guide Number | 320 @ 10', ISO 100, no reflector | | Recycle Time | Minimum power: 0.6 sec, Maximum power: 2.6 sec | | Flash Duration | t 0.5: 1/4800 sec @ min power, 1/800 sec @ 2400 w/s | | Head Outlets | 4 | | Flash Ready Indicator | LED, audible | | Built-in Slave Cell | Switchable infrared, optical | | Circuit Protection | Yes | | Fan Cooled | Power Pack: Yes, Flash Heads: Yes | | User Replaceable Flashtube | Yes (FQ5UV) | | Changeable Reflector | Yes, Norman series 900 Reflectors | | Cable Length | 20' (6M) | | Modeling Light Wattage | 250W (GBESS), switchable | | Protective Glass Dome | Yes | | Dimensions | Power Pack: 11.5 x 7.5 x 10.25" (29.2 x 19 x 26cm)
Each Flash Head: 6.5 x 4.5 x 7" (16.5 x 11.4 x 17.7 cm)
Kit in Case: 18 x 44 x 13" (45.7 x 71.1 x 33 cm) | | Weight | Pack: 18 lbs (8.2 kg), Head: 1.8 lbs (.82 kg) | | Kit Weight | 45.3 lbs (20.5 kg) | | | | Package Weight | 73.8 lb | | Box Dimensions (LxWxH) | 46.0 x 19.0 x 13.0" |
