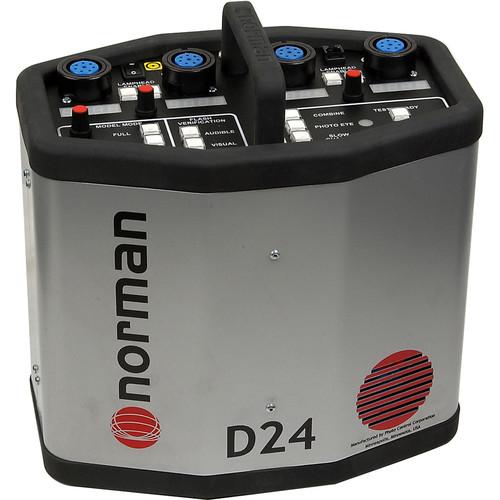

User Manual for Norman D24 Power Pack - 2400 Watt Seconds Click to enlarge the picture
Contents of the user manual for the Norman D24 Power Pack - 2400
- Product category: Uncategorized Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Uncategorized
|
User manual for the Norman D24 Power Pack - 2400 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|
Product description The Norman D24 power supply operates with all Series 900 Commercial lampheads. The D24 is a compact 2400 watt/second power supply, making it an ideal unit for location flash photography. The power adjusts from full to -5 stops in .1 stop increments. All power levels are visible from the bright LED readouts.In the symmetrical mode, the circuit has two 1200 w/s channels. Each channel supports two heads, and each features a separate continuous sweep flash dimming dial. A Slow Charge selector allows use of the pack on location where there is sub-par wiring. - 4 Channel Control
- Each head outlet has its own on-off switch.
- Flash Ready Indication
- Both Audible "beep" and modeling lights "tracking" flash are switchable on or off.
- Fast Flash Duration
- Short flash duration of 1/1600 sec at full power. Useful for freezing motion and preventing under-exposures due to the flash being clipped off by the camera shutter.
- Consistent Output
- Flash output varies less than 1/20 stop even when line voltage varies up to 25V.
- Fast Recycle Time
- Requires only 2.6 seconds at full power.
In the Box Norman D24 Power Pack - 2400 Watt/Seconds Power Cord Phono to PC Sync Cord 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman D24 Power Pack - 2400 Watt Seconds in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Watt /Seconds | 2400 divided into 2- 1200 w/s channels | | Guide Number | 320 @ 10', ISO 100, no reflector | | Recycle Time | Minimum 0.6 sec, Max 2.6 seconds | | Flash Duration | (t 0.5) 1/4800 sec @ min power, 1/800 sec @ 2400 w/s | | Flash Variability | 5 f/stops | | Voltage Stabilization | +- 1% | | Distribution | Asymmetrical or Symmetrical | | Head Outlets | 4, each with on-off switch | | Flash Ready Indicator | Visual by modeling light tracking flash.
Switchable Audible Beep | | Operating Voltage | 105-125V AC 60Hz | | Sync Voltage | 6V DC | | Built-in Slave Cell | Yes | | Circuit Protection | 15A fuse | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | 11.5 x 7.5 x 10.25" (29.2 x 19 x 26 cm) | | Weight | 18 lb (8.2 kg) |
