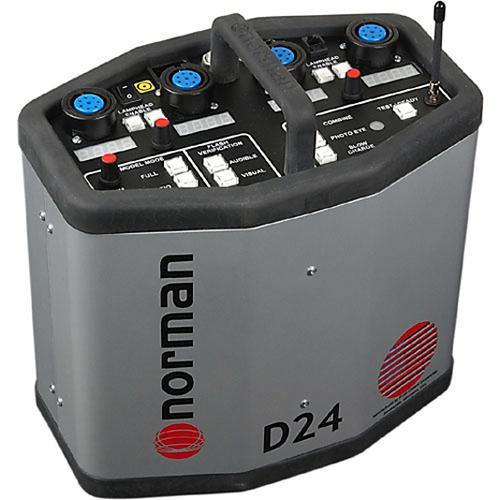

Product description - D24R 2400 W/S Power Pack w/ PocketWizard Receiver
- Operates with all Series 900 lampheads
4 Channel Control: Each head outlet has its own on-off switch
Power adjusts from full to -5 stops in .1 stop increments
All power levels are visible from the bright LED readouts
Audible "beep" and modeling lights "tracking" flash are switchable on or off
Fast recycling and flash duration

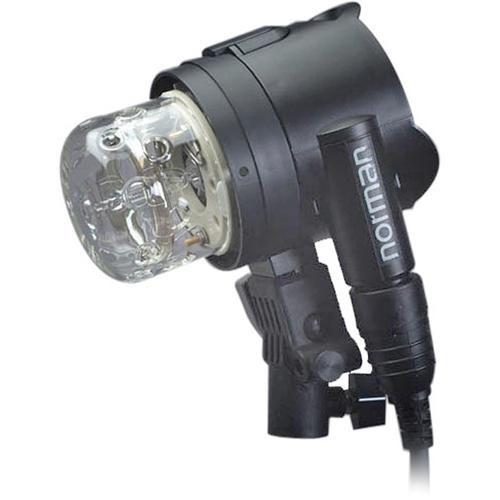

Built-in PocketWizard receiver for wireless triggering - IL2500 Lamp Head
- 2400w/s plug-in vented UV coated quartz flashtube
Forced air fan cooling for better performance and longer life, especially when using softboxes
250W halogen modeling lights
20' detachable cable

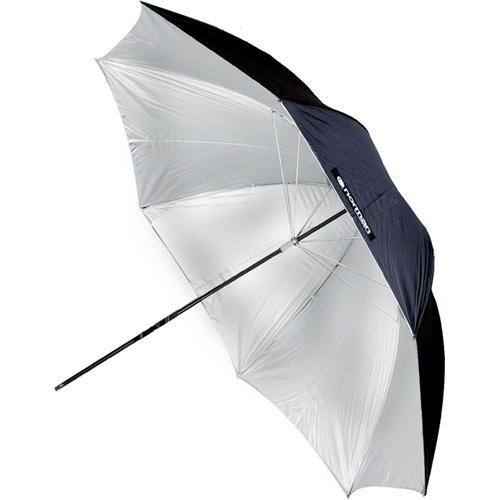

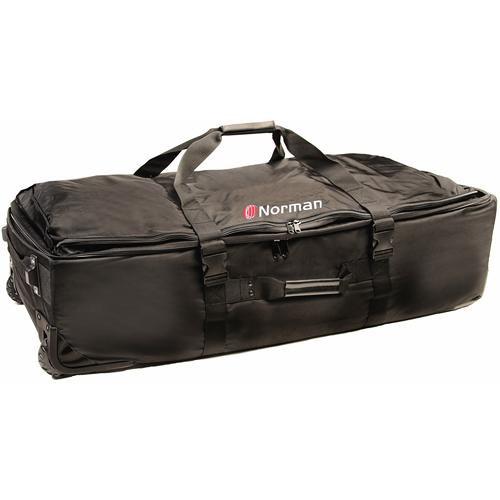

Protective glass dome UPC: 689670184502 In the Box Norman D24R Pack, 2- IL2500 Head/Reflector, Stands, Umbrellas, Case Kit (115VAC) D24R Radio Slave Power Pack - 2400 Watt/Seconds bcwuvadrcsxxfxyubt 2 x IL2500 Studio Lamphead 2 x 810728 5" Wide Angle Reflector, Type 1 for LH4 2 x Large Master Stand (12.75') 2 x 812745 Umbrella - White - 45" NL03CS Soft Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman D24R Pack, 2- IL2500 Head Reflector, Stands, Umbrellas, Case Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman D24R Specs | Maximum Watt/Seconds | Power Pack: 2400
Each Flash Head: 2500 | | Guide Number | 320 @ 10', ISO 100, no reflector | | Recycle Time | Minimum power: 0.6 sec, Maximum power: 2.6 sec | | Flash Duration | t 0.5: 1/4800 sec @ min power, 1/800 sec @ 2400 w/s | | Head Outlets | 4 | | Flash Ready Indicator | LED, audible | | Built-in Slave Cell | 32 channel Pocket Wizard Radio, switchable infrared, optical | | Circuit Protection | Yes | | Fan Cooled | Power Pack: Yes, Flash Heads: Yes | | User Replaceable Flashtube | Yes (FQ5UV) | | Changeable Reflector | Yes | | Cable Length | 20' (6M) | | Modeling Light Wattage | 250W (GBESS), switchable | | Power Requirements | 115VAC, 60Hz | | Protective Glass Dome | Yes | | Dimensions | Power Pack: 11.5 x 7.5 x 10.25" (29.2 x 19 x 26cm)
Each Flash Head: 6.5 x 4.5 x 7" (16.5 x 11.4 x 17.7 cm)
Kit in Case: 18 x 44 x 13" (45.7 x 71.1 x 33 cm) | | Weight | Pack: 18 lbs (8.2 kg), Head: 1.8 lbs (.82 kg) | | Kit Weight | 45.3 lbs (20.5 kg) | | | | Package Weight | 73.0 lb | | Box Dimensions (LxWxH) | 46.0 x 20.0 x 13.0" |
