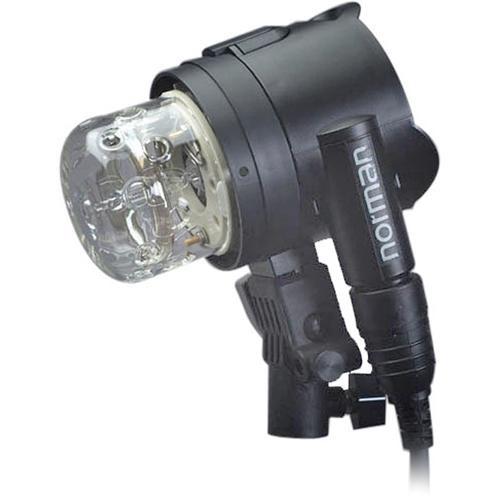

User Manual for Norman IL2500 - 2500 Watt Second Studio Lamphead Click to enlarge the picture
Contents of the user manual for the Norman IL2500 - 2500 Watt Second
- Product category: Power Pack Heads Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Power Pack Heads
|
User manual for the Norman IL2500 - 2500 Watt Second contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|
Product description The IL2500 is Norman's finest lamphead, featuring a maximum output of 2500 w/s. This unit is compact, highly efficient, and features thermostatic cutoff in case of a fan failure. It includes a quick disconnect cable, full vertical tilt capability, snap in arc-resistant connectors, high-impact 400° rated housing, a 20'cable, fan cooling, improved modeling accuracy, 115/230V operation, long-life UV coated quartz flashtube, easy-to-reach modeling lamp switch and numerous accessory items. It is the ultimate lamphead for all Norman Series 900 power supplies; P12/12, P24/24, P40/40, P800D, P2000D and all previous Series 900 units. Plug in the FQ5-UV flashtube and use the IL2500 with all Norman studio reflectors. Spring pin mounted reflectors are "type 1" and the Illuminator precision-mounted reflectors are "type 2". Both types fit the Illuminator 2500. A power supply for this flash head is required. - Compact Design
- Tilt-control, and umbrella receptor located near each other.
The housing is also contoured to provide a built-in carrying handle. - Easy to Control
- The moon-shaped housing enables this unit to tilt full vertical without obstruction from the bracket.
- Easily Replaceable Flashtube
- 2500w/s plug-in vented UV coated quartz flashtube.
- Fan Cooled
- Forced Air Fan cooling for better performance and longer life, especially when using softboxes.
- Removeable Reflector
- Both Type 1 and Type 2 Norman reflectors can be used
- Modeling Light
- Norman lampheads feature halogen modeling lights that burn brighter and last significantly longer than a non-halogen incandescent bulb.
- Long-Reaching Cable
- The 20' detachable cable included. Minimizes the need for extension cables. However, additional 20' cables may be added when the head is uesed at longer distances from the power pack.
UPC: 686970170815 In the Box Norman IL2500 - 2500 Watt/Second Studio Lamphead 20' R2000 detachable lamphead cable UV Coated Quartz Flashtube (FQ5UV) 250W Quartz Halogen Modeling Lamp (ESS) Quick-disconnect R9112 Reflector Ring 2 year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman IL2500 - 2500 Watt Second Studio Lamphead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman IL2500 Specs Maximum Watt/Seconds | 2400 Watt/Seconds | User Replaceable Flashtube | Yes (FQ5UV) | Changeable Reflector | Yes, Norman series 900 Reflectors | Circuit Protection | Fuse | Cable Length | 20' (6M) | Modeling Light Wattage | 250W, 120V | Modeling Light On/Off Switch | Yes | Protective Glass Dome | Yes | Fan Cooled | Yes | Dimensions | 6.5 x 4.5 x 7" (16.5 x 11.4 x 17.7 cm) | Weight | 1.8lbs (.82 kg) | | Package Weight | 5.2 lb | Box Dimensions (LxWxH) | 11.0 x 10.2 x 6.5" |
