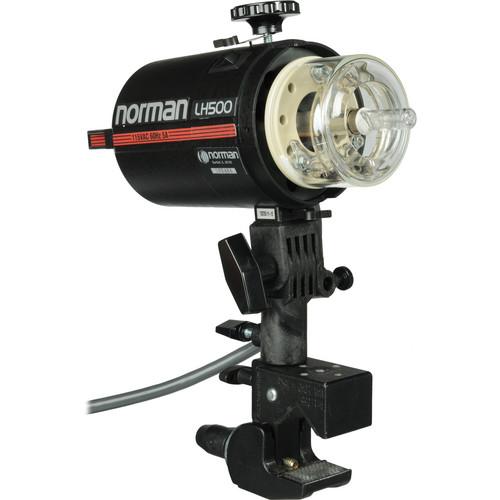

User Manual for Norman LH500B - 600 Watt Second Lamphead with Blower Click to enlarge the picture
Contents of the user manual for the Norman LH500B - 600 Watt Second
- Product category: Power Pack Heads Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Power Pack Heads
|
User manual for the Norman LH500B - 600 Watt Second contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|
Product description The Norman LH500B lamphead is similar to the standard head except that this version includes a fan. All other specifications are the same. The LH500B is a 600 w/s studio lamphead with a cooling fan for use with soft boxes, grids, filters or gels. The fan provides a constant speed when the modeling lamp is dimmed, and it operates on 115 or 230V circuits. It operates with all Norman Series 500 power supplies including the P404, P808M, P808M/TLC and P808-1200/TLC. Its features include a high-impact resin housing that won't dent or scratch, and a modeling lamp on-off switch. A power supply for this flash head is required. - Compact Design
- The LH500B is one of the most compact, and easy to transport heads in the Norman Studio Line.
- Easy to Control
- One tilt control knob is located on top, the other is part of the stand mount. The integrated umbrella receptor is located right below the head.
- Easily Replaceable Flashtube
- The plug-and-play FT6-UV quartz flashtube is easily replaceable to enable the photographer to quickly get back to the assignment.
- Fan Cooled
- Allows the head to be used with light modifiers placed in front of the unit.
- Removeable Reflector
- All Series 5 reflectors, giving the photographer a full array of choices for shaping the light output.
- Modeling Light
- Norman lampheads feature halogen modeling lights that burn brighter and last significantly longer than a non-halogen incandescent bulb. This head features an on/off switch for the modeling light.
- Long Reaching Cable
- A 20' cable comes attached to the head. Head cable extension cables may be added when the head is used at longer distances from the power pack.
UPC: 689670171441 In the Box Norman LH500B - 600 Watt/Second Lamphead with Blower 20' cable FT6UV Coated Flashtube 150W Quartz Modeling Lamp 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman LH500B - 600 Watt Second Lamphead with Blower in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman LH500B Specs | Maximum Watt/Seconds | 600 w/s | | User Replaceable Flashtube | Yes, NOFT6UV | | Changeable Reflector | Yes, Norman series 500 Reflectors | | Circuit Protection | Fuse | | Cable Length | 20' (6M) | | Modeling Light Wattage | 150W, 120V | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Yes | | Fan Cooled | Yes | | Dimensions | 9 x 4.5 x 7" (22.8 x 11.4 x 17.7cm) | | Weight | 3.5lbs (1.6kg) | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 10.9 x 10.5 x 5.6" |
