User Manual for Norman LH500P - 1200 Watt Second Lamphead Click to enlarge the picture
Contents of the user manual for the Norman LH500P - 1200 Watt Second
- Product category: Power Pack Heads Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Power Pack Heads
|
User manual for the Norman LH500P - 1200 Watt Second contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|

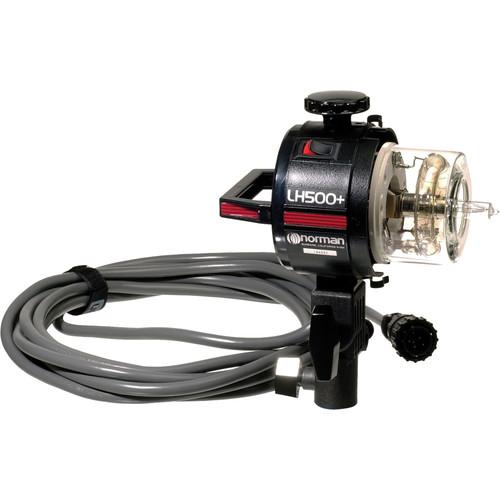

Product description The Norman LH500P lamphead is similar to the LH500, but utilizes an FT16-UV (1200 w/s) flashtube. This head can be used with the 808M power supply, where maximum power is required on a single lamphead. It operates with all Norman Series 500 power supplies including the P404, P808M, P808M/TLC and P808-1200/TLC. Its features include a high-impact resin housing that won't dent or scratch, and a modeling lamp off-on switch.
Note - Fan cooling is required when cutting off the air flow through the lamphead with gel filters, grid, or softboxes. The head is available with a fan (LH500BP) for more demanding applications. A power supply for this flash head is required. - Compact Design
- Because this head has no cooling fan, it is one of the most compact and easily transportable head in the Norman Studio Line.
- Easy to Control
- One tilt control knob is located on top, the other is part of the stand mount. The integrated umbrella receptor is located right below the head.
- Easily Replaceable Flashtube
- The plug-and-play FT16-UV quartz flashtube is easily replaceable to enable the photographer to quickly get back to the assignment.
- Removeable Reflector
- Norman lampheads feature halogen modeling lights that burn brighter and last significantly longer than a non-halogen incandescent bulb. This head features an on/off switch for the modeling light.
- Modeling Light
- Norman lampheads come standard with a protective glass dome that surrounds the flashtube for an added margin of safety.
- Long Reaching Cable
- A 20' cable comes attached to the head. Head cable extension cables may be added when the head is used at longer distances from the power pack.
UPC: 689670171434 In the Box Norman LH500P - 1200 Watt/Second Lamphead 20' cable FT16UV Coated Flashtube 150W Quartz Modeling Lamp 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman LH500P - 1200 Watt Second Lamphead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman LH500P Specs | Maximum Watt/Seconds | 1200 w/s | | User Replaceable Flashtube | Yes, NOFT16UV | | Changeable Reflector | Yes, Norman series 500 Reflectors | | Circuit Protection | Fuse | | Cable Length | 20' (6 M) | | Modeling Light Wattage | 150W, 120V | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Yes | | Fan Cooled | No | | Dimensions | 6.5 x 4.5 x 7" (16.5 x 11.4 x 17.7 cm) | | Weight | 2.8lbs (1.3kg) | | | | Package Weight | 3.86 lb | | Box Dimensions (LxWxH) | 11.0 x 10.0 x 6.0" |
