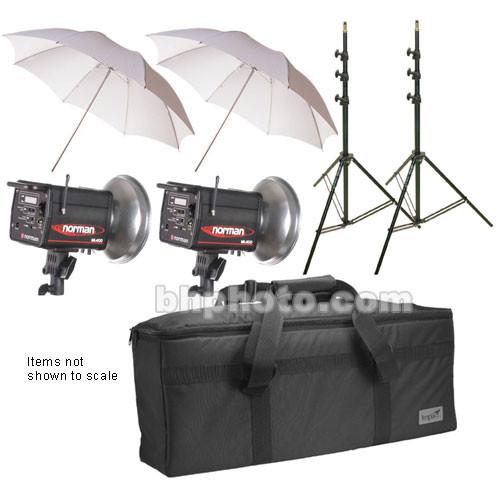

Norman ML400R 2 Monolight Kit

User Manual for Norman ML400R 2 Monolight Kit

• Product category: Monolights Norman
• Brand: Norman
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Norman Monolights

Product description

• 2 x Norman ML400R 400 Watt/Second Monolight, Radio Slave (120V) The Norman ML400R Monolight is a self-contained 400 watt/second flash unit with a built-in PocketWizard Radio receiver. The Pocket Wizard allows wireless triggering of this unit from your Pocket Wizard, Pocket Wizard Plus transmitter, or Pocket Wizard MultiMax transceiver.The 810644 accepts over 100 Norman accessories and light modifiers including softboxes, reflectors, grids, snoots and barn doors, using the included R9113 Adapter Rings.A digital readout displays accurate, repeatable settings up to 400 watt/seconds in 1/10 stop increments. It recycles in 1.5 seconds @ full power.
  Fires Without Wires
  • Built-in Pocket Wizard Radio Slave Receiverdfzvtsbxuyerv
  Five F-Stop Range
  • Drops down to 1/32 power, allowing more choices of lens apertures.
  Dual Scale Power Adjustments
  • The controls on this 400 watt/second Monolight allow power adjustments in either watt/seconds or f/stops.
  Precision Control
  • Digital interface adjustable in 0.1 stop increments.
  Fan Cooled
  • Low noise, high performance fan offers increased protection during the most demanding applications.
  Built-In Slave
  • Switchable optical slave synchronization with other flashes.
  User Replaceable Flashtube
  • No tools are required to replace this "plug & play" flashtube.
  Thermostat Protection
  • Automatic shut-off if the unit becomes too hot.
  Auto Dump Function
  • Gain access to lower power selections without the need to manually dump a higher power first.
  UPC: 689670170918
• Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
  • The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
  • The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
  • 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
  • Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
  • Touch fastened protective nylon tray separates light stands and umbrellas from monolights
  • Water-resistant padded nylon construction
  • Folds down to less then 4" for convenient storage and easy setup
  • Dual zippered opening; accepts user-supplied lock
  UPC: 847628030619
• 2 x Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292
• 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626

• 2 x ML400R 400 Watt/Second Monolight, Radio Slave (120V) dfzvtsbxuyerv
• Built-in Pocket Wizard Radio Slave Receiver
• 812066 Flashtube for ML400, 600 Monolights - UV
• ESS Lamp - 250W/120V
• 812451 Sync Cable - 15' Straight Male PC to Phono 1/4" Male
• 7" Reflector for ML400 and 600 Monolight
• R9113 Adapter Ring
• AC Power Cable - 110V, 15'
• Metal Protective Cover
• Limited 2-Year Warranty

• Impact - Light Kit Bag #2 (34 x 13.5 x 12")

• 2 x Impact - Umbrella - White Translucent (43")

• 2 x Impact - Air-Cushioned Light Stand (Black, 10')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Norman ML400R 400 Watt/Second Monolight, Radio Slave (120V)

  Maximum Power	400 Ws
  Power Control	5 Stops in 1/10-Stop Increments
  Guide Number	108' / 32.9 m at ISO100
  Flash Duration	1/1000 Sec (Full Power)
  Recycle Time	1.5 Sec (Full Power)
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Photogenic

  Type	Tungsten
  Wattage	150 W

  Sync Type	Optical, Radio
  Sync Voltage	6 V

  AC Input Voltage	105to125 VAC, 60 Hz
  Circuit Protection	Circuit Breaker, Overheat Cutout
  Fuse	10 A

  Display	None
  Auto Dump	Yes
  Fan Cooled	Yes
  Dimensions	H: 5.0 x W: 5.0 x L: 6.5" / H: 12.7 x W: 12.7 x L: 16.5 cm
  Weight	5 lb / 2.27 kg

  Box Dimensions (LxWxH)	16.3 x 11.7 x 10.5"

• Impact Light Kit Bag #2 (34 x 13.5 x 12")

  Interior Dimensions	34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm
  Weight	5.8 lb / 2.6 kg

  Box Dimensions (LxWxH)	35.0 x 14.0 x 12.5"

• 2 x Impact White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 2.7 x 1.65"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"
