User Manual for Norman ML600 600Ws Monolight Click to enlarge the picture
Contents of the user manual for the Norman ML600 600Ws Monolight
- Product category: Uncategorized Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Uncategorized
|
User manual for the Norman ML600 600Ws Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|

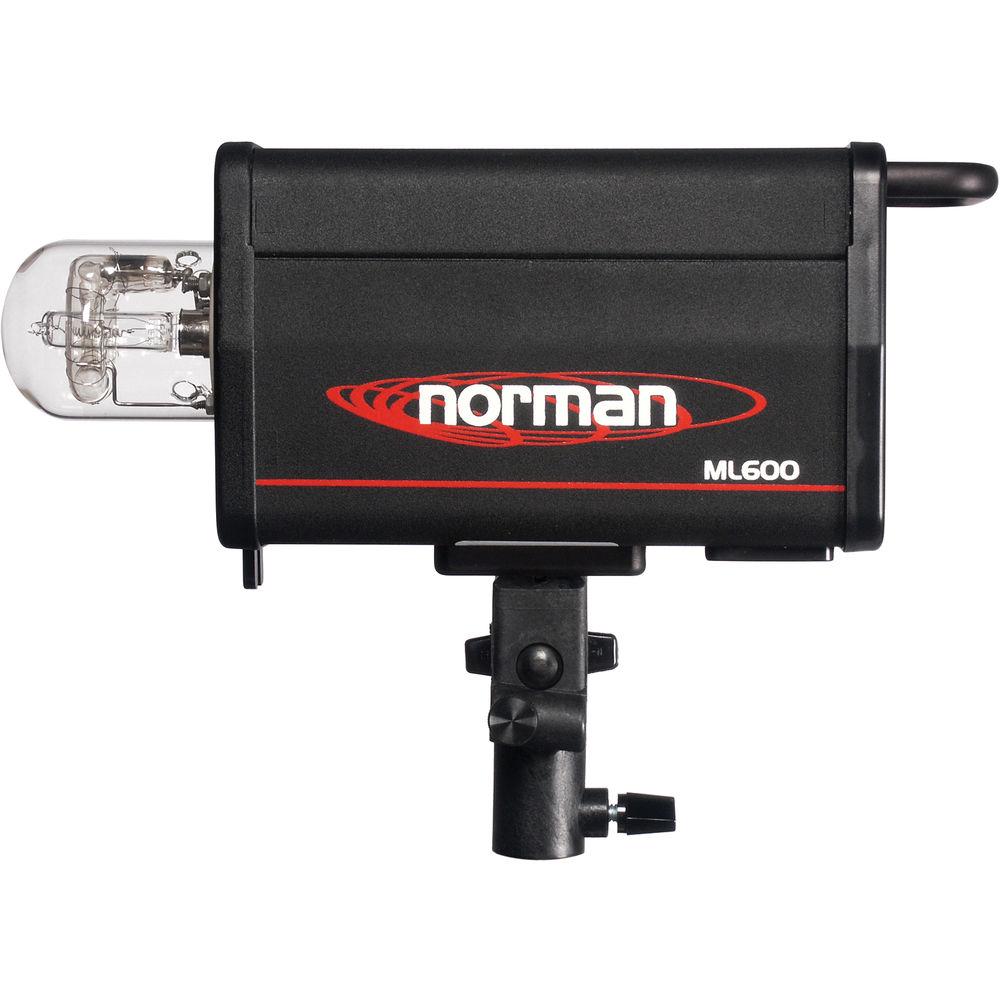

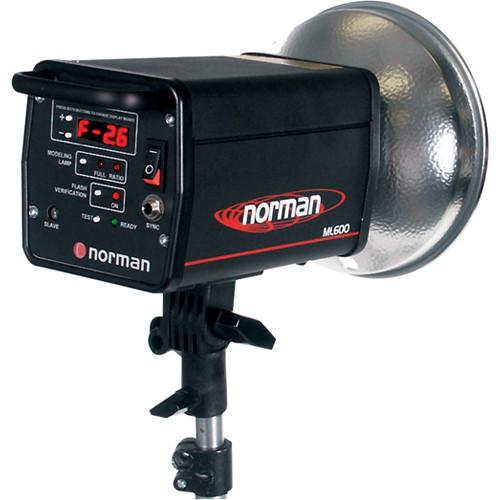

Product description The Norman ML600 600Ws Monolight combines durability with the versatility of today's advanced electronics. The controls on this flash head allow power adjustments in either Ws or f/stops. A digital readout displays accurate, repeatable settings from 18 to 600Ws in 1/10 stop increments. - Accepts Photogenic reflectors and accessories.
- Compatible with over 100 Norman accessories and light modifiers using R9113 Adapter Ring, available separately.
- Digital interface adjustable in 1/10 stop increments.
- Low noise, high performance fan offers increased protection during the most demanding applications.
- Switchable optical slave synchronization with other flashes.
- No tools are required to replace this "plug & play" flashtube.
- Automatic shut-off if the unit becomes too hot.
- Gain access to lower power selections without the need to manually dump a higher power first.
In the Box Norman ML600 600Ws Monolight Flashtube (FQ8) 250W Frosted Modeling Light (ESS) 7" All Purpose Reflector Sync Cord Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman ML600 600Ws Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters | Maximum Power | 600 Ws | Power Control | 5 Stops in 1/10-Stop Increments | Guide Number | 135' / 41.1 m at 10' / 3 m, ISO100 | Flash Duration | 1/1200 Sec (Full Power) | Recycle Time | 2 Sec (Full Power) | Flash Ready Indicator | Audio, Visual | Accessory Fitting Type | Photogenic | | Type | Tungsten | Wattage | 250 W | | Sync Type | Optical | Interface | 1/4" Sync | Sync Voltage | 6 V | | AC Input Voltage | 105to135 VAC, 60 Hz | Circuit Protection | Circuit Breaker, Overheat Cutout | Fuse | 10 A | | Display | None | Auto Dump | Yes | Fan Cooled | Yes | Dimensions | H: 5.0 x W: 5.0 x L: 7.4" / H: 12.7 x W: 12.7 x L: 18.8 cm | Weight | 6.0 lb / 2.7 kg |
