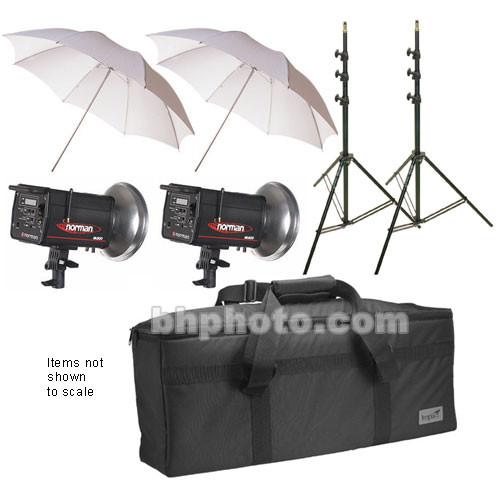

User Manual for Norman ML600R 2 Monolight Kit Click to enlarge the picture
Contents of the user manual for the Norman ML600R 2 Monolight Kit
- Product category: Monolights Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Monolights
|
User manual for the Norman ML600R 2 Monolight Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|
Product description The Norman ML600R is a self-contained 600 w/s flash unit with a built-in Pocket Wizard Radio Slave Receiver. The Pocket Wizard allows wireless triggering of this unit from your Pocket Wizard, Pocket Wizard Plus transmitter, or Pocket Wizard MultiMax transceiver.This is a B&H Norman ML600R 2 Monolight 1200 W/s Kit. It includes umbrellas for softening the light, light stands, and a kit case. The ML600R accepts over 100 Norman accessories and light modifiers including softboxes, reflectors, grids, snoots and barn doors, using R9113 Adapter Ring.A digital readout displays accurate, repeatable settings from 18 to 600 watt-seconds in 1/10 stop increments. It recycles in 2 seconds @ full power. - 2 x Norman ML600R Monolight (#810653) The Norman ML600R Monolight (#810653) is a self-contained 600 w/s flash unit with a built-in Pocket Wizard Radio Slave Receiver. The Pocket Wizard allows wireless triggering of this unit from your Pocket Wizard, Pocket Wizard Plus transmitter, or Pocket Wizard MultiMax transceiver. The 810653 accepts over 100 Norman accessories and light modifiers including softboxes, reflectors, grids, snoots and barn doors, using R9113 Adapter Ring.A digital readout displays accurate, repeatable settings from 18 to 600 watt-seconds in 1/10 stop increments. It recycles in 2 seconds @ full power.
- Fires Without Wires
- Triggers from any Pocket Wizard Plus (channels 1-4), original Pocket Wizard (channels 1-16), or Pocket Wizard Multimax (channels 1-32).
- 5 F-Stop Range
- Drops down to 1/32 power, allowing more choices of lens apertures.
- Dual Scale Power Adjustments
- The controls on this 600 watt-second Monolight allow power adjustments in either watt-seconds or f/stops.
- Precision Control
- Digital interface adjustable in .1 stop increments.
- Fan Cooled
- Low noise, high performance fan offers increased protection during the most demanding applications.
- Built-In Slave
- Switchable optical slave synchronization with other flashes.
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Thermostat Protection
- Automatic shut-off if the unit becomes too hot.
- Auto Dump Function
- Gain access to lower power selections without the need to manually dump a higher power first.
UPC: 689670170949 - Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
- The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
- The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
- 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
- Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
- Touch fastened protective nylon tray separates light stands and umbrellas from monolights
- Water-resistant padded nylon construction
- Folds down to less then 4" for convenient storage and easy setup
- Dual zippered opening; accepts user-supplied lock
UPC: 847628030619 - 2 x Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292
- 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
- Air-Cushioned
- Protects equipment and fingers from damage
- Compact Design
- Will fit easily into most location cases
- Accepts Casters
- For easy positioning of lights
UPC: 847628030626 In the Box - 2 x ML600R Monolight (#810653) cwftxceuaybfdudbcttsqeb
- Pocket Wizard Radio Slave Receiver
- Flashtube (FQ8)
- 250W Frosted Modeling Light (ESS)
- Monoplug Sync Cord
- 110V AC Power Cord
- Limited 2-Year Warranty
- Impact - Light Kit Bag #2 (34 x 13.5 x 12") cwftxceuaybfdudbcttsqeb
- 2 x Impact - Umbrella - White Translucent (43")
- 2 x Impact - Air-Cushioned Light Stand (Black, 10')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman ML600R 2 Monolight Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Norman ML600R Monolight (#810653)
| Maximum Power | 600 Ws | Power Control | 5 Stops in 1/10-Stop Increments | Guide Number | 135' / 41.1 m at 10' / 3 m, ISO100 | Flash Duration | 1/1200 Sec (Full Power) | Recycle Time | 2 Sec (Full Power) | Flash Ready Indicator | Audio, Visual | Reflector | Changeable | Accessory Fitting Type | Photogenic | | Type | Tungsten | Wattage | 250 W | | Sync Type | Optical, Radio | Sync Voltage | 6 V | | AC Input Voltage | 105to125 VAC, 60 Hz | Circuit Protection | Circuit Breaker, Overheat Cutout | Fuse | 15 A | | Display | None | Auto Dump | Yes | Fan Cooled | Yes | Dimensions | H: 5.0 x W: 5.0 x L: 7.4" / H: 12.7 x W: 12.7 x L: 18.8 cm | Weight | 6 lb / 2.7 kg | | Box Dimensions (LxWxH) | 16.221 x 11.732 x 10.551" | - Impact Light Kit Bag #2 (34 x 13.5 x 12")
| Interior Dimensions | 34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm | | Closure Type | Zipper | Carry and Transport Options | 2 x Connecting Handstrap | Material of Construction | Nylon | Exterior Dimensions (W x H x D) | 34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm | Weight | 5.8 lb / 2.6 kg | | Box Dimensions (LxWxH) | 35.0 x 14.0 x 12.5" | - 2 x Impact White Translucent Umbrella (43")
Size | 43.0" / 109.2 cm | Interior | White (Translucent) | Shaft Diameter | 8 mm | Folded Size | L: 28.3" / L: 71.8 cm | | Box Dimensions (LxWxH) | 29.0 x 2.7 x 1.65" | - 2 x Impact Air-Cushioned Light Stand (Black, 10')
Maximum Load | 8.5 lb (3.8 kg) | Maximum Height | 121.5" (308.6 cm) | Minimum Height | 40.5" (102.9 cm) | Closed Length | 33.5" (85 cm) | Footprint Diameter | 38" (96.5 cm) | Leg Tip | 0.8" (20 mm) | Attachment Size | 5/8" (16 mm) stud with 1/4"-20 male threads | Accepts Wheels | Yes, casters | Air Cushioned | Yes | Weight | 2.4 lb (1.1 kg) | | Box Dimensions (LxWxH) | 34.0 x 3.0 x 3.0" |
