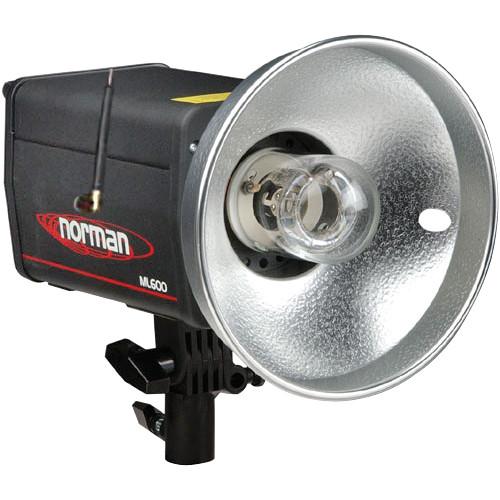

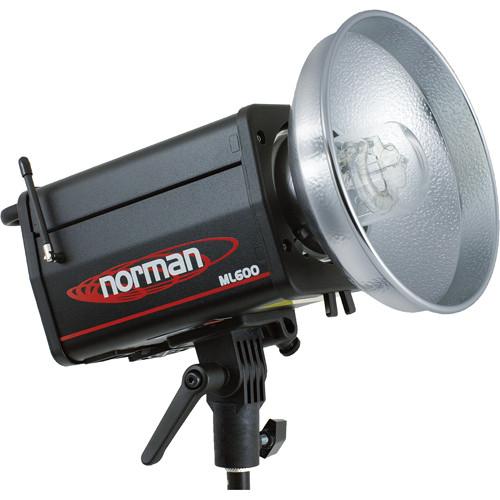

Product description The Norman ML600R Monolight (#810653) is a self-contained 600 w/s flash unit with a built-in Pocket Wizard Radio Slave Receiver. The Pocket Wizard allows wireless triggering of this unit from your Pocket Wizard, Pocket Wizard Plus transmitter, or Pocket Wizard MultiMax transceiver. The 810653 accepts over 100 Norman accessories and light modifiers including softboxes, reflectors, grids, snoots and barn doors, using R9113 Adapter Ring.A digital readout displays accurate, repeatable settings from 18 to 600 watt-seconds in 1/10 stop increments. It recycles in 2 seconds @ full power. - Fires Without Wires
- Triggers from any Pocket Wizard Plus (channels 1-4), original Pocket Wizard (channels 1-16), or Pocket Wizard Multimax (channels 1-32).
- 5 F-Stop Range
- Drops down to 1/32 power, allowing more choices of lens apertures.
- Dual Scale Power Adjustments
- The controls on this 600 watt-second Monolight allow power adjustments in either watt-seconds or f/stops.
- Precision Control
- Digital interface adjustable in .1 stop increments.
- Fan Cooled
- Low noise, high performance fan offers increased protection during the most demanding applications.
- Built-In Slave
- Switchable optical slave synchronization with other flashes.
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Thermostat Protection
- Automatic shut-off if the unit becomes too hot.
- Auto Dump Function
- Gain access to lower power selections without the need to manually dump a higher power first.
UPC: 689670170949 In the Box Norman ML600R Monolight (#810653) Pocket Wizard Radio Slave Receiver Flashtube (FQ8) 250W Frosted Modeling Light (ESS) Monoplug Sync Cord 110V AC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman ML600R Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman ML600R Specs | | | Maximum Power | 600 Ws | | Power Control | 5 Stops in 1/10-Stop Increments | | Guide Number | 135' / 41.1 m at 10' / 3 m, ISO100 | | Flash Duration | 1/1200 Sec (Full Power) | | Recycle Time | 2 Sec (Full Power) | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Photogenic | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Optical, Radio | | Sync Voltage | 6 V | | | | AC Input Voltage | 105to125 VAC, 60 Hz | | Circuit Protection | Circuit Breaker, Overheat Cutout | | Fuse | 15 A | | | | Display | None | | Auto Dump | Yes | | Fan Cooled | Yes | | Dimensions | H: 5.0 x W: 5.0 x L: 7.4" / H: 12.7 x W: 12.7 x L: 18.8 cm | | Weight | 6 lb / 2.7 kg | | | | Package Weight | 10.2 lb | | Box Dimensions (LxWxH) | 16.221 x 11.732 x 10.551" |
