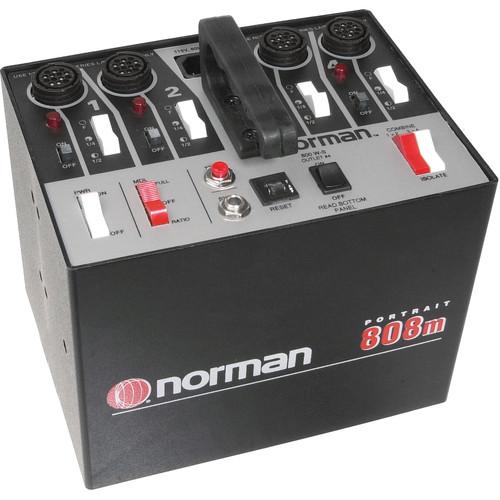

User Manual for Norman P808M - 800 Watt Second Power Supply Click to enlarge the picture
Contents of the user manual for the Norman P808M - 800 Watt Second
- Product category: Power Packs Norman
- Brand: Norman
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Norman Power Packs
|
User manual for the Norman P808M - 800 Watt Second contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Norman product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Norman user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Norman product will considerably shorten its lifespan!
|
Product description The Norman P808M Power Supply operates with all Series 500 lampheads.It has four 200 w/s output channels. Each light can be adjusted from 200, 100, 50 w/s or "off" without affecting the other lights. When using 3 lights, one lamphead can be switched to 400 w/s. When using 2 lights, both lampheads can be switched up to 400 w/s and when using 1 light, the lamphead can be switched to 800 w/s.The power supply is equipped with an audible alarm which beeps in the event of a lamphead misfire, making it an ideal choice for high volume school photography. The lamphead modeling lamps automatically track the flash outputs, verifying the recycle of the pack. - Individual Lamphead Control
- The Norman 808M allows the photographer to plug up to four lampheads into the power supply and to have individual control over each lamphead without affecting the other heads.
- Misfire Alarm
- The audible alarm beeps in the event of a lamphead misfire, making the P800m an ideal choice for high-volume photography.
- Flash Ready Indication
- The lamphead modeling lamps automatically track the flash outputs (switchable).
- Auto Dump Function
- Allows access to lower power selections without the need to manually dump a higher power first.
UPC: 689670170987 In the Box Norman P808M - 800 Watt/Second Power Supply Power Cord Sync Cord 2 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Norman P808M - 800 Watt Second Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNorman P808M Specs | Watt /Seconds | 800 w/s, divided into four channels, (200 w/s per channel). | | Guide Number | f/11.5 @ 10' (3M) @ ISO 100, with 5DL Reflector. | | Recycle Time | Minimum 0.3 sec.
Maximum 2.75 seconds. | | Flash Duration | (t 0.5) 1/900 sec. @ 50 w/s, 1/300 sec. @ 500 w/s. | | Flash Variability | 2 f/stops per channel. | | Voltage Stabilization | Yes | | Distribution | Asymmetrical | | Head Outlets | 4 | | Flash Ready Indicator | Visual by modeling light tracking flash. | | Operating Voltage | 115V AC | | Sync Voltage | 12-18V | | Built-in Slave Cell | No | | Circuit Protection | 15A fuse | | Fan Cooled | No | | Auto Dump | Yes | | Dimensions | 7 x 8.75 x 6.5 in. (17 x 22 x 16.5 cm) | | Weight | 9lbs 12oz (4.4kg) | | | | Package Weight | 13.0 lb | | Box Dimensions (LxWxH) | 13.8 x 13.3 x 13.3" |
