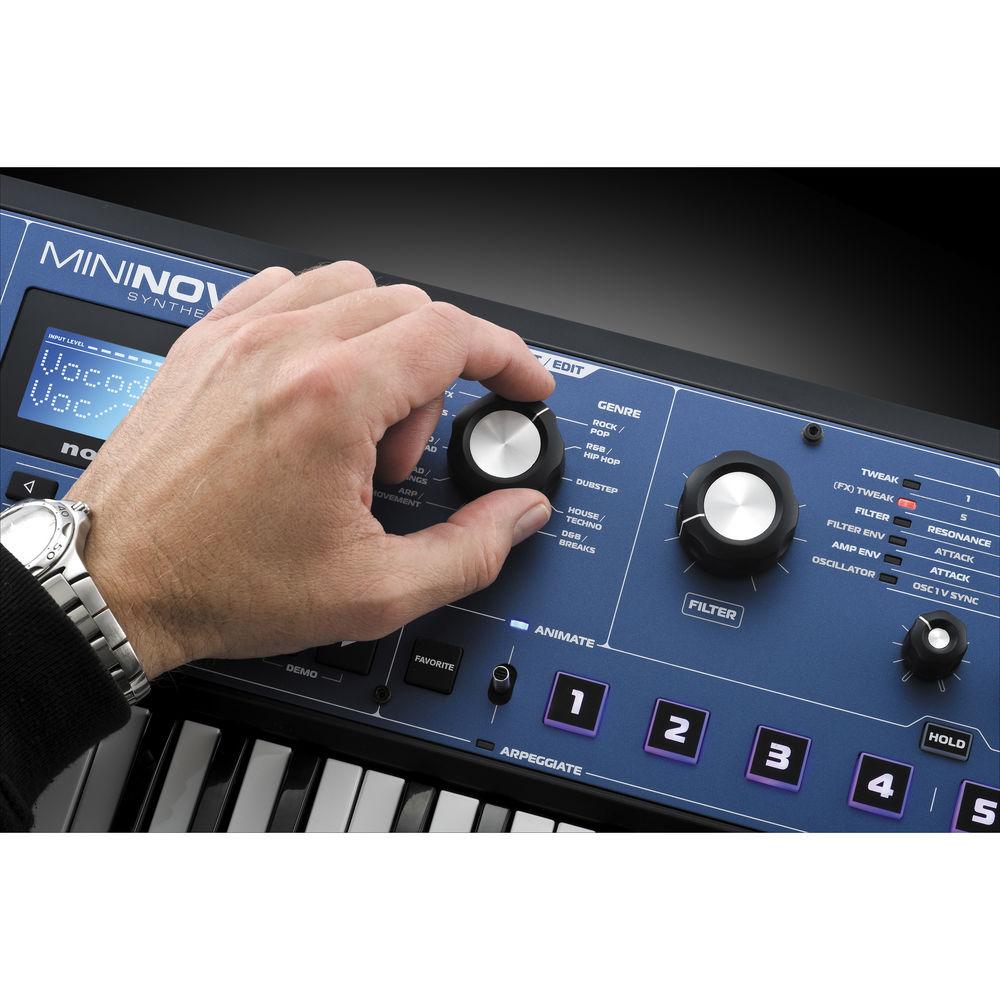

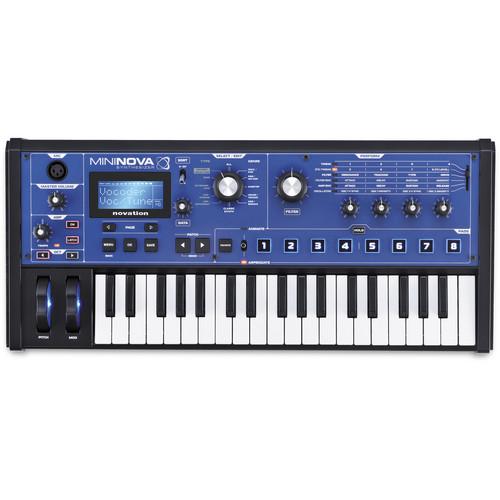

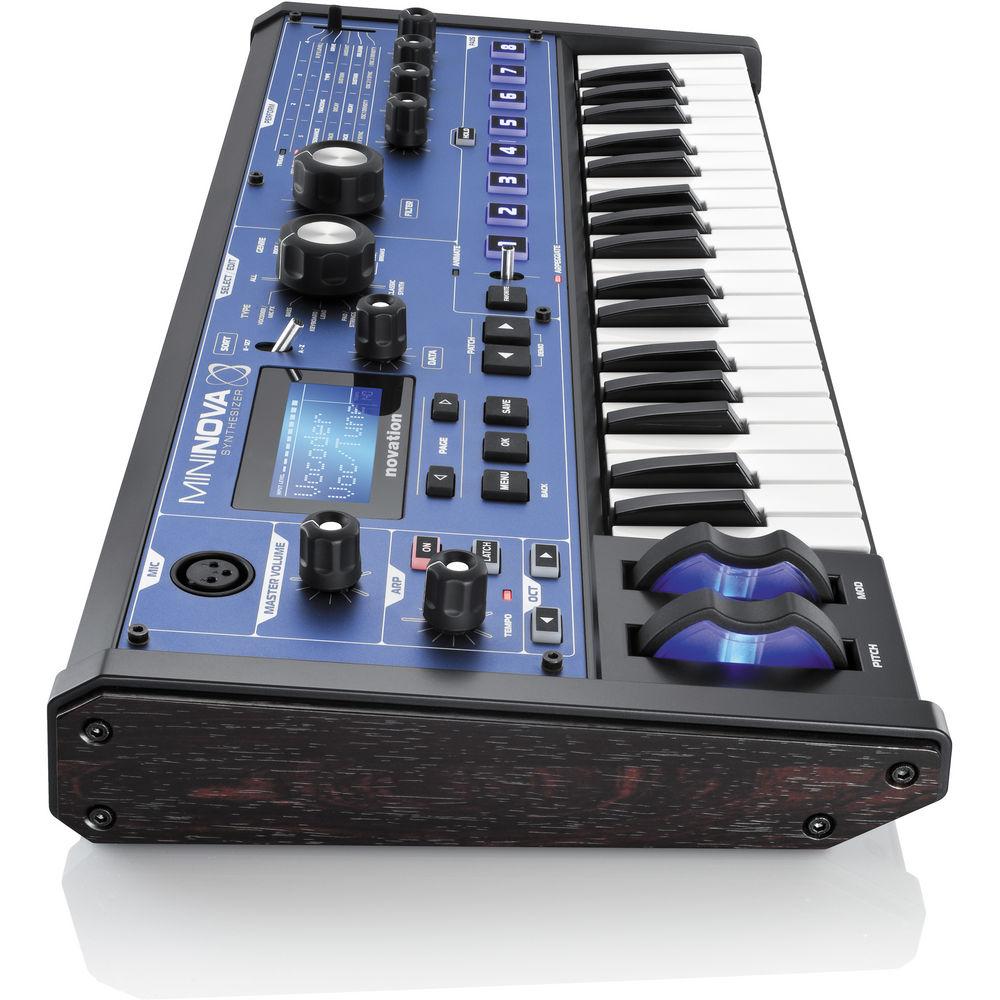

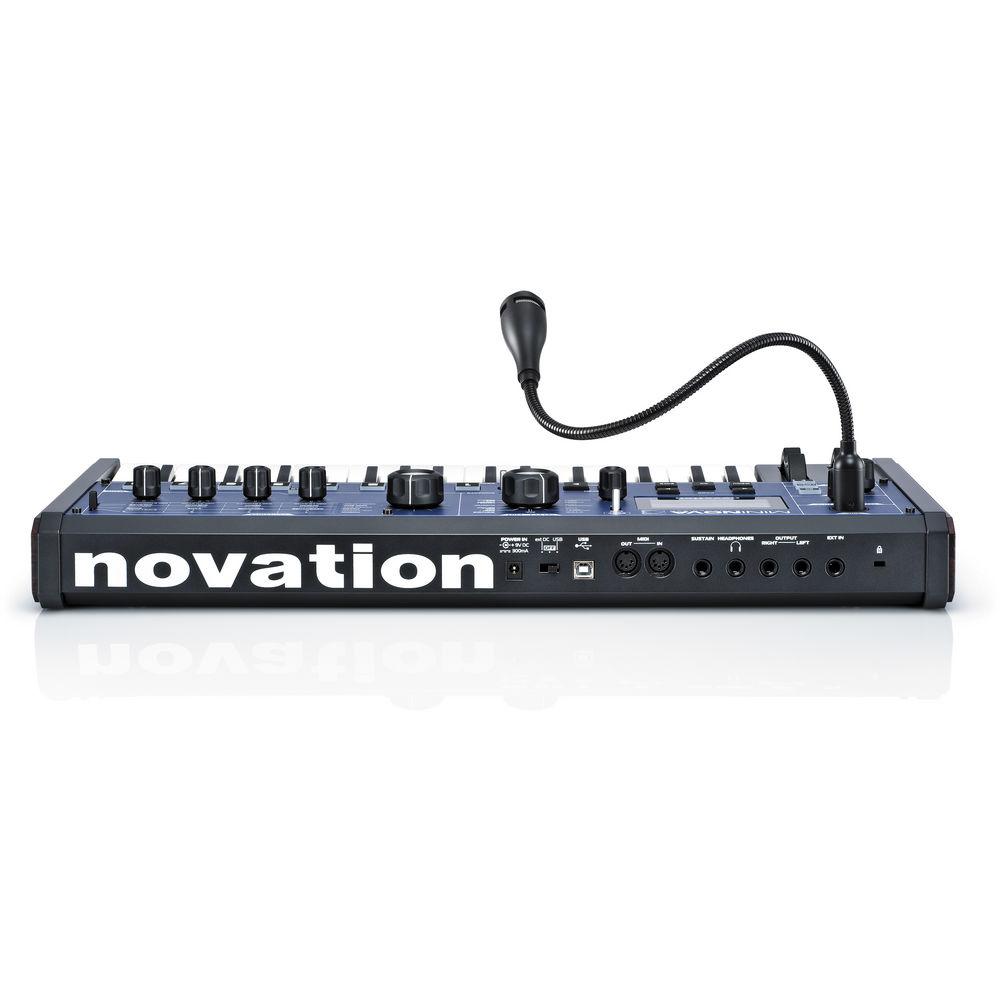

Novation MiniNova 37-Mini-Key Compact Synthesizer

Search your instruction manual in PDF to download

User Manual for Novation MiniNova 37-Mini-Key Compact Synthesizer

Click to enlarge the picture
Novation MiniNova 37-Mini-Key Compact Synthesizer Contents of the user manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer
  • Product category: Synthesizer Keyboards Novation
  • Brand: Novation
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Novation Synthesizer Keyboards

Novation MiniNova 37-Mini-Key Compact Synthesizer Novation MiniNova 37-Mini-Key Compact Synthesizer Novation MiniNova 37-Mini-Key Compact Synthesizer
User manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Novation product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Novation user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Novation product will considerably shorten its lifespan!



Product description

New Novation Animated MiniNova Synthesizer Read More xwqsyxtsaxzwxdrqtcacvybddtdswsaesbf
  • Novation Mininova Demo
The MiniNova 37-Mini-Key Compact Synthesizer by Novation has the same sound engine as the larger model, UltraNova. It includes 256 onboard sounds that you can tweak with five knobs, or totally warp with eight "animate" buttons. It has polyphony up to 18 voices with as many as five synth effects on each sound. MiniNova also has onboard VocalTune and classic vocoder effects, so you can recreate iconic vocal sounds from hip hop, urban and electronic music.

MiniNova has a powerful sound engine for a micro synth. In addition to its 256 onboard sounds, it has space to save 128 of your own sounds. You can quickly search for patches by selecting the style, or the type of sound. MiniNova has 14 conventional waveforms to choose from, 36 wavetables and 20 digital waveforms. Each of the 3 oscillators has density/detune, virtual sync, and an additional low-pass filter called "hardness." There are 14 filter types, 6 envelope generators, 3 LFOs and 20 modulation slots where you can link synth modules together. MiniNova can also add up to 5 effects to each sound; including distortion, reverb, chorus/phase, delay, compressor, EQ and Novation's unique gator effect.

The MiniNova includes a gooseneck microphone, taking its vocal effects one step further. In addition to VocalTune and the 12-band vocoder, the mic input can be routed through the effects engine. The onboard 1/4" input can do the same with an instrument.

An onboard USB port and MIDI I/O allows MiniNova to connect to a laptop or control another keyboard / sound module. Editing sounds can be overwhelming, so Novation bundled the MiniNova Editor software, giving you visual access to the synth engine. The software works as a plug-in within your DAW and allows full editing of your MiniNova hardware patches. MiniNova also includes Patch Librarian software to enable unlimited patch storage on your computer. Note: Register your Novation hardware to access innovative software every couple of months courtesy of the Sound Collective.
    37-Key Controller Keyboard with MIDI I/O
  • MiniNova is a great compact desktop keyboard. It has physical MIDI I/O ports for triggering external sound modules or connecting to a larger keyboard
    Powerful Micro Synth with UltraNova's Sound Engine
  • MiniNova has Novation's signature Nova-series synth-engine onboard, capable of creating and editing sounds with up to 18 voices and powerful effects
    VocalTune and Classic Vocoder Effects
  • The VocalTune function can recreate urban and hip-hop vocal sounds, as well as classic house and techno voice effects
    Live Synth: Tweak and Warp Your Sounds in Realtime
  • 8 animate buttons enable you to warp and twist sounds in realtime alongside a dedicated filter knob, 4 further editing knobs, and oversized pitch and modulation wheels
    256 Instantly Searchable Factory Presets
  • Instantly find the sound you need by type or musical genre, from bass to pad, hip hop to house. Save and store another 128 of your own sounds too
    Layer Up to 5 Effects per Voice
  • MiniNova can add up to 5 effects to each voice including distortion, reverb, chorus/phase, delay, compressor, EQ and Novation's own gator 'stutter' effect
    Includes Editing Software and a Software Patch Librarian
  • A free software editor allows full editing of the synth and effects, the Patch Librarian enables storage of as many of your own sounds as you want
    Run Other Instruments Though the Onboard Effects
  • Plug any other instrument into the line input and route it through the effects engine or the vocal effects
    Free Soundpacks
  • Download free soundpacks which have been created by artists and sound designers
    Sound Collective
  • The Sound Collective is a platform that will provide a free third-party software instrument or creative effect along with free and discounted synthesizers and effects and access to innovative software to all of their registered Novation hardware users
UPC: 815301000136 In the Box Novation MiniNova 37-Mini-Key Compact Synthesizer
  • Gooseneck Microphone
  • USB Cable
  • DC Power Supply
  • Software Download Card
  • Limited 2-Year Warranty
  • User Manual PDF 8.5mbxwqsyxtsaxzwxdrqtcacvybddtdswsaesbf Table of Contents




    Upload User Manual

    Have you got an user manual for the Novation MiniNova 37-Mini-Key Compact Synthesizer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Novation MiniNova Specs

    Bundle Software
    • MiniNova Software Editor
    • Patch Librarian
    • Ableton Live Lite
    • Novation Bass Station softsynth
    • Loopmasters sample pack (1GB)
    Keyboard 37 note keyboard with velocity
    Polyphony Up to 18 note polyphony (dynamic voicing)
    Multitimbral No, mono-timbral
    Per Patch 3 x oscillators
    1 x noise generator
    2 x ring modulators

    Waveforms include:
    Square, sine, tri, sawtooth, pulse, 9 x saw:pulse combinations
    20 x digital waveforms
    36 x wavetables
    Filters 2 filters per patch:
    • low pass no resonance 6dB per octave
    • low pass 12dB
    • low pass 18dB
    • low pass 24dB
    • band pass 6:6
    • band pass 6:12
    • band pass 12:6
    • band pass 6:18
    • band pass 18:6
    • band pass 12:12
    • high pass no resonance 6dB per octave
    • high pass 12dB
    • high pass 18dB
    • high pass 24dB
    Modulation 20 modulation slots per patch:
    • 6 x envelope generators
    • 3 x LFOs
    • Aftertouch
    • Velocity
    • Key scaling/track
    • Mod wheel
    • Expression pedal
    Destinations Total of 66 destinations:
    • Oscillator pitch, pulse width, wavetable index, level and sync
    • Filter cutoff, resonance, envelope settings
    • Effects parameters and send levels
    • Recursive modulation (modulating modulation sources themselves)
    Effects 5 effects slots per patch:
    • Distortion - up to 2 instances
    • Compressor - up to 2 instances
    • Chorus/Phase - up to 4 instances
    • Delay - up to 2 instances
    • Reverb - up to 2 instances
    • Gator
    • EQ
    Miscellaneous
    • VocalTune
    • 12 band vocoder
    • Arpeggiator - 33 patterns
    • Realtime Arp rhythm editing function
    • Chord function - lock up to 10 notes
    Presets Ships with 256 factory patches
    Stores up to 384 on hardware
    Controllers
    • Pitch wheel (LED lit)
    • Modulation wheel (LED lit)
    • 4 x smooth edit/performance pots
    • 1 x large smooth filter pot
    • 1 x six position parameter selector switch
    • 6 x parameter indicator LEDs
    • 8 x three-colour, back-lit animate/arpeggiator/favorite patch-select buttons
    • 2 x animate/arpeggiate LED indicators
    • 1 x back-lit 'hold' button
    • 1 x animate/arpeggiator/favorite patch toggle switch
    • 1 x 'favorite' patch select button
    • 1 x arpeggiator tempo control pot
    • 1 x arpeggiator tempo indicator LED
    • 2 x back-lit arpeggiator control encoders
    • 2 x back-lit octave select buttons
    Inputs 1 x XLR mic
    1 x 1/4" / 6.3 mm TRS
    Outputs 2 x 1/4" / 6.3 mm TRS
    Headphone Output 1 x 1/4" / 6.3 mm TRS stereo
    USB Port 1 x USB-B
    MIDI Connectors 2 x 5-Pin DIN (In / Out)
    Other Connectors 1 x 1/4" / 6.3 mm sustain pedal input
    Kensington Lock
    Display 16 character custom LCD
    Power Supply 9 V, included
    Dimensions (WxDxH) 22.04 x 9.84 x 2.95" / 560 x 250 x 75 mm
    Weight 5.55 lb / 2.52 kg
    Package Weight 8.85 lb
    Box Dimensions (LxWxH) 24.8 x 13.7 x 4.8"
