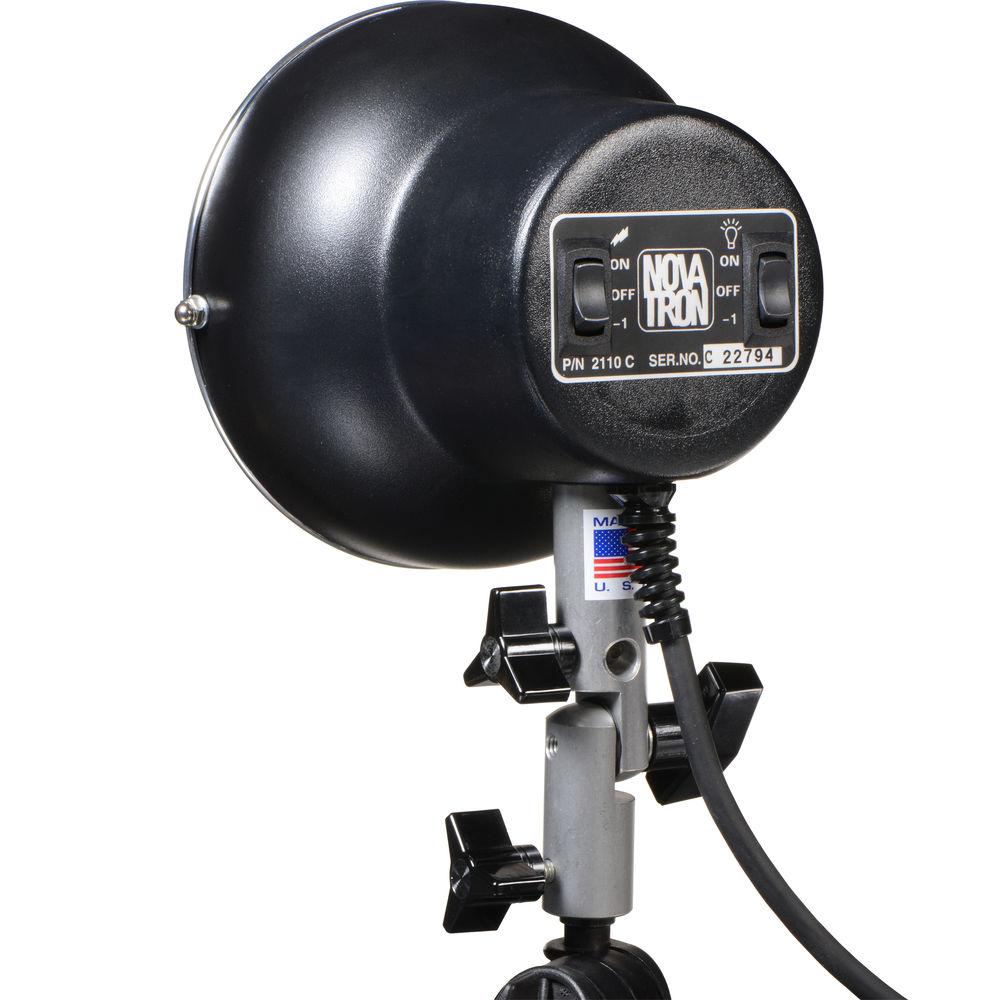

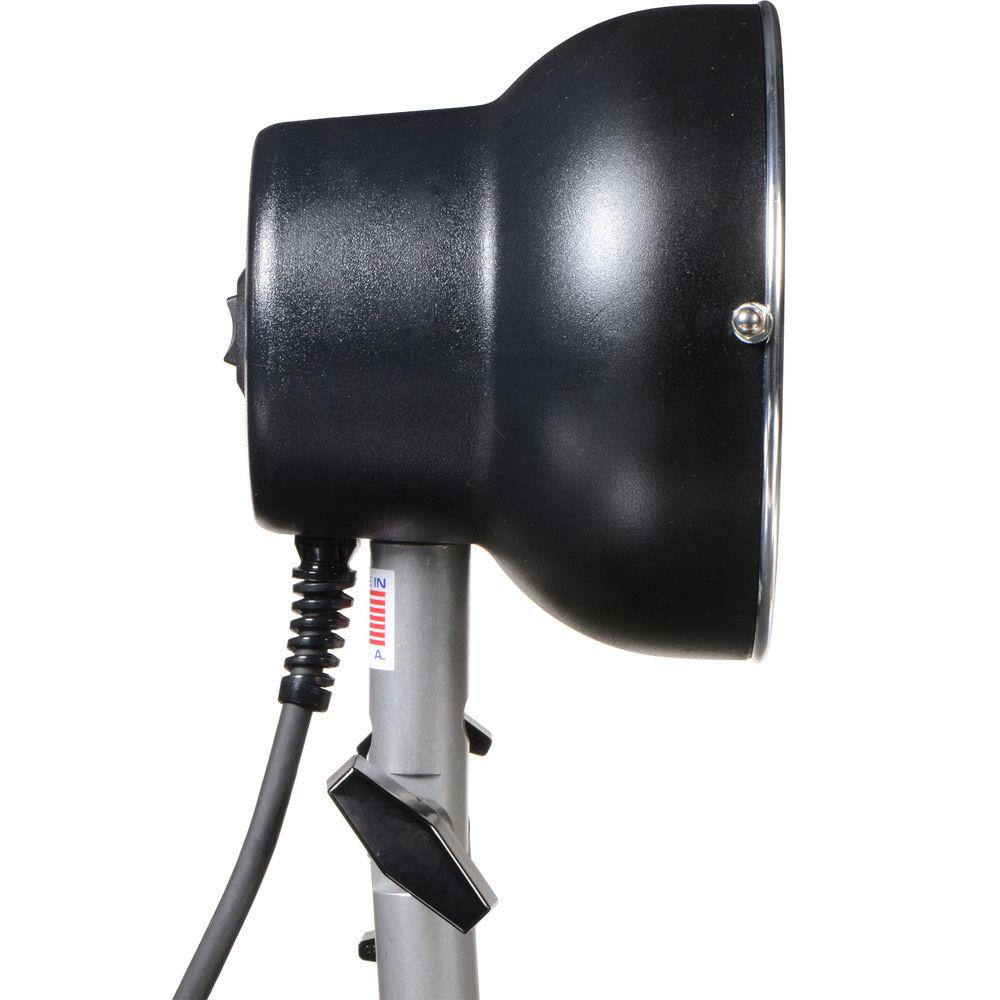

User Manual for Novatron 2110C - 1000 Watt Second One Stop Reducing Flash Head Click to enlarge the picture
Contents of the user manual for the Novatron 2110C - 1000 Watt Second
- Product category: Power Pack Heads Novatron
- Brand: Novatron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novatron Power Pack Heads
 |
User manual for the Novatron 2110C - 1000 Watt Second contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novatron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novatron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novatron product will considerably shorten its lifespan!
|
Product description The Novatron 2110C contains the controls to operate at full power, or to ratio the power and modeling light down one stop (-1) or turn the head off completely. This lamp head cannot be used in the stopping mode by itself. There must be another flashhead operating at full power or damage will occur. The 2110C features a 1000 w/s UV coated flash tube (color corrected to 5500K), 100W tungsten modeling lamp, 25' cord and a mounting bracket for a 3/8" stand. A power supply for this flash head is required. - Compact Design
- Because there is no fan, this head is extremely small.
- Easy to Control
- This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
- Removeable Reflector
- The reflector is built-on. In addition the 2100 head can be outfitted with parabolic reflectors, barn doors, and grid spot holders for greater light control.
- Long-Reaching Cable
- 25' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
- Modeling Light
- Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.
Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099579 In the Box Novatron 2110C - 1000 Watt/Second One Stop Reducing Flash Head 100W screw-in Tungsten Modeling Light 25' head cable 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Novatron 2110C - 1000 Watt Second One Stop Reducing Flash Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNovatron 2110C Specs | Maximum Watt/Seconds | 1000 w/s * | | User Replaceable Flashtube | No ** | | Changeable Reflector | No | | Circuit Protection | None | | Cable Length | 25' | | Modeling Light Wattage | 100W, 120V | | Modeling Light On/Off Switch | Yes, 2-way switching | | Protective Glass Dome | No | | Fan Cooled | No | | Dimensions | 5" x 7" with built-on reflector | | Weight | 2.2 lbs (1 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 9.606 x 9.37 x 9.291" | Note: Damage will result if you use this head with the 1500VR Power Supply @ full power.
This action would also void the warranty.
