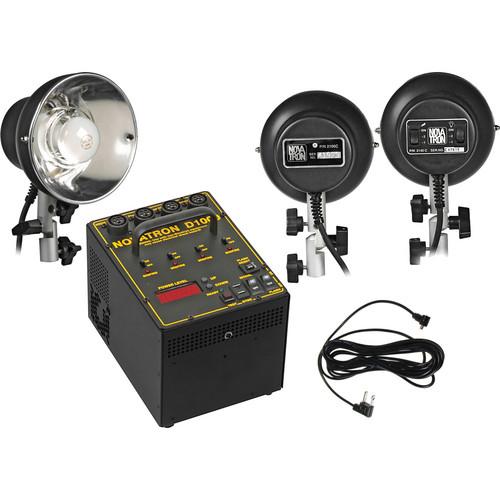

User Manual for Novatron D1000 3 Head Basic Pro Kit - Includes: 1000 Watt Second Power Pack, 2- 2140C, 1- 2100C Flash Heads, Sync Cord - NO Umbrellas, Stands or Case

• Product category: Power Packs Novatron
• Brand: Novatron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Novatron Power Packs

Product description

• Novatron D1000 Power Pack The Novatron D1000 Power Pack is an all digital flash power pack from Novatron. The 1000 watt second, fan cooled pack is microprocessor controlled and has an output which is variable in .1 stop increments over its 5.8 stop power range (double the range of the previous 1000 w/s units). Output power is displayed on a 1/2 inch tall 4 digit LED display which is easily visible from many feet away under normal room lights.
  • 4 powered outlets for flash heads.
  • Sync voltage compatible with most current digital cameras on the market.
  • Auto Dump eliminates the need to fire the flash immediately after choosing a lower power level.
  • Provides misfire alarm functions and supports all standard Novatron flashheads.
  • Second circuit breaker dedicated to the modeling lamps and are designated as Series II. This second breaker allows these units to handle up to 250 watt modeling lamps for fan-cooled flash heads (1000 watts total modeling lamp power per unit).
  UPC: 940925546576
• Novatron 2100C Standard Flash Head The Novatron 2100C is the most cost effective flash head in their line of quality studio strobes. It comes equipped with a non-replaceable UV coated 1000 w/s flash tube, a 100 watt tungsten modeling lamp, 15' power cord, and a mounting bracket with knobs for securing the bracket to a light stand and attaching an umbrella. Also, the 2100C features a highly effective built in reflector, which eliminates the need to fumble around with accessory reflectors. A power supply for this flash head is required.
  Compact Design
  • Because there is no fan, this head is extremely small.
  Easy to Control
  • This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
  Removeable Reflector
  • The reflector is built-on. In addition the 2100 head can be outfitted with parabolic reflectors, barn doors, and grid spot holders for greater light control.
  Long-Reaching Cable
  • 15' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
  Modeling Light
  • Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.
  Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099593
• 2 x Novatron 2140C 3-Way Lamphead The Novatron 2140C flash head contains the controls to operate at full power, or to ratio the power and modeling light down one or two f/stops. This flash head cannot be used in the stopping mode by itself. There must be another flashhead operating at full power or damage will occur. This will void the warranty. It comes With a 1000 w/s flash tube (color corrected to 5500° K), 100W tungsten modeling lamp, 25' cord and a mounting bracket for a 3/8" stand and to attach an umbrella. This is a flash head only. A power supply for this flash head is required.
  Compact Design
  • Because there is no fan, this head is extremely small.
  Easy to Control
  • This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
  Removeable Reflector
  • The reflector is built-on.
  Long-Reaching Cable
  • 25' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
  Modeling Light
  • Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.
  Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099555
• Novatron 15' Straight Sync Cord - Household to PC Male This Novatron MI001 15' straight Sync Cord provides the necessary connection between a power pack or monolight that has a female AC, Household style (2 blade) socket, and a camera, or triggering device that has a female PC (post connection) terminal. UPC: 053661100411

• D1000 Power Pack ysbraquatx
• 120V AC Power Cord
• Limited 1-Year Warranty Note: Sync Cord not included

• 2100C - 1000 Watt/Second Standard Flash Head

• 2 x 2140C 1000 Watt/Second 3 Stop Reducing Flash Head

• Sync Cord - PC to 2-Blade Household - 15'

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Novatron D1000 Power Pack

  Maximum Watt/Seconds	1000 w/s
  Guide Number	333 @ 10' @ ISO 100 with standard lamphead
  Recycle Time	Under 2.5 sec @ all settings
  Flash Variability	5.8 stops, in 1/10 stop increments
  Voltage Stabilization	Yes, +/- 1%
  Distribution	Symmetrical
  Head Outlets	4
  Flash Ready Indicator	LED Lamp lights when power supply reaches full capacity
  Operating Voltage	90 - 120V, 60hz 12 amps
  Sync Voltage	5.5 - 6V
  Built-in Slave Cell	No
  Circuit Protection	Circuit Breaker
  Fan Cooled	Yes
  Auto Dump	Yes
  Dimensions	6.4 x 8.5 x 6.75" (16.2 x 22 x 17.1cm)
  Weight	15.2 lb (7.0 kg)

  Box Dimensions (LxWxH)	12.7 x 12.6 x 12.5"

• Novatron 2100C Standard Flash Head

  Maximum Watt/Seconds	1000 *
  User Replaceable Flashtube	No **
  Changeable Reflector	No
  Circuit Protection	None
  Cable Length	15'
  Modeling Light Wattage	100W, 120V
  Modeling Light On/Off Switch	No
  Protective Glass Dome	No
  Fan Cooled	No
  Dimensions	5" x 7" including built-on reflector
  Weight	2.2 lbs (1 kg)

  Box Dimensions (LxWxH)	9.7 x 9.3 x 9.2"

  Note: Damage will result if you use this head by itself with the D1500 Power Supply @ full power.
  This action would also void the warranty.
• 2 x Novatron 2140C 3-Way Lamphead

  Maximum Watt/Seconds	1000 w/s *
  User Replaceable Flashtube	No **
  Changeable Reflector	No
  Circuit Protection	No
  Cable Length	25'
  Modeling Light Wattage	100W, 120V
  Modeling Light On/Off Switch	Yes
  Protective Glass Dome	No
  Fan Cooled	No
  Dimensions	5 x 7" (12.7 x 17.8 cm) with built-on reflector
  Weight	2.2 lbs (1 kg)

  Box Dimensions (LxWxH)	9.685 x 9.449 x 9.213"

  Note: Damage will result if you use this head by itself with the D1500 Power Supply @ full power.
  This action would also void the warranty.
• Novatron 15' Straight Sync Cord - Household to PC Male

  Box Dimensions (LxWxH)	5.4 x 2.8 x 0.3"
