User Manual for Novatron D1000 Power Pack Click to enlarge the picture
Contents of the user manual for the Novatron D1000 Power Pack
- Product category: Power Packs Novatron
- Brand: Novatron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novatron Power Packs
|
User manual for the Novatron D1000 Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novatron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novatron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novatron product will considerably shorten its lifespan!
|

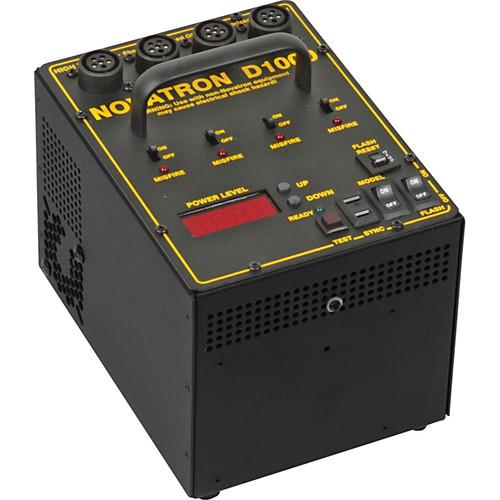

Product description The Novatron D1000 Power Pack is an all digital flash power pack from Novatron. The 1000 watt second, fan cooled pack is microprocessor controlled and has an output which is variable in .1 stop increments over its 5.8 stop power range (double the range of the previous 1000 w/s units). Output power is displayed on a 1/2 inch tall 4 digit LED display which is easily visible from many feet away under normal room lights. - 4 powered outlets for flash heads.
- Sync voltage compatible with most current digital cameras on the market.
- Auto Dump eliminates the need to fire the flash immediately after choosing a lower power level.
- Provides misfire alarm functions and supports all standard Novatron flashheads.
- Second circuit breaker dedicated to the modeling lamps and are designated as Series II. This second breaker allows these units to handle up to 250 watt modeling lamps for fan-cooled flash heads (1000 watts total modeling lamp power per unit).
UPC: 940925546576 In the Box Novatron D1000 Power Pack 120V AC Power Cord Limited 1-Year Warranty Note: Sync Cord not included Table of Contents
|
Upload User Manual
Have you got an user manual for the Novatron D1000 Power Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNovatron D1000 Specs | Maximum Watt/Seconds | 1000 w/s | | Guide Number | 333 @ 10' @ ISO 100 with standard lamphead | | Recycle Time | Under 2.5 sec @ all settings | | Flash Variability | 5.8 stops, in 1/10 stop increments | | Voltage Stabilization | Yes, +/- 1% | | Distribution | Symmetrical | | Head Outlets | 4 | | Flash Ready Indicator | LED Lamp lights when power supply reaches full capacity | | Operating Voltage | 90 - 120V, 60hz 12 amps | | Sync Voltage | 5.5 - 6V | | Built-in Slave Cell | No | | Circuit Protection | Circuit Breaker | | Fan Cooled | Yes | | Auto Dump | Yes | | Dimensions | 6.4 x 8.5 x 6.75" (16.2 x 22 x 17.1cm) | | Weight | 15.2 lb (7.0 kg) | | | | Package Weight | 18.5 lb | | Box Dimensions (LxWxH) | 12.7 x 12.6 x 12.5" |
