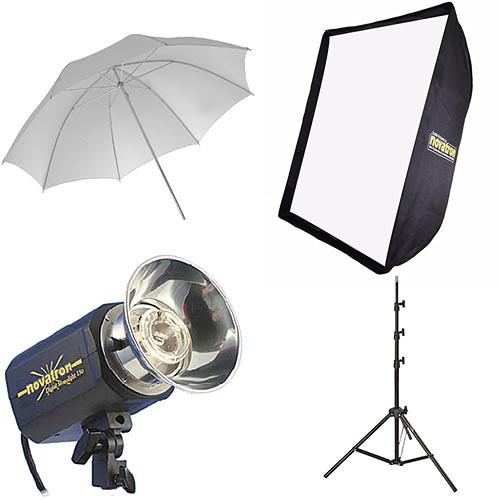

User Manual for Novatron M150 2-Monolight Kit with Umbrella and Softbox Click to enlarge the picture
Contents of the user manual for the Novatron M150 2-Monolight Kit with Umbrella
- Product category: Monolights Novatron
- Brand: Novatron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novatron Monolights
|
User manual for the Novatron M150 2-Monolight Kit with Umbrella contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novatron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novatron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novatron product will considerably shorten its lifespan!
|
Product description Set up a small portrait studio at home, at the office, or on location with this versatile M150 2-Monolight Kit with Umbrella and Softbox from Novatron. The workhorses of the kit are the two 150Ws strobes that feature a 5-stop power range adjustable in 1/10 f/stop increments. When used at full power, the recycle time is 2 seconds. Each monolight has an interchangeable reflector, a color-corrected plug-in flashtube, and a 150W modeling light with a replaceable lamp. The kit also includes two 6' light stands, a 43" white umbrella, and a 24 x 24" softbox. This kit is easy to use, and supplied for use with 120 VAC. - M150 Monolight w/ UV Flashtube (120VAC) The Novatron M150 Monolight has a five-stop power range, adjustable in 1/10 stop increments. The modeling light switch permits constant full power, or variable with the flash power selection. The M150 also includes an internal, switchable slave triggering device. It comes equipped with a 150 w/s color corrected to 5500°K plug-in flashtube and 150 watt modeling light. The mounting bracket attaches to a 3/8" or 5/8" light stand.Novatron's self contained Monolights take all the elements of a power pack, flashhead, and reflector and combine them into one lighting unit that's very easy to set up and transport.
- Built In Slave
- Switchable optical slave for synchronization with other flashes
- Low Sync Voltage
- Compatible with all digital and film cameras
- Flash Ready Indication
- Green illuminated ready light with an audible beep
- Umbrella Socket
- Located on the flash tilt mechanism bracket under the light
Note:When purchased on its own, the M150 does not include a sync cord. UPC: 053661099371 - Light Stand (6') This 6' lightweight aluminum, Novatron Light Stand is usually sold as part of the Novatron Constant Light tungsten kit.
- Compact
- Rises to a maximum height of 6 ft.
UPC: 053661099821 - White Translucent Umbrella (43") Ideal for head and shoulders portraits and small groups, the 43" White Translucent Umbrella from Novatron is a medium-sized light modifier that softens and disperses the light. Use it in the traditional bounce mode or aim the convex side at the subject and pump the light through as you would a softbox. UPC: 053661100596
In the Box Bundle Items 2 x M150 Monolight w/ UV Flashtube (120VAC) ewcbratssqrdwdfzcedufdew - 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head
2 x Light Stand (6') White Translucent Umbrella (43")
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Novatron M150 2-Monolight Kit with Umbrella and Softbox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - M150 Monolight w/ UV Flashtube (120VAC)
| | | Maximum Power | 150 Ws | | Power Control | 5 Stops in 1/10-Stop Increments | | Guide Number | 110' / 33.5 m at 10' / 3 m, ISO100 with Reflector | | Recycle Time | 2 Sec (Full Power) | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Novatron | | | | Type | Tungsten | | Wattage | 150 W | | | | Sync Type | Optical | | Sync Voltage | 5.5 V | | | | AC Input Voltage | 115 VAC, 60 Hz | | | | Display | None | | Auto Dump | No | | Fan Cooled | No | | Dimensions | H: 8.0 x W: 5.0 x L: 10.0" / H: 20.3 x W: 12.7 x L: 25.4 cm | | Weight | 3.9 lb / 1.8 kg | | | | Box Dimensions (LxWxH) | 16.0 x 10.6 x 6.65" | - Light Stand (6')
| Load Capacity | 4 lb / 1.8 kg | | Mounting Options | 5/8" Stud | | Maximum Working Height | 6' / 1.8 m | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | Weight | 2.0 lb / 0.9 kg | | | | Box Dimensions (LxWxH) | 26.5 x 3.75 x 3.5" | - White Translucent Umbrella (43")
| Size | 43.0" / 109.2 cm | | Interior | White | | | | Box Dimensions (LxWxH) | 28.0 x 5.0 x 1.0" |
