User Manual for Novatron M300 2-Monolight Kit with 2 Softboxes Click to enlarge the picture
Contents of the user manual for the Novatron M300 2-Monolight Kit with 2
- Product category: Monolights Novatron
- Brand: Novatron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novatron Monolights
 |
User manual for the Novatron M300 2-Monolight Kit with 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novatron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novatron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novatron product will considerably shorten its lifespan!
|

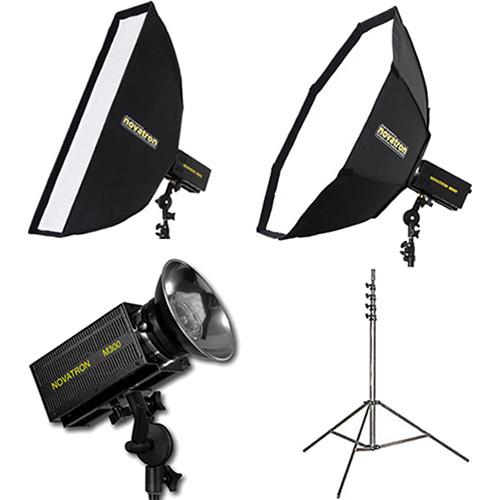

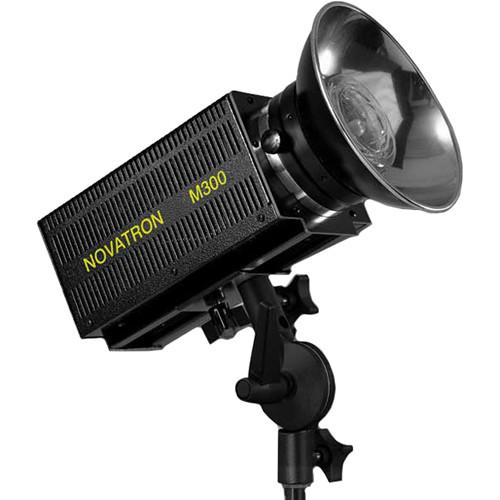

Product description The M300 2-Monolight Kit from Novatron is a great core or starter kit for the studio or on the road. The kit includes 2 M300 monolights, each with a 10' light stand. A 36" diameter octabox and a 24 x 36" softbox with speedrings are also included. Each light has an 18' power cable.The 2 M300s are dependable flash heads with 300Ws of power variable over a 5-stop range and 2.5 second recycling to full power. The lights include a reflector and a user-replaceable modeling light to let you preview the effects of your lighting.The included 24 x 36" softbox is a great all-around utility modifier that's well suited to head and shoulders portraiture and product work. A favorite of fashion shooters, the kit's octabox has a large surface area that displays a signature wrap-around look when used up close as well as rendering natural looking catchlights in your subjects eyes. - M300 Monolight The Novatron M300 Monolight has two power ranges, 300 and 150 w/s of variable power. It features all the same controls found in the Novatron power packs, except the power and modeling light controls are variable. The modeling light switch permits constant full power, or variable with the flash power selection. The M300 also includes an internal, switchable slave triggering device. It comes equipped with a 300 w/s color corrected to 5500°K plug in flashtube and 250 watt modeling light. The mounting bracket attaches to a 3/8" or 5/8" light stand.Novatron's self contained Monolights take all the elements of a power pack, flashhead, and reflector and combine them into one lighting unit that's very easy to set up and transport.
- Built In Slave
- Switchable optical slave for synchronization with other flashes
- Low Sync Voltage
- Compatible with all digital and film cameras
- Flash Ready Indication
- Green illuminated ready light with an audible beep
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Umbrella Socket
- Located on the flash tilt mechanism bracket under the light

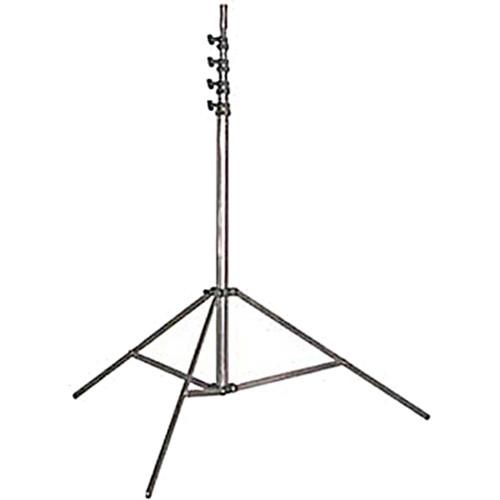

Note:When purchased on its own, the M300 does not include a sync cord. - 5010T Medium Duty Light Stand (10') The Novatron 5010T Medium Duty Light Stand rises to a maximum height of 10', with an all-aluminum construction that provides durability to its tubular extensions and legs. It folds down to a compact package, making it ideal for on location work.
- Five sections, four risers
UPC: 053661026261 In the Box Bundle Items 2 x M300 Monolight rzsawcqvwurbxqdbtdrt - Modeling Lamp, Frosted - 150 watts
- 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head
- AC Power Cord for M300, 500, 600
2 x 5010T Medium Duty Light Stand (10')

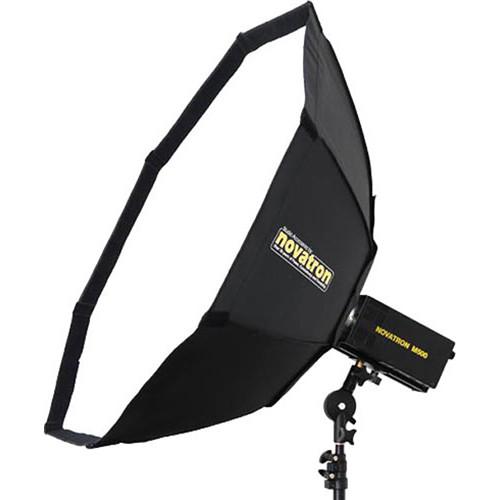

Also Includes - Octabox (36")

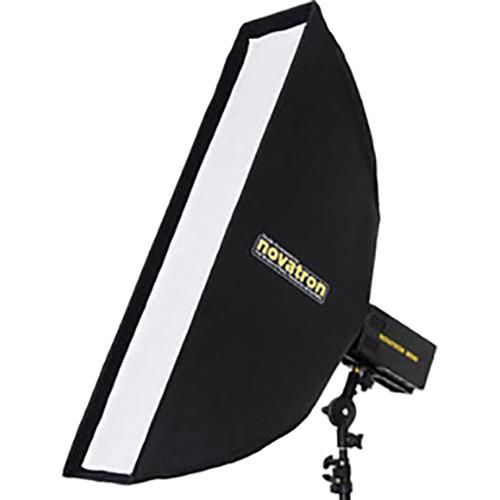

- Softbox (24 x 36")
- 2 x Speedring
Table of Contents
|
Upload User Manual
Have you got an user manual for the Novatron M300 2-Monolight Kit with 2 Softboxes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - M300 Monolight
| Maximum Watt/Seconds | 300 | | Guide Number | 180, f/16.5, @ 10' @ ISO 100, with standard 6" reflector | | Recycle Time | 2 sec @ max power | | Flash Duration | Not specified by manufacturer | | Flash Variability | 6 f/stops | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes | | Modeling Light Wattage | 250 (4108) | | Voltage Stabilization | Yes, +/- 1% | | Flash Ready Indicator | Ready Light | | Operating Voltage | 115V, 60hz | | Sync Voltage | 5.5V | | Built-in Slave Cell | Yes | | Circuit Protection | Yes | | Fan Cooled | Yes | | Auto Dump | No | | Dimensions | 12 x 4 x 4" (30 x 10 x 10 cm) | | Weight | 4.4 lb (1.9 kg) | | | | Box Dimensions (LxWxH) | 16.2 x 12.8 x 8.6" | - 5010T Medium Duty Light Stand (10')
| Mounting Options | 5/8" Stud | | Maximum Working Height | 10' / 3 m | | Minimum Working Height | 27.5" / 70 cm | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | | | Box Dimensions (LxWxH) | 32.6 x 3.6 x 3.6" |
