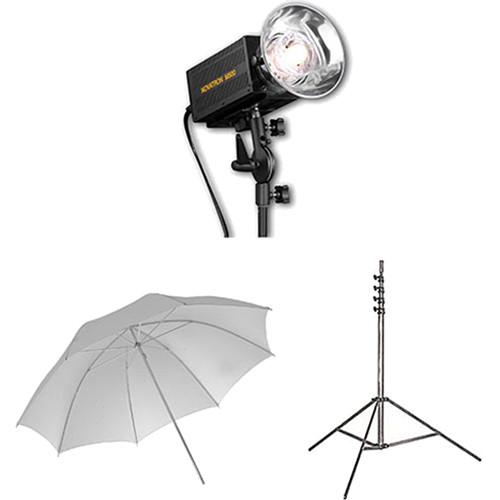

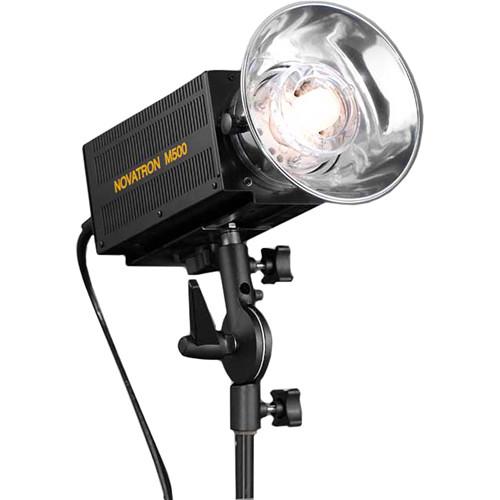

Product description The M500 2-Monolight Kit with Umbrellas from Novatron is a great core or starter kit for the studio or on the road. The kit includes two M500 Monolights, each with a 10' light stand. The M500s are dependable flash heads with 500Ws of power variable over a 5-stop range and 2.5-second recycling to full power. The lights include a reflector and a user-replaceable modeling light to let you preview the effects of your lighting. The included umbrellas can be used in traditional bounce mode, but for a little twist on that theme, pump the light through them and point the outside of the umbrella at the subject. The result is crisp and diffused at the same time. - M500 Monolight The Novatron M500 Monolight has two power ranges, 500 and 125 w/s of variable power. It features all the same controls found in the Novatron power packs, except the power and modeling light controls are variable. The modeling light switch permits constant full power, or variable with the flash power selection. The M500 also includes an internal, switchable slave triggering device. It comes equipped with a 500 w/s color corrected to 5500°K plug in flashtube and 250 watt modeling light. The mounting bracket attaches to a 3/8" or 5/8" light stand.Novatron's self contained Monolights take all the elements of a power pack, flashhead, and reflector and combine them into one lighting unit that's very easy to set up and transport.
- Built In Slave
- Switchable optical slave for synchronization with other flashes.
- Flash Ready Indication
- Green illuminated ready light with an audible beep.
- User Replaceable Flashtube
- No tools are required to replace this "plug & play" flashtube.
- Umbrella Socket
- Located on the flash tilt mechanism bracket under the light.

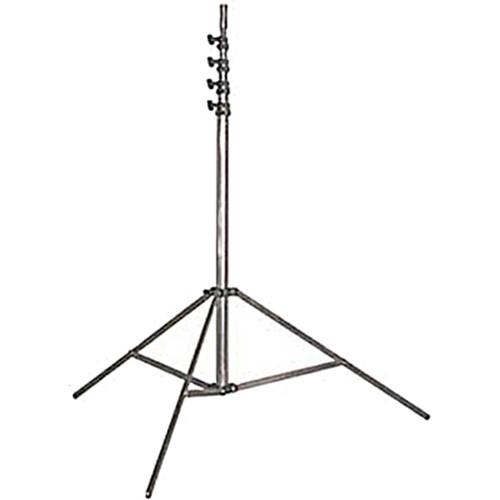

Note:When purchased on its own, this monolight does not include a sync cord. UPC: 053661099357 - 5010T Medium Duty Light Stand (10') The Novatron 5010T Medium Duty Light Stand rises to a maximum height of 10', with an all-aluminum construction that provides durability to its tubular extensions and legs. It folds down to a compact package, making it ideal for on location work.
- Five sections, four risers

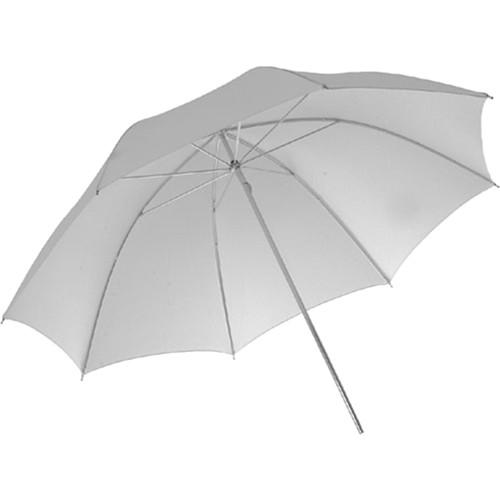

UPC: 053661026261 - White Translucent Umbrella (43") Ideal for head and shoulders portraits and small groups, the 43" White Translucent Umbrella from Novatron is a medium-sized light modifier that softens and disperses the light. Use it in the traditional bounce mode or aim the convex side at the subject and pump the light through as you would a softbox. UPC: 053661100596
In the Box Bundle Items 2 x M500 Monolight bdycrdvacfbzbczrsfwcrfywr - 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head
- AC Power Cord for M300, 500, 600
2 x 5010T Medium Duty Light Stand (10') 2 x White Translucent Umbrella (43") Table of Contents
|
Upload User Manual
Have you got an user manual for the Novatron M500 2-Monolight Kit with Umbrellas in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - M500 Monolight
| | | Maximum Power | 500 Ws | | Power Control | 2 Stops | | Recycle Time | 2.5 Sec (Full Power) | | Flash Ready Indicator | Visual | | Reflector | Changeable | | Accessory Fitting Type | Novatron | | | | Type | Tungsten | | Wattage | 250 W | | | | Sync Type | Optical | | Sync Voltage | 5.5 V | | | | AC Input Voltage | 115 VAC, 60 Hz | | | | Display | None | | Auto Dump | No | | Fan Cooled | Yes | | Dimensions | H: 5.0 x W: 5.0 x L: 11.0" / H: 13.0 x W: 13.0 x L: 28.0 cm | | Weight | 5.4 lb / 2.4 kg | | | | Box Dimensions (LxWxH) | 16.0 x 12.4 x 8.6" | - 5010T Medium Duty Light Stand (10')
| Mounting Options | 5/8" Stud | | Maximum Working Height | 10' / 3 m | | Minimum Working Height | 27.5" / 70 cm | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | | | Box Dimensions (LxWxH) | 32.6 x 3.6 x 3.6" | - White Translucent Umbrella (43")
| Size | 43.0" / 109.2 cm | | Interior | White | | | | Box Dimensions (LxWxH) | 28.0 x 5.0 x 1.0" |
