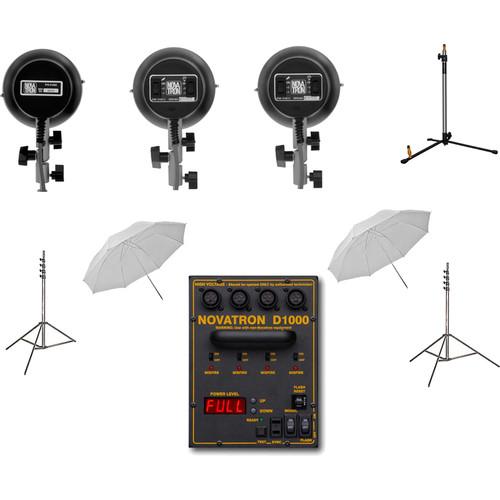

Novatron N2637KIT 3-Light Starter Kit with

User Manual for Novatron N2637KIT 3-Light Starter Kit with Two 3-Way Heads & One Standard Head

• Product category: Power Packs Novatron
• Brand: Novatron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Novatron Power Packs

Product description

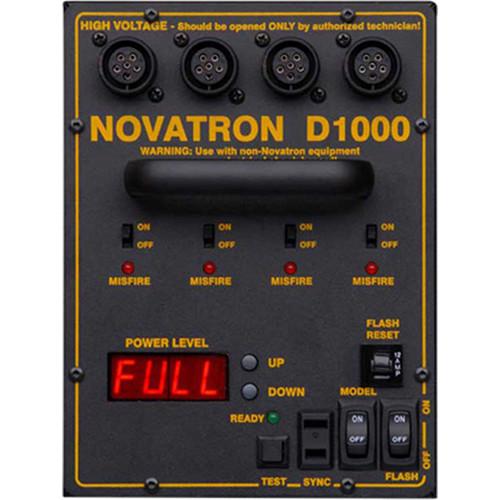

• D1000 Power Pack The Novatron D1000 Power Pack is an all digital flash power pack from Novatron. The 1000 watt second, fan cooled pack is microprocessor controlled and has an output which is variable in .1 stop increments over its 5.8 stop power range (double the range of the previous 1000 w/s units). Output power is displayed on a 1/2 inch tall 4 digit LED display which is easily visible from many feet away under normal room lights.
  • 4 powered outlets for flash heads.
  • Sync voltage compatible with most current digital cameras on the market.
  • Auto Dump eliminates the need to fire the flash immediately after choosing a lower power level.
  • Provides misfire alarm functions and supports all standard Novatron flashheads.
  • Second circuit breaker dedicated to the modeling lamps and are designated as Series II. This second breaker allows these units to handle up to 250 watt modeling lamps for fan-cooled flash heads (1000 watts total modeling lamp power per unit).
  UPC: 940925546576

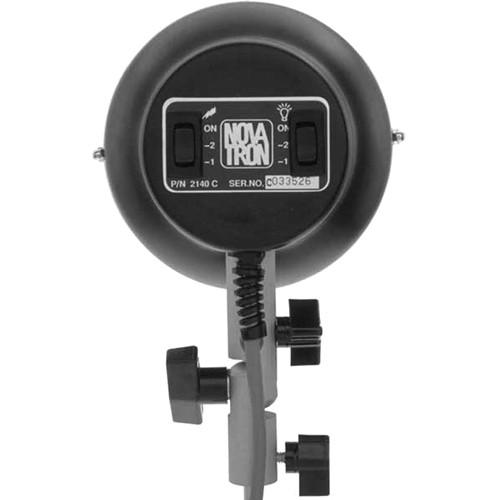

• 2140C 3-Way Lamphead The Novatron 2140C flash head contains the controls to operate at full power, or to ratio the power and modeling light down one or two f/stops. This flash head cannot be used in the stopping mode by itself. There must be another flashhead operating at full power or damage will occur. This will void the warranty. It comes With a 1000 w/s flash tube (color corrected to 5500° K), 100W tungsten modeling lamp, 25' cord and a mounting bracket for a 3/8" stand and to attach an umbrella. This is a flash head only. A power supply for this flash head is required.
  Compact Design
  • Because there is no fan, this head is extremely small.
  Easy to Control
  • This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
  Removeable Reflector
  • The reflector is built-on.
  Long-Reaching Cable
  • 25' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
  Modeling Light
  • Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.
  Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099555

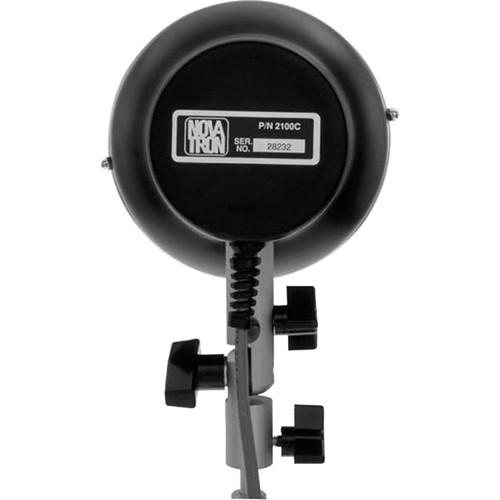

• 2100C Standard Flash Head The Novatron 2100C is the most cost effective flash head in their line of quality studio strobes. It comes equipped with a non-replaceable UV coated 1000 w/s flash tube, a 100 watt tungsten modeling lamp, 15' power cord, and a mounting bracket with knobs for securing the bracket to a light stand and attaching an umbrella. Also, the 2100C features a highly effective built in reflector, which eliminates the need to fumble around with accessory reflectors. A power supply for this flash head is required.
  Compact Design
  • Because there is no fan, this head is extremely small.
  Easy to Control
  • This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
  Removeable Reflector
  • The reflector is built-on. In addition the 2100 head can be outfitted with parabolic reflectors, barn doors, and grid spot holders for greater light control.
  Long-Reaching Cable
  • 15' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
  Modeling Light
  • Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.
  Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099593

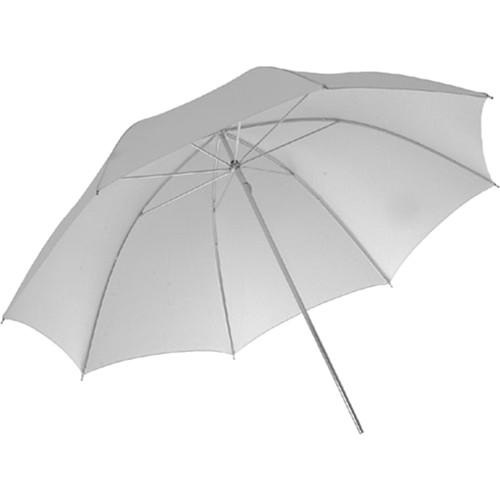

• White Translucent Umbrella (43") Ideal for head and shoulders portraits and small groups, the 43" White Translucent Umbrella from Novatron is a medium-sized light modifier that softens and disperses the light. Use it in the traditional bounce mode or aim the convex side at the subject and pump the light through as you would a softbox. UPC: 053661100596

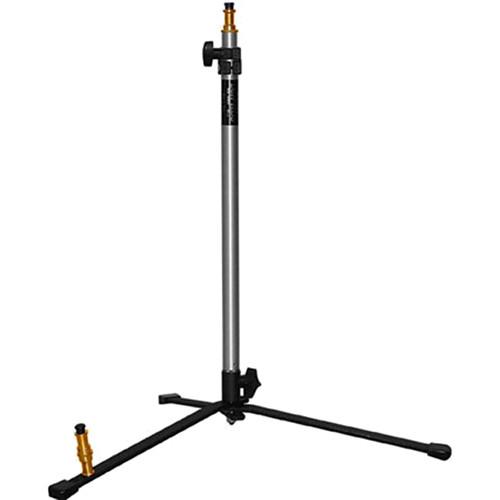

• Backlight Stand (3') Mount a lighting fixture close to the floor, or table with this 3' Novatron Back Light Stand. For added versatility, use it with the extension pole to achieve a maximum height of 31 inches.
  • Sets up easily in the matter of seconds.
  • Fitted with a 5/8" top stud.
  • Made from pressure die cast aluminum.
  UPC: 053661099791

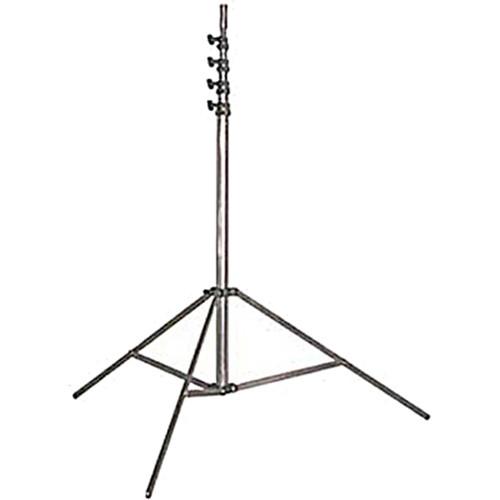

• 5010T Medium Duty Light Stand (10') The Novatron 5010T Medium Duty Light Stand rises to a maximum height of 10', with an all-aluminum construction that provides durability to its tubular extensions and legs. It folds down to a compact package, making it ideal for on location work.
  • Five sections, four risers
  UPC: 053661026261

• 120V AC Power Cord

• Limited 1-Year Warranty Note: Sync Cord not included

• 1000 w/s UV coated built-in Flashtube

• 100 W screw-in Tungsten Modeling Light

• 25' head cable

• Built-in reflector

• 1 Year Manufacturer's Warranty

• 1000 w/s UV Coated Flashtube

• Tungsten Modeling Light

• 15' head cable

• 1 Year Manufacturer's Warranty

• Limited 1-Year Warranty

• Extension pole

• 5/8" Stud with 1/4-20" and 3/8" threaded tips

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• D1000 Power Pack

  Maximum Watt/Seconds	1000 w/s
  Guide Number	333 @ 10' @ ISO 100 with standard lamphead
  Recycle Time	Under 2.5 sec @ all settings
  Flash Variability	5.8 stops, in 1/10 stop increments
  Voltage Stabilization	Yes, +/- 1%
  Distribution	Symmetrical
  Head Outlets	4
  Flash Ready Indicator	LED Lamp lights when power supply reaches full capacity
  Operating Voltage	90 - 120V, 60hz 12 amps
  Sync Voltage	5.5 - 6V
  Built-in Slave Cell	No
  Circuit Protection	Circuit Breaker
  Fan Cooled	Yes
  Auto Dump	Yes
  Dimensions	6.4 x 8.5 x 6.75" (16.2 x 22 x 17.1cm)
  Weight	15.2 lb (7.0 kg)

  Box Dimensions (LxWxH)	12.7 x 12.6 x 12.5"

• 2140C 3-Way Lamphead

  Maximum Watt/Seconds	1000 w/s *
  User Replaceable Flashtube	No **
  Changeable Reflector	No
  Circuit Protection	No
  Cable Length	25'
  Modeling Light Wattage	100W, 120V
  Modeling Light On/Off Switch	Yes
  Protective Glass Dome	No
  Fan Cooled	No
  Dimensions	5 x 7" (12.7 x 17.8 cm) with built-on reflector
  Weight	2.2 lbs (1 kg)

  Box Dimensions (LxWxH)	9.685 x 9.449 x 9.213"

  Note: Damage will result if you use this head by itself with the D1500 Power Supply @ full power.
  This action would also void the warranty.
• 2100C Standard Flash Head

  Maximum Watt/Seconds	1000 *
  User Replaceable Flashtube	No **
  Changeable Reflector	No
  Circuit Protection	None
  Cable Length	15'
  Modeling Light Wattage	100W, 120V
  Modeling Light On/Off Switch	No
  Protective Glass Dome	No
  Fan Cooled	No
  Dimensions	5" x 7" including built-on reflector
  Weight	2.2 lbs (1 kg)

  Box Dimensions (LxWxH)	9.7 x 9.3 x 9.2"

  Note: Damage will result if you use this head by itself with the D1500 Power Supply @ full power.
  This action would also void the warranty.
• White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White

  Box Dimensions (LxWxH)	28.0 x 5.0 x 1.0"

• Backlight Stand (3')

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Receiver 5/8" Stud
  Maximum Working Height	33.5" / 85.1 cm
  Minimum Working Height	3.5" / 8.9 cm
  Collapsed Height	18.9" / 48 cm
  Footprint Diameter	23.6" / 59.9 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Chrome
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	12.0 x 5.0 x 2.0"

• 5010T Medium Duty Light Stand (10')

  Mounting Options	5/8" Stud
  Maximum Working Height	10' / 3 m
  Minimum Working Height	27.5" / 70 cm
  Accepts Wheels	Yes
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black

  Box Dimensions (LxWxH)	32.6 x 3.6 x 3.6"
