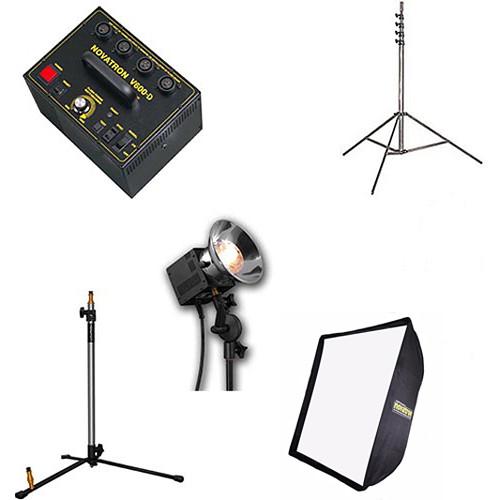

User Manual for Novatron V-600D 3-Head Kit with 2 Softboxes

• Product category: Power Packs Novatron
• Brand: Novatron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Novatron Power Packs

Product description

• 600 W/S Power Pack This is a Novatron V600D 600 watt/second power pack. The Heart of the Novatron system is the power supply. Its function is to take AC line power and store it in a bank of capacitors. This stored energy can be discharged quickly and intensely through one or more flash heads. Novatron produces power supplies in five power ratings: 240, 400, 600, 1000, and 1500 w/s. The smaller power supplies have fewer capacitors and thus are lighter in weight and lower in cost than the more powerful ones.
  • Power is infinitely variable over a 3 stop range.
  • Low sync voltage is compatible with all digital and film cameras.
  • Use a Key, Fill, Back, and Hair light with only one power supply.
  • Durable metal housing can really take a beating.
  Ease of Use
  • Novatron's equipment is ideal for those photographers who want to be creative, but don't need bells and whistles.
  UPC: 053661099517
• 2103FC Fan-Cooled Bare Tube Lamphead The Novatron 2103FC Fan-Cooled Bare Tube Lamphead is a 3-way switching convertible flash head that contains the controls to independently ratio the flash and modeling lamp at full, -1 stop, or -2 stops. It comes equipped with an internal fan, which aids in cooling electronics and the user replaceable plug-in flashtube. Fan cooling extends the power handling capacity of this lamphead to 1500 watt/seconds. Without the fan in use, the power limit is 1000 watt/seconds. This head also gives the photographer the option of using different reflectors. This head is better for photographers who want more control over their light than what can be achieved with the other lampheads in the Novatron line of quality flash equipment. A power supply for this flash head is required.
  Compact Design
  • All Novatron Lampheads feature a umbrella socket for optimized and even light distribution.
  Easy to Control
  • This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting. An optional lever handle 4049, is available for even more precise control.
  Easily Replaceable Flashtube
  • The plug-and-play flashtube eliminates the need to replace the entire head when the flashtube expires.
  Removable Reflector
  • The 2103FC Lamphead can accept the included 2032 6.5" Removable reflector or an optional 16" 2043 reflector.
  Long-Reaching Cable
  • 25' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
  Modeling Light
  • Easily replaceable, 250W, quartz halogen
  UPC: 053661099548
• Backlight Stand (3') Mount a lighting fixture close to the floor, or table with this 3' Novatron Back Light Stand. For added versatility, use it with the extension pole to achieve a maximum height of 31 inches.
  • Sets up easily in the matter of seconds.
  • Fitted with a 5/8" top stud.
  • Made from pressure die cast aluminum.
  UPC: 053661099791
• 5010T Medium Duty Light Stand (10') The Novatron 5010T Medium Duty Light Stand rises to a maximum height of 10', with an all-aluminum construction that provides durability to its tubular extensions and legs. It folds down to a compact package, making it ideal for on location work.
  • Five sections, four risers
  UPC: 053661026261

• AC Power Cord -110V, 6.5' for V240, V400 & V600

• 15' Straight Sync Cord - Household to PC Male

• 1 Year Manufacturer's Warranty

• 1500 W/S Flashtube

• 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head

• 250W/120V Modeling Lamp

• Head Extension Cable (25')

• Flashtube protector sleeve

• Stand Adapter

• 1 Year Manufacturer's Warranty

• Extension pole

• 5/8" Stud with 1/4-20" and 3/8" threaded tips

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• 24 x 24" Softbox
• 9 x 36" Softbox

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 600 W/S Power Pack

  Maximum Watt/Seconds	600
  Guide Number	f/22 @ 10' @ ISO 100 with standard lamp head
  Recycle Time	3 sec @ maximum power
  Flash Variability	3 f/stops, continuously variable
  Voltage Stabilization	Yes, +/- 1%
  Distribution	Symmetrical
  Head Outlets	4
  Flash Ready Indicator	LED Lamp lights when power supply reaches full capacity
  Operating Voltage	90 - 120V, 60hz
  Sync Voltage	6V
  Built-in Slave Cell	No
  Circuit Protection	Circuit Breaker
  Fan Cooled	No
  Auto Dump	No
  Dimensions	6.4 x 8.5 x 6.75" (16.2 x 21.5 x 17.1 cm)
  Weight	9 lb (4.1 kg)

  Box Dimensions (LxWxH)	12.677 x 12.677 x 12.205"

• 2103FC Fan-Cooled Bare Tube Lamphead

  Maximum Watt/Seconds	1500/1000
  User Replaceable Flashtube	Yes (F0008)
  Changeable Reflector	Yes
  Circuit Protection	No
  Cable Length	25' (11.3 m)
  Modeling Light Wattage	250W, 120V
  Modeling Light On/Off Switch	Yes
  Protective Glass Dome	Yes
  Fan Cooled	Yes - Fan Off decreases head power limit to 1000 w/s
  Dimensions	4 x 7" (10.1 x 17.8 cm) without reflector
  Weight	3.2 lb (1.5 kg)

  Box Dimensions (LxWxH)	16.1 x 12.6 x 8.6"

• Backlight Stand (3')

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Receiver 5/8" Stud
  Maximum Working Height	33.5" / 85.1 cm
  Minimum Working Height	3.5" / 8.9 cm
  Collapsed Height	18.9" / 48 cm
  Footprint Diameter	23.6" / 59.9 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Chrome
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	12.0 x 5.0 x 2.0"

• 5010T Medium Duty Light Stand (10')

  Mounting Options	5/8" Stud
  Maximum Working Height	10' / 3 m
  Minimum Working Height	27.5" / 70 cm
  Accepts Wheels	Yes
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black

  Box Dimensions (LxWxH)	32.6 x 3.6 x 3.6"
