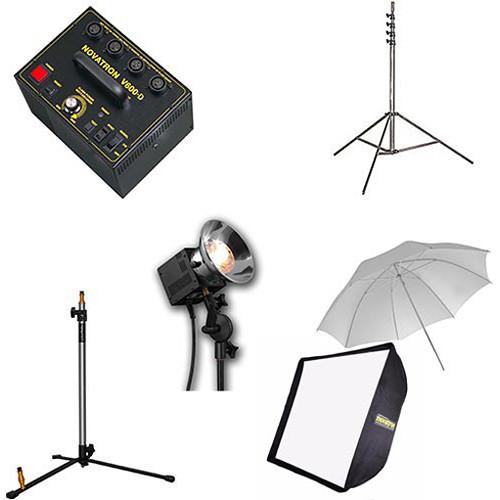

User Manual for Novatron V-600D 3-Head Kit with Umbrella and Softbox Click to enlarge the picture
Contents of the user manual for the Novatron V-600D 3-Head Kit with Umbrella
- Product category: Power Packs Novatron
- Brand: Novatron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novatron Power Packs
|
User manual for the Novatron V-600D 3-Head Kit with Umbrella contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novatron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novatron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novatron product will considerably shorten its lifespan!
|
Product description The V-600D 3-Head Kit with Umbrella and Softbox from Novatron is a versatile 3-point lighting kit for the studio or on the road. The kit includes a 600Ws power pack with four head outlets, three fan-cooled flash heads, two 10' light stands, and a 36" backlight stand. A 43" white umbrella and a 24 x 24" softbox are included to create a flattering, soft quality of light. - 600 W/S Power Pack This is a Novatron V600D 600 watt/second power pack. The Heart of the Novatron system is the power supply. Its function is to take AC line power and store it in a bank of capacitors. This stored energy can be discharged quickly and intensely through one or more flash heads. Novatron produces power supplies in five power ratings: 240, 400, 600, 1000, and 1500 w/s. The smaller power supplies have fewer capacitors and thus are lighter in weight and lower in cost than the more powerful ones.
- Power is infinitely variable over a 3 stop range.
- Low sync voltage is compatible with all digital and film cameras.
- Use a Key, Fill, Back, and Hair light with only one power supply.
- Durable metal housing can really take a beating.
- Ease of Use
- Novatron's equipment is ideal for those photographers who want to be creative, but don't need bells and whistles.
UPC: 053661099517 - 2103FC Fan-Cooled Bare Tube Lamphead The Novatron 2103FC Fan-Cooled Bare Tube Lamphead is a 3-way switching convertible flash head that contains the controls to independently ratio the flash and modeling lamp at full, -1 stop, or -2 stops. It comes equipped with an internal fan, which aids in cooling electronics and the user replaceable plug-in flashtube. Fan cooling extends the power handling capacity of this lamphead to 1500 watt/seconds. Without the fan in use, the power limit is 1000 watt/seconds. This head also gives the photographer the option of using different reflectors. This head is better for photographers who want more control over their light than what can be achieved with the other lampheads in the Novatron line of quality flash equipment. A power supply for this flash head is required.
- Compact Design
- All Novatron Lampheads feature a umbrella socket for optimized and even light distribution.
- Easy to Control
- This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting. An optional lever handle 4049, is available for even more precise control.
- Easily Replaceable Flashtube
- The plug-and-play flashtube eliminates the need to replace the entire head when the flashtube expires.
- Removable Reflector
- The 2103FC Lamphead can accept the included 2032 6.5" Removable reflector or an optional 16" 2043 reflector.
- Long-Reaching Cable
- 25' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
- Modeling Light
- Easily replaceable, 250W, quartz halogen
UPC: 053661099548 - Backlight Stand (3') Mount a lighting fixture close to the floor, or table with this 3' Novatron Back Light Stand. For added versatility, use it with the extension pole to achieve a maximum height of 31 inches.
- Sets up easily in the matter of seconds.
- Fitted with a 5/8" top stud.
- Made from pressure die cast aluminum.
UPC: 053661099791 - 5010T Medium Duty Light Stand (10') The Novatron 5010T Medium Duty Light Stand rises to a maximum height of 10', with an all-aluminum construction that provides durability to its tubular extensions and legs. It folds down to a compact package, making it ideal for on location work.
- Five sections, four risers
UPC: 053661026261 In the Box Bundle Items 600 W/S Power Pack ewcbratssqrdwdfzcedufdew - AC Power Cord -110V, 6.5' for V240, V400 & V600
- 15' Straight Sync Cord - Household to PC Male
- 1 Year Manufacturer's Warranty
3 x 2103FC Fan-Cooled Bare Tube Lamphead - 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head
- Head Extension Cable (25')
- Flashtube protector sleeve
- 1 Year Manufacturer's Warranty
Backlight Stand (3') ewcbratssqrdwdfzcedufdew - 5/8" Stud with 1/4-20" and 3/8" threaded tips
2 x 5010T Medium Duty Light Stand (10')
Also Includes - 24 x 24" Softbox
- 43" White Umbrella
Table of Contents
|
Upload User Manual
Have you got an user manual for the Novatron V-600D 3-Head Kit with Umbrella and Softbox in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 600 W/S Power Pack
| Maximum Watt/Seconds | 600 | | Guide Number | f/22 @ 10' @ ISO 100 with standard lamp head | | Recycle Time | 3 sec @ maximum power | | Flash Variability | 3 f/stops, continuously variable | | Voltage Stabilization | Yes, +/- 1% | | Distribution | Symmetrical | | Head Outlets | 4 | | Flash Ready Indicator | LED Lamp lights when power supply reaches full capacity | | Operating Voltage | 90 - 120V, 60hz | | Sync Voltage | 6V | | Built-in Slave Cell | No | | Circuit Protection | Circuit Breaker | | Fan Cooled | No | | Auto Dump | No | | Dimensions | 6.4 x 8.5 x 6.75" (16.2 x 21.5 x 17.1 cm) | | Weight | 9 lb (4.1 kg) | | | | Box Dimensions (LxWxH) | 12.677 x 12.677 x 12.205" | - 2103FC Fan-Cooled Bare Tube Lamphead
| Maximum Watt/Seconds | 1500/1000 | | User Replaceable Flashtube | Yes (F0008) | | Changeable Reflector | Yes | | Circuit Protection | No | | Cable Length | 25' (11.3 m) | | Modeling Light Wattage | 250W, 120V | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | Yes | | Fan Cooled | Yes - Fan Off decreases head power limit to 1000 w/s | | Dimensions | 4 x 7" (10.1 x 17.8 cm) without reflector | | Weight | 3.2 lb (1.5 kg) | | | | Box Dimensions (LxWxH) | 16.1 x 12.6 x 8.6" | - Backlight Stand (3')
| Load Capacity | 7 lb / 3.2 kg | | Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Receiver
5/8" Stud | | Maximum Working Height | 33.5" / 85.1 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Collapsed Height | 18.9" / 48 cm | | Footprint Diameter | 23.6" / 59.9 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Chrome | | Weight | 2.9 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 12.0 x 5.0 x 2.0" | - 5010T Medium Duty Light Stand (10')
| Mounting Options | 5/8" Stud | | Maximum Working Height | 10' / 3 m | | Minimum Working Height | 27.5" / 70 cm | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | | | Box Dimensions (LxWxH) | 32.6 x 3.6 x 3.6" |
