User Manual for Novatron V600-D 3-Light Starter Kit Click to enlarge the picture
Contents of the user manual for the Novatron V600-D 3-Light Starter Kit
- Product category: Power Packs Novatron
- Brand: Novatron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novatron Power Packs
 |
User manual for the Novatron V600-D 3-Light Starter Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novatron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novatron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novatron product will considerably shorten its lifespan!
|

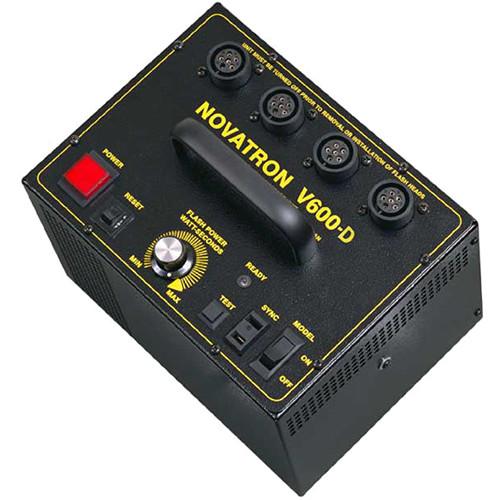

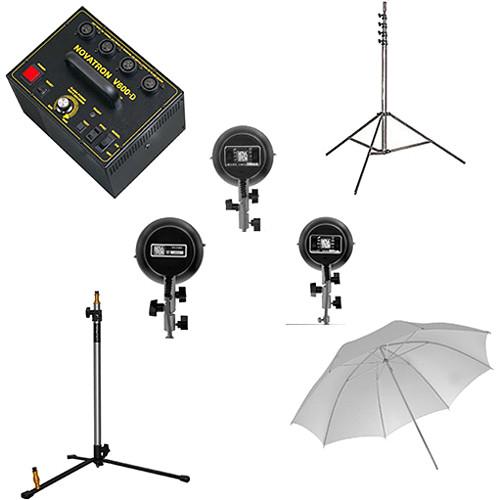

Product description Ideal for location photographers, the Novatron V600-D 3-Light Starter Kit includes the V600-D 600Ws power pack, one N2140C 3-way flash head, one N2110C Standard flash head, one N2100C standard non-switching flash head, and three 6.5" reflectors. It also includes two N7043 43" white umbrellas, two N5010T 10' light stands, and one N5003 3' backlight stand.The V600-D 600Ws power pack takes AC line power and stores it in a bank of capacitors. This stored energy can be discharged quickly through one or more flash heads. It recycles in 3 seconds at full power, has 4 head outlets, and power variability of 4 f-stops. Each flash head has a plug-in flash tube, a 250W modeling lamp, and a 25' cable.The 3' backlight stand is used to mount a lighting fixture close to the floor or table. The 5010T medium duty light stand rises to a maximum height of 10'. - 600 W/S Power Pack This is a Novatron V600D 600 watt/second power pack. The Heart of the Novatron system is the power supply. Its function is to take AC line power and store it in a bank of capacitors. This stored energy can be discharged quickly and intensely through one or more flash heads. Novatron produces power supplies in five power ratings: 240, 400, 600, 1000, and 1500 w/s. The smaller power supplies have fewer capacitors and thus are lighter in weight and lower in cost than the more powerful ones.
- Power is infinitely variable over a 3 stop range.
- Low sync voltage is compatible with all digital and film cameras.
- Use a Key, Fill, Back, and Hair light with only one power supply.
- Durable metal housing can really take a beating.
- Ease of Use
- Novatron's equipment is ideal for those photographers who want to be creative, but don't need bells and whistles.

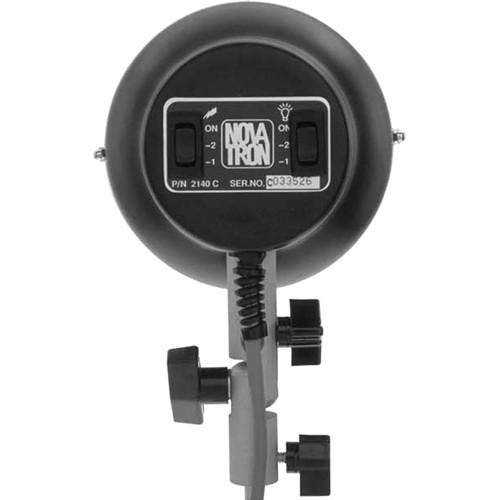

UPC: 053661099517 - 2140C 3-Way Lamphead The Novatron 2140C flash head contains the controls to operate at full power, or to ratio the power and modeling light down one or two f/stops. This flash head cannot be used in the stopping mode by itself. There must be another flashhead operating at full power or damage will occur. This will void the warranty. It comes With a 1000 w/s flash tube (color corrected to 5500° K), 100W tungsten modeling lamp, 25' cord and a mounting bracket for a 3/8" stand and to attach an umbrella. This is a flash head only. A power supply for this flash head is required.
- Compact Design
- Because there is no fan, this head is extremely small.
- Easy to Control
- This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
- Removeable Reflector
- The reflector is built-on.
- Long-Reaching Cable
- 25' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
- Modeling Light
- Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.

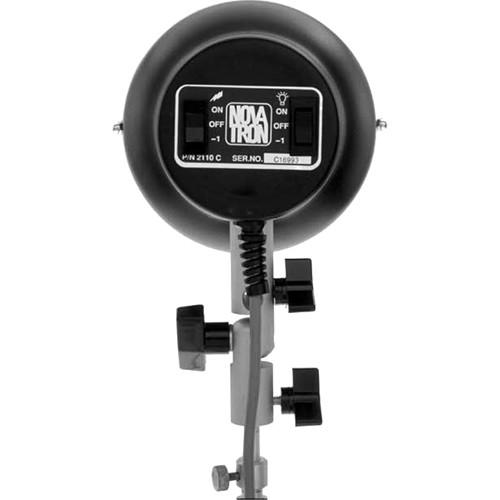

Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099555 - 2110C One Stop Reducing Lamphead The Novatron 2110C contains the controls to operate at full power, or to ratio the power and modeling light down one stop (-1) or turn the head off completely. This lamp head cannot be used in the stopping mode by itself. There must be another flashhead operating at full power or damage will occur. The 2110C features a 1000 w/s UV coated flash tube (color corrected to 5500K), 100W tungsten modeling lamp, 25' cord and a mounting bracket for a 3/8" stand. A power supply for this flash head is required.
- Compact Design
- Because there is no fan, this head is extremely small.
- Easy to Control
- This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
- Removeable Reflector
- The reflector is built-on. In addition the 2100 head can be outfitted with parabolic reflectors, barn doors, and grid spot holders for greater light control.
- Long-Reaching Cable
- 25' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
- Modeling Light
- Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.

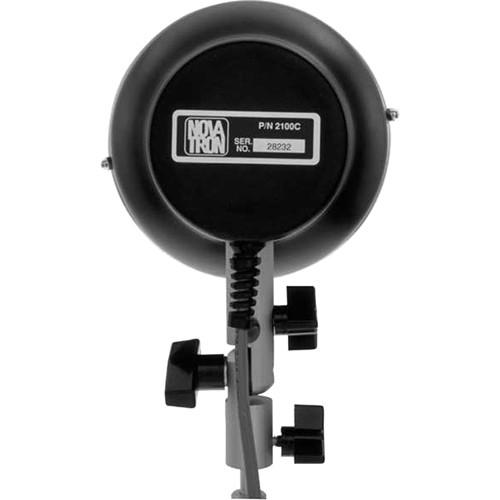

Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099579 - 2100C Standard Flash Head The Novatron 2100C is the most cost effective flash head in their line of quality studio strobes. It comes equipped with a non-replaceable UV coated 1000 w/s flash tube, a 100 watt tungsten modeling lamp, 15' power cord, and a mounting bracket with knobs for securing the bracket to a light stand and attaching an umbrella. Also, the 2100C features a highly effective built in reflector, which eliminates the need to fumble around with accessory reflectors. A power supply for this flash head is required.
- Compact Design
- Because there is no fan, this head is extremely small.
- Easy to Control
- This lamp head features an integrated tilt mechanism for continuous tilting for stand or suspension mounting.
- Removeable Reflector
- The reflector is built-on. In addition the 2100 head can be outfitted with parabolic reflectors, barn doors, and grid spot holders for greater light control.
- Long-Reaching Cable
- 15' cable included. Head extension cables are available in 15 and 25' for heads used at longer distances from the power pack (Longer cable lengths will result in .25 and .3 stop reduction in power, respectively).
- Modeling Light
- Easily replaceable, 100W, 120V, standard Edison Base Bulbs are ideally found at , or any houseware store in an emergency.
Note:Designed to work with all current Novatron power packs: V240, V400,V600, D1000 AND D1500. Older packs with a 5- pin connector require a #4012 adapter. UPC: 053661099593 - 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head This Novatron 2032 Reflector is 6.5" in diameter and disperses a light pattern of 70°, just like the Novatron flashheads that have built in reflectors.
- Twist lock bayonets allow either reflector to quickly mount or dismount the Bare Tube flashheads or the M300, M500 and M600 Monolights' front ring.
- Reflector is secured by a small pair of attachment knobs provided with the unit.

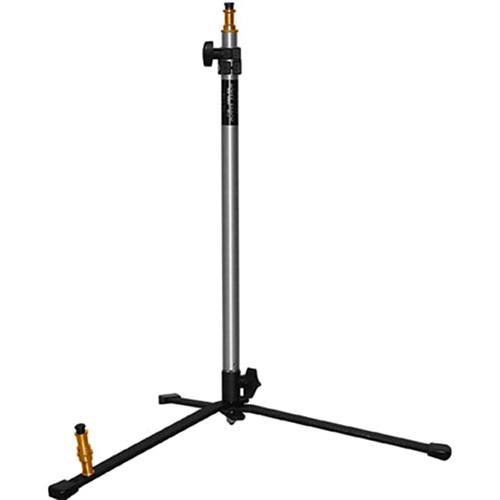

UPC: 053661099890 - Backlight Stand (3') Mount a lighting fixture close to the floor, or table with this 3' Novatron Back Light Stand. For added versatility, use it with the extension pole to achieve a maximum height of 31 inches.
- Sets up easily in the matter of seconds.
- Fitted with a 5/8" top stud.
- Made from pressure die cast aluminum.

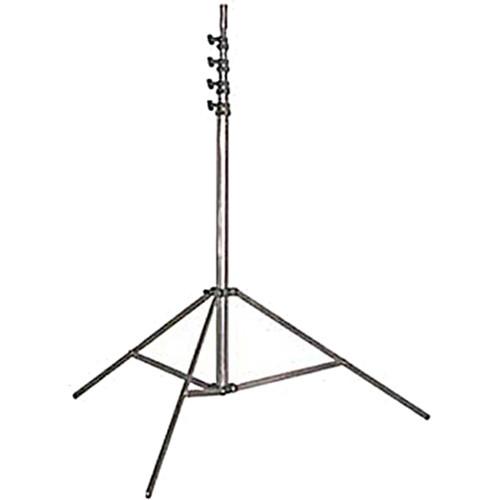

UPC: 053661099791 - 5010T Medium Duty Light Stand (10') The Novatron 5010T Medium Duty Light Stand rises to a maximum height of 10', with an all-aluminum construction that provides durability to its tubular extensions and legs. It folds down to a compact package, making it ideal for on location work.
- Five sections, four risers
UPC: 053661026261 In the Box Bundle Items 600 W/S Power Pack rzsawcqvwurbxqdbtdrt - AC Power Cord -110V, 6.5' for V240, V400 & V600
- 15' Straight Sync Cord - Household to PC Male
- 1 Year Manufacturer's Warranty
2140C 3-Way Lamphead - 1000 w/s UV coated built-in Flashtube
- 100 W screw-in Tungsten Modeling Light
- 1 Year Manufacturer's Warranty
2110C One Stop Reducing Lamphead - 100W screw-in Tungsten Modeling Light
2100C Standard Flash Head - 1000 w/s UV Coated Flashtube
- 1 Year Manufacturer's Warranty
3 x 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head Backlight Stand (3') - 5/8" Stud with 1/4-20" and 3/8" threaded tips
2 x 5010T Medium Duty Light Stand (10')

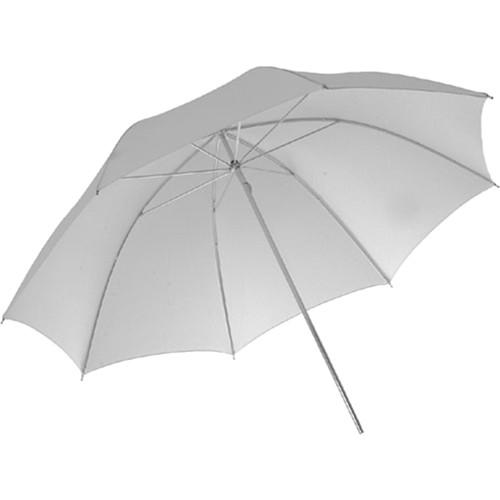

Also Includes - 2 x N7043 43" White Umbrella
Table of Contents
|
Upload User Manual
Have you got an user manual for the Novatron V600-D 3-Light Starter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 600 W/S Power Pack
| Maximum Watt/Seconds | 600 | | Guide Number | f/22 @ 10' @ ISO 100 with standard lamp head | | Recycle Time | 3 sec @ maximum power | | Flash Variability | 3 f/stops, continuously variable | | Voltage Stabilization | Yes, +/- 1% | | Distribution | Symmetrical | | Head Outlets | 4 | | Flash Ready Indicator | LED Lamp lights when power supply reaches full capacity | | Operating Voltage | 90 - 120V, 60hz | | Sync Voltage | 6V | | Built-in Slave Cell | No | | Circuit Protection | Circuit Breaker | | Fan Cooled | No | | Auto Dump | No | | Dimensions | 6.4 x 8.5 x 6.75" (16.2 x 21.5 x 17.1 cm) | | Weight | 9 lb (4.1 kg) | | | | Box Dimensions (LxWxH) | 12.677 x 12.677 x 12.205" | - 2140C 3-Way Lamphead
| Maximum Watt/Seconds | 1000 w/s * | | User Replaceable Flashtube | No ** | | Changeable Reflector | No | | Circuit Protection | No | | Cable Length | 25' | | Modeling Light Wattage | 100W, 120V | | Modeling Light On/Off Switch | Yes | | Protective Glass Dome | No | | Fan Cooled | No | | Dimensions | 5 x 7" (12.7 x 17.8 cm) with built-on reflector | | Weight | 2.2 lbs (1 kg) | | | | Box Dimensions (LxWxH) | 9.685 x 9.449 x 9.213" | Note: Damage will result if you use this head by itself with the D1500 Power Supply @ full power.
This action would also void the warranty. - 2110C One Stop Reducing Lamphead
| Maximum Watt/Seconds | 1000 w/s * | | User Replaceable Flashtube | No ** | | Changeable Reflector | No | | Circuit Protection | None | | Cable Length | 25' | | Modeling Light Wattage | 100W, 120V | | Modeling Light On/Off Switch | Yes, 2-way switching | | Protective Glass Dome | No | | Fan Cooled | No | | Dimensions | 5" x 7" with built-on reflector | | Weight | 2.2 lbs (1 kg) | | | | Box Dimensions (LxWxH) | 9.606 x 9.37 x 9.291" | Note: Damage will result if you use this head with the 1500VR Power Supply @ full power.
This action would also void the warranty. - 2100C Standard Flash Head
| Maximum Watt/Seconds | 1000 * | | User Replaceable Flashtube | No ** | | Changeable Reflector | No | | Circuit Protection | None | | Cable Length | 15' | | Modeling Light Wattage | 100W, 120V | | Modeling Light On/Off Switch | No | | Protective Glass Dome | No | | Fan Cooled | No | | Dimensions | 5" x 7" including built-on reflector | | Weight | 2.2 lbs (1 kg) | | | | Box Dimensions (LxWxH) | 9.7 x 9.3 x 9.2" | Note: Damage will result if you use this head by itself with the D1500 Power Supply @ full power.
This action would also void the warranty. - 6-1/2" Reflector, 70 Degrees - Novatron Bare Tube Head
| | | Box Dimensions (LxWxH) | 6.378 x 5.512 x 2.756" | - Backlight Stand (3')
| Load Capacity | 7 lb / 3.2 kg | | Mounting Options | 1/4"-20 Male Thread
3/8"-16 Male Thread
5/8" Receiver
5/8" Stud | | Maximum Working Height | 33.5" / 85.1 cm | | Minimum Working Height | 3.5" / 8.9 cm | | Collapsed Height | 18.9" / 48 cm | | Footprint Diameter | 23.6" / 59.9 cm | | Accepts Wheels | No | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Chrome | | Weight | 2.9 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 12.0 x 5.0 x 2.0" | - 5010T Medium Duty Light Stand (10')
| Mounting Options | 5/8" Stud | | Maximum Working Height | 10' / 3 m | | Minimum Working Height | 27.5" / 70 cm | | Accepts Wheels | Yes | | Air Cushioned | No | | Detachable Base | No | | Leveling Leg | No | | Reverse Legs | No | | Finish | Black | | | | Box Dimensions (LxWxH) | 32.6 x 3.6 x 3.6" |
