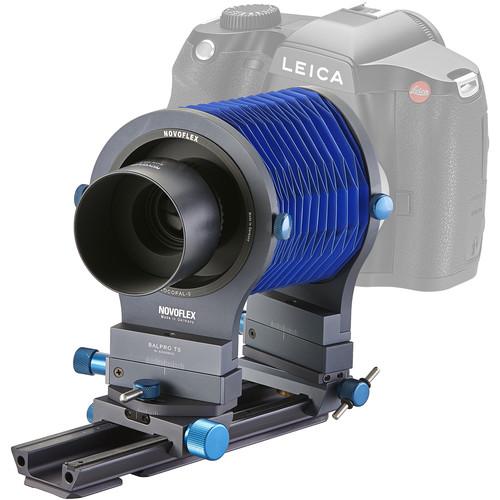

User Manual for Novoflex BALPRO Tilt Shift Bellows Set for Leica S-Series Cameras Click to enlarge the picture
Contents of the user manual for the Novoflex BALPRO Tilt Shift Bellows Set
- Product category: Other Macro Accessories Novoflex
- Brand: Novoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novoflex Other Macro Accessories
|
User manual for the Novoflex BALPRO Tilt Shift Bellows Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novoflex product will considerably shorten its lifespan!
|
Product description Transform your Leica S-Series camera into a close approximation of a view camera and an excellent macro tool with this BALPRO Tilt/Shift Bellows Set from Novoflex. Capable of covering up to a 6 x 7cm format image area, this system will provide both left and right tilt of 15° as well as 26mm of horizontal shift. The entire system can also be converted to portrait orientation for combating converging lines and other optical anomalies. Included with this kit is the Schneider Kreuznach Apo-Digitar 90mm f/4.5 lens which is designed to cover a large sensor area, providing room for movements without compromising on quality. Additionally, the necessary lens adapters are bundled and can be replaced with many optional adapters to work with multiple systems. - BALPRO T/S Bellows The Novoflex Balpro T/S tilt/shift bellows opens up completely new prospects for ambitious architecture and nature photographers. This bellow system rounds out Novoflex's comprehensive offering of high-end bellows. Following on the Novoflex Balpro 1 universal bellows, the Balpro T/S now provides a perfect tilt/shift bellows system for cameras up to a 6 x 7 cm format. This bellows system requires separately purchased lens head and camera adapters depending on which combination of camera and lens you are trying to use.
- Universal, up to 6x7
- The combination options are practically inexhaustible: virtually all 35mm and medium format lenses as well as special lenses can be used with nearly all 35mm and many medium format cameras up to 6x7cm.
- Tilt & Shift functions
- Standard adjustment is 26mm horizontally, the rotation 15° left and 15° right. Provides a tilt and shift function at the front and back of the bellows. In normal shooting position, you can take ideal photographs according to Scheimpflug. Turn the bellows by 90° to portrait format to compensate for converging lines.
- Choice of lens heads
- Novoflex offers three special lens heads (Componon S) by Schneider in Bad Kreuznach for the BALPRO 1 and BALPRO T/S bellows. These lens heads are flush-mounted permanently on the bellows:
- Componon S 80mm f/4.0 for 35mm format
- Componon S 100mm f/4.0 for 645 format
- Componon S 150mm f/4.0 for 6x6 format
- High-precision controls, attractive design and high-caliber manufacturing
Note:Canon EOS systems even support full transfer of all data between camera and original lens via a special accessory (#EOSRETRO) - Schneider 90mm f/4.5 Apo Digitar Lens with Adapter & Lens Hood
In the Box Bundle Items BALPRO T/S Bellows wysfvfytaet Schneider 90mm f/4.5 Apo Digitar Lens with Adapter & Lens Hood
Also Includes - Novoflex BALPRO Bellows to Leica S Camera Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Novoflex BALPRO Tilt Shift Bellows Set for Leica S-Series Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BALPRO T/S Bellows
| Length | 7.9" / 200 mm | | Width | 7.3" / 185 mm | | Weight | 2.15 lb / 975 g | | | | Box Dimensions (LxWxH) | 8.2 x 7.5 x 4.9" | - Schneider 90mm f/4.5 Apo Digitar Lens with Adapter & Lens Hood
| | | Box Dimensions (LxWxH) | 5.75 x 4.85 x 4.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
