Product description

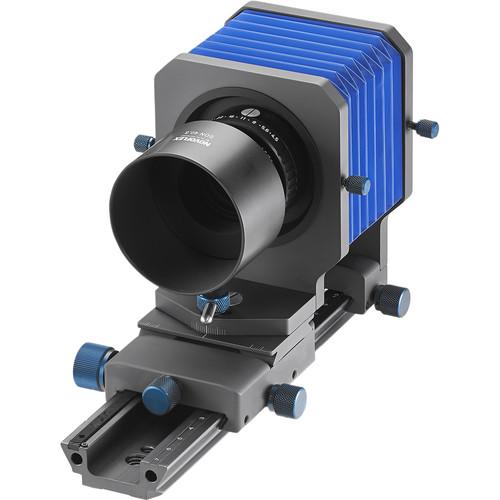

• Castbal Tilt-Shift Bellows Attachment The Castbal Tilt-Shift Bellows Attachment from Novoflex is a compact bellows attachment that can be used with most DSLR, mirrorless and medium format cameras to create a Tilt-Shift system, ideal for macro photography and other applications. The bellows, in combination with the Castel-Q macro focusing rack and various Novoflex camera and lens adapters, attaches to your camera at one end and to a lens at the other to provide the extension and movements necessary for effective Tilt and Shift macro photography. Its maximum extension is 4.72" and its minimum extension is 0.9". The lens panel can be adjusted 25° to the left and right and you’ll be able to shift it within the quick-release mount of the focusing rack. Metal thumb screws hold the lens and camera adapters in place.
• Castel-Q Focusing Rack With dual gearing and the integrated Q=Base Arca-Swiss type quick release system, the Novoflex Castel-Q Focusing Rack is an invaluable tool for any macro photographer. 5.5" of total movement is available, and the entire assembly can be attached to either a conventional tripod head or an Arca-Swiss compatible quick release clamp (made by Arca-Swiss, Foba, NPC, Gitzo & others).
  • Dual gearing for quick or precision movement in the macro range
  • Accepts Arca-Swiss type quick release plates
• 90mm f/4.5 Apo Digitar Lens with Adapter Board The 90mm f/4.5 Apo Digitar Lens with Adapter Board from Novoflex fits the CASTBAL T-S bellows system which enables tilt and shift view camera movements utilizing DSLR and mirrorless camera bodies. The 90mm lens, which is optimized for digital cameras, provides focusing ranges from infinity to 1.2x magnification with 35mm cameras and up to 1.8x magnification with APS-C cameras. The lens is preassembled with a Novoflex adapter board to fit the CASTBAL system.The Apo Digitar 90mm lens is designed for digital backs and is ideal for shooting with smaller format cameras such as DSLR and mirrorless due to its extremely fine image circle that can concentrate the image on the relatively small sensor in a full frame or APS-C sensor. Its image circle is a constant 90mm throughout the aperture range, including at f/4.5. The lens' small rear barrel with minimal flange allows its use on a variety of cameras.
  • 90mm f/4.5 large format lens optimized for digital sensors with 90mm image circle throughout aperture range and short rear barrel.
  • With preassembled adapter board included, this lens fits CASTBAL T-S bellows system.
  • Capable of focusing to infinity while matched with full frame or APS-C DSLR or mirrorless cameras.
  • Lens hood included
• Lens Hood for Schneider Kreuznach Apo-Digitar 90mm f/4.5 This Lens Hood from Novoflex is designed for the Schneider Kreuznach Apo-Digitar 90mm f/4.5 lens equipped on many universal bellows systems. It helps block stray light form entering the lens and is available here as a replacement part for the one originally included with the optic.
• Adapter for Novoflex A-Mount to Castbal T/S Bellow The Adapter for Novoflex A-Mount to Castbal T/S Bellow from Novoflex allows Novoflex A-mount rings to be attached to the Castbal Tilt-Shift bellow for use in the Castbal Tilt-Shift system. Specific A-mount rings then attach to select DSLR and mirrorless cameras enabling DSLR and mirrorless cameras to have enhanced macro and tilt-shift capabilities when used with the Castbal T/S system.
• Short Lens Adapter for Novoflex A Mount to Leica M-Mount Camera The Novoflex Short Lens Adapter for Novoflex A Mount to Leica M-Mount Camera allows you to mount a Novoflex A-mount universal bellows unit to a Leica M-Mount camera. This adapter features a short design since a longer adapter will simply act as an extension tube when used with a bellows unit, and this will help keep the system more compact and usable. It will not focus to infinity or transfer lens functions.

• Limited 1-year Warranty

• Adapter Board for CASTBAL T-S System

• Lens Hood

• Lens Cap

• Rear Lens Cap

• Limited 1-year Warranty

• Limited 1-Year Warranty

• Limited 1-year Warranty

• Rear Cap

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Castbal Tilt-Shift Bellows Attachment

  Extension Range	0.9-4.72" (23-120 mm)
  Weight	0.9 lb (410 g)

  Box Dimensions (LxWxH)	5.8 x 4.8 x 4.1"

• Castel-Q Focusing Rack

  Maximum Movement	5.5" (140mm)
  Dimensions (LxWxH)	7.9 x 3.9 x 1.3" (200 x 100 x 33mm)
  Weight	15.9 oz (450 g)
  Quick Release	Yes
  Tripod Mount Thread Size	3/8"-16, 1/4"-20 & Arca-Swiss style quick release clamps

  Box Dimensions (LxWxH)	11.5 x 6.3 x 2.2"

• 90mm f/4.5 Apo Digitar Lens with Adapter Board

  Format	Large Format Lens
  Focal Length	90mm on full frame DSLR
  Aperture Range	f/4.5-32
  Maximum Angle of View	53°
  Image Circle	90mm Constant
  Slip-on Cap Sizes	Front: 42 mm
  Filter Thread	40.5mm
  Dimensions	3.74 x 2.95" (95 x 75 mm) including adapter ring, lens hood and lens cap
  Weight	0.55 lb (250 g) including adapter ring, lens hood and lens cap
  Dimensions	3.74 x 2.95" (95 x 75 mm) including adapter ring, lens hood and lens cap
  Weight	0.55 lb (250 g) including adapter ring, lens hood and lens cap

• Adapter for Novoflex A-Mount to Castbal T/S Bellow

  Box Dimensions (LxWxH)	3.75 x 3.75 x 1.5"

• Short Lens Adapter for Novoflex A Mount to Leica M-Mount Camera

  Box Dimensions (LxWxH)	2.913 x 2.756 x 1.102"

• Lens Hood for Schneider Kreuznach Apo-Digitar 90mm f/4.5
