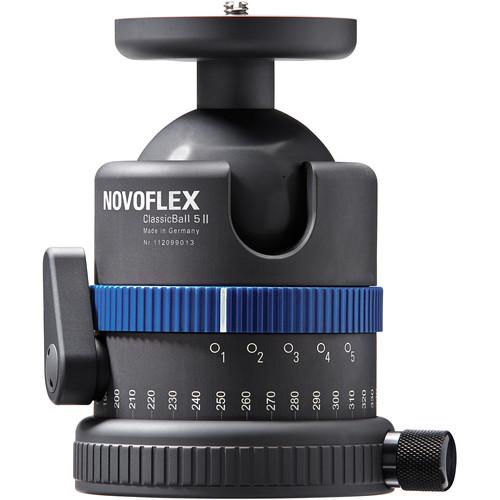

User Manual for Novoflex ClassicBall 5 II Ball Head Click to enlarge the picture
Contents of the user manual for the Novoflex ClassicBall 5 II Ball Head
- Product category: Tripod Heads Novoflex
- Brand: Novoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novoflex Tripod Heads
|
User manual for the Novoflex ClassicBall 5 II Ball Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novoflex product will considerably shorten its lifespan!
|
Product description - Novoflex ClassicBall Tripod Heads
The ClassicBall 5 II Ball Head from Novoflex is a dual-purpose support which acts both as a standard ball head, and also as a leveling base for panoramic photography. To utilize the head as a panning base the head must be mounted to a tripod or similar support in the upside down position. This configuration enables the mounting base to be leveled using the ball, ensuring properly aligned panoramic images, confirmed by the built-in bubble level. The ClassicBall 5 II can support up to 26 lb, stands 4.6" high, and weighs just 2.1 lb.
A matte titanium finish and an all-metal design blend both form and function, and three 90° notches add to the versatility of the ball head, allowing the camera to tilt 180° in three separate positions. Advanced Friction Control allows you to adjust the amount of tension on the ball by turning a center ring on the ball head. The grease-and-lubricant-free design prevents the ball and enclosure from attracting unwanted dust, dirt, and debris. - Three vertical 90° notches for the ball neck
- AFC (Advanced Friction Control) system for precisely repeatable and defined friction preset
- No change of ball position during locking, thanks to the design of the ball interior
- Integrated 360° panning and 2 camera threads (1/4"-20 and 3/8"-16)
- All-metal design incorporating advanced polymer materials
In the Box Novoflex ClassicBall 5 II Ball Head 1/4"-20 Bushing Adapter Allen Wrench Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Novoflex ClassicBall 5 II Ball Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNovoflex CB5-II Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Camera Mounting Screw | 1/4"-20 Male, 3/8"-16 Male | | Load Capacity | 26 lb / 12 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Base Diameter | 3.07" / 78 mm | | Dimensions | H: 4.6" / H: 117.5 mm | | Weight | 2.1 lb / 970.0 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 7.9 x 5.5 x 4.2" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
