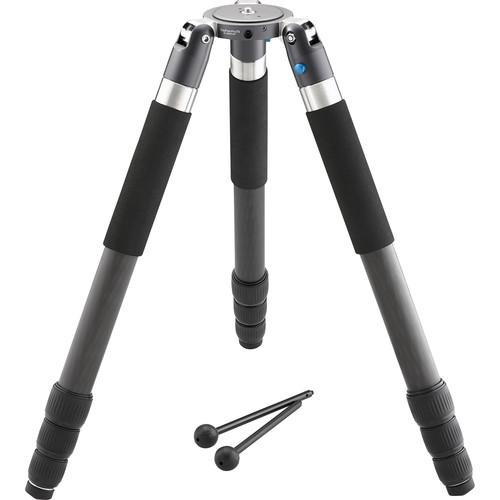

User Manual for Novoflex TrioPod PRO75 with 4-Section Carbon Fiber Leg Kit Click to enlarge the picture
Contents of the user manual for the Novoflex TrioPod PRO75 with 4-Section Carbon
- Product category: Tripod Legs Novoflex
- Brand: Novoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novoflex Tripod Legs
|
User manual for the Novoflex TrioPod PRO75 with 4-Section Carbon contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novoflex product will considerably shorten its lifespan!
|
Product description The TrioPod PRO75 with 4-Section Carbon Fiber Leg Kit from Novoflex is a full modular tripod system with a load capacity of 143 lb and different options for legs and spider accessories. This kit consists of 8x carbon fiber legs with twist locks that open with a simple turn and allow the legs to extend to a maximum height 60.6". With different leg splaying options, the 7 lb tripod can drop to a minimum height of 2.2", which is convenient for macro photography. The two included Macro Mini Legs are also another option for doing macro or tabletop photography, by removing two of the legs from the PRO75 base and replacing them with the mini legs. As mentioned before, all the legs are removable for storage, but the legs can also fold in the reverse at a 180° to a compact length of 22" for transport or storage. The PRO75 base has a removable top plate, which is replaceable with a 75mm half bowl, leveling base, or a center column that are available separately. The top plate and the other tripod accessories are secured by the three set screws found on the side of the base. Additionally, the PRO75 has two 1/4"-20 threaded sockets to mount accessories. In the Box Novoflex TrioPod PRO75 with 4-Section Carbon Fiber Leg Kit TrioPod PRO75 Tripod Base QLEG C2840 SET TrioPod 4-Section Carbon 3-Piece Legs Set 2 x Macro Mini Legs Multi-Tool Rubber Feet Carrying Case Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Novoflex TrioPod PRO75 with 4-Section Carbon Fiber Leg Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNovoflex PRO75 Specs | | | Load Capacity | 143 lb / 64.86 kg | | Maximum Working Height | 60.6" / 153.9 cm | | Minimum Working Height | 2.2" / 5.6 cm | | Folded Length | 22" / 55.88 cm | | Head Mount Type | 3/8"-16 Screw | | Weight | 7 lb / 3.18 kg | | Materials | Carbon Fiber | | Bubble Level | No | | | | Leg Lock Type | Twist Lock | | Leg Positions | 5 Positions | | Independent Leg Spread | Yes | | Leg Sections | 4 | | Leg Diameter | 1.54" / 39 mm
1.40" / 35.5 mm
1.24" / 31.5 mm | | Feet Features | Rubber, Removable, Spiked | | | | Package Weight | 9.5 lb | | Box Dimensions (LxWxH) | 37.0 x 6.0 x 6.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
