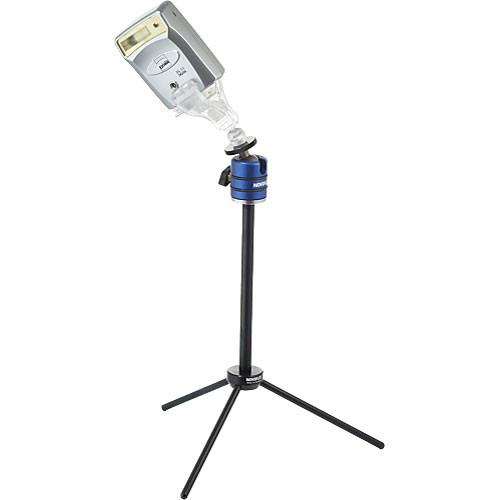

User Manual for Novoflex Universal Photo Survival Kit Click to enlarge the picture
Contents of the user manual for the Novoflex Universal Photo Survival Kit
- Product category: Tabletop & Mini Tripods Novoflex
- Brand: Novoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novoflex Tabletop & Mini Tripods
 |
User manual for the Novoflex Universal Photo Survival Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novoflex product will considerably shorten its lifespan!
|
Product description The Novoflex Photo Survival Kit is an ultra-versatile kit that provides the suitable parts to stabilize a camera or similar lightweight accessory to almost any surface. Whether you need to clamp or screw the item into something or to position it securely on firm ground or to mount it on a smooth surface, the Photo Survival Kit offers the suitable tools. Built around the BALL19 Mini Ball Head, parts in this kit can be joined to the ball head to make a window mount, a ground mount, tabletop mount, or to even stick a camera to a window. Fast and uncomplicated, this universal set can be used for when taking along a large tripod is too unwieldy, too heavy or simply when not practical, e.g. when going on a biking or trekking-trip. - BALL19 Small Ball Head with 1/4"-20 Screw The Novoflex BALL19 Small Ball Head is a compact and extremely strong ball head. It features a 1/4"-20 camera screw, and is ideal for point and shoot or small digital cameras. It can also be used in combination with the many innovative Novoflex accessories that use a 1/4"-20 male screw.

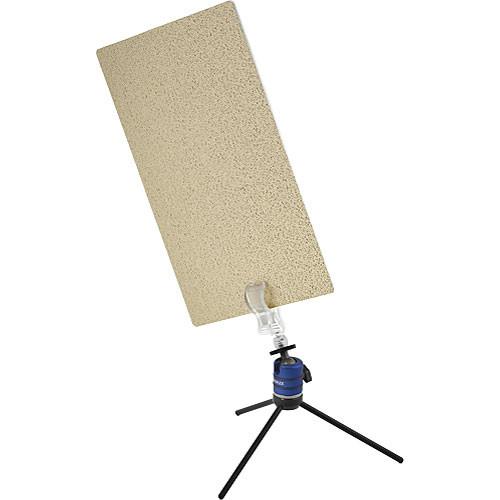

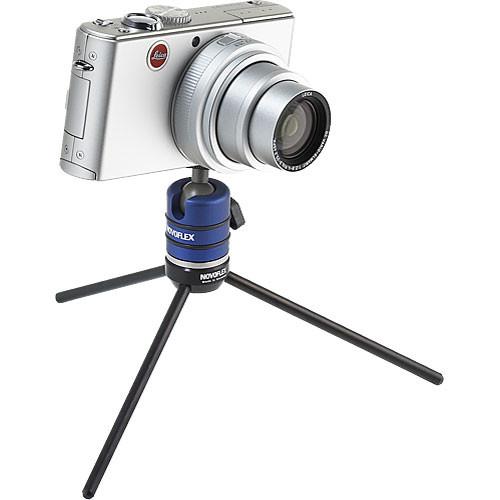

- Micropod The Novoflex Micropod is the "David" among compact tripods. Although it is very compact and weighs a mere 1.76 oz, it is strong enough to support a heavy mirror reflex camera. Three legs, which extend from the hemispherical base, push into unique "O" ring mounts. Ideal for use with Neiger 19 mini ballheads.

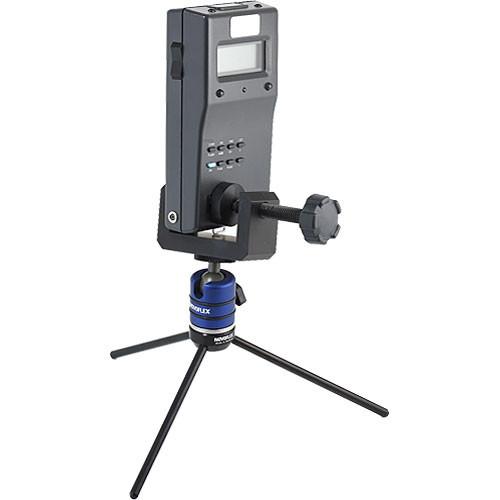

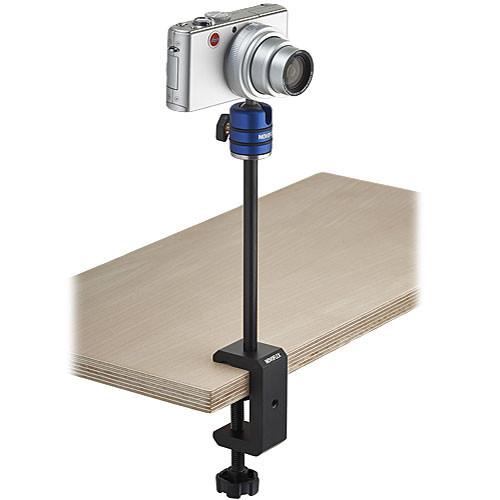

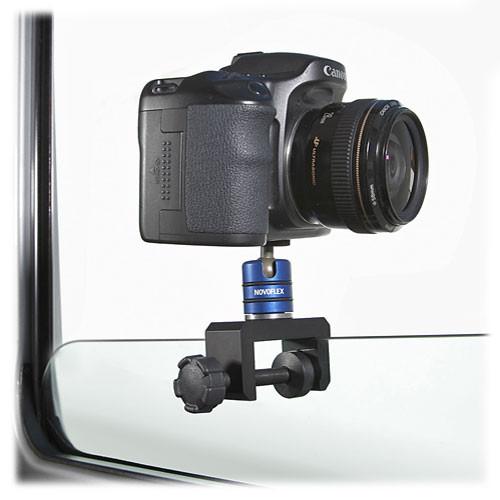

- Uniklem-42 Clamp The Novoflex Uniklem-42 is a handy and compact clamp solution for affixing a camera (with or without a ball head) to tables, boards, pipes, and even car windows. Great for tight spaces or when no tripod is available, the clamp consists of two support platforms offset at 90°, both with a 1/4"-20 female threading. An integrated 1/4"-20 screw keeps the camera in place during vertical or horizontal orientation.
- Quick attachment/detachment from camera or head
- Broad, rubber-based mounting platforms

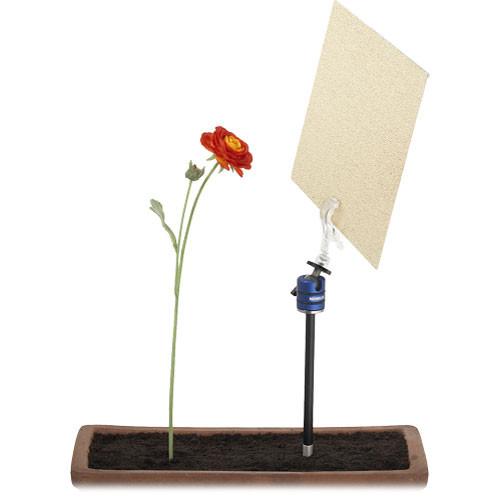

- Ground Spike with 1/4" Thread A solid spike with a 1/4"-20 threaded socket, this is used to anchor Novoflex rods firmly in the ground.
- Metal Rod 15cm A 5.9" (15 cm) metal rod with a male 1/4"-20 on one end and a female 1/4"-20 on the other end. For use with the BasicBall head, or for any application using 1/4"-20 threads.

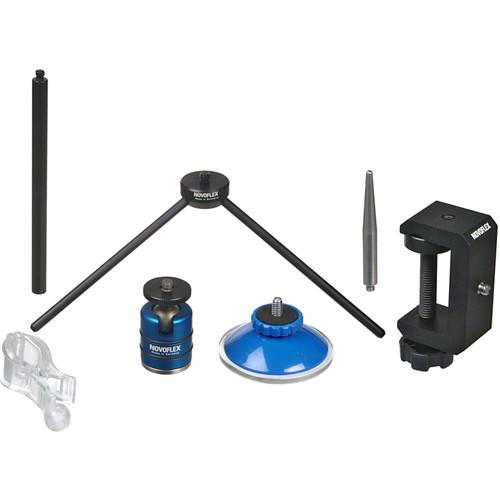

In the Box Bundle Items BALL19 Small Ball Head with 1/4"-20 Screw tzwarzyd Micropod Uniklem-42 Clamp Ground Spike with 1/4" Thread Metal Rod 15cm
Also Includes - Suction Cup
- Plastic Clamp

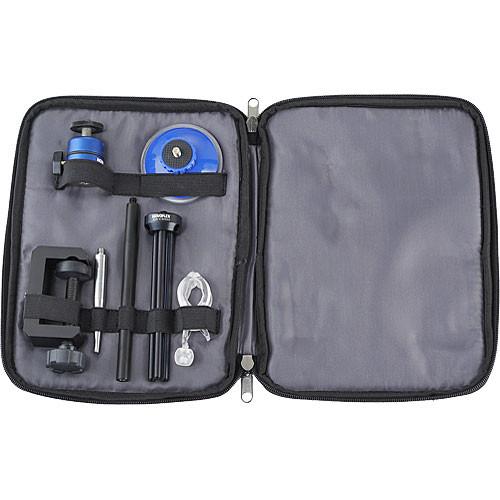

- Padded, Zippered, and Partitioned System Case
Table of Contents
|
Upload User Manual
Have you got an user manual for the Novoflex Universal Photo Survival Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - BALL19 Small Ball Head with 1/4"-20 Screw
| | | Head Type | Ball Head | | Base Mount | 1/4"-20 Thread | | Quick Release Plate Type | No Quick Release | | Load Capacity | 6.6 lb / 3 kg | | Number of Bubble Levels | None | | Friction Control | No | | | | Base Diameter | 1.8" / 30 mm | | Dimensions | H: 2.2" / H: 56.0 mm | | Weight | 3.2 oz / 92.0 g | | | | Box Dimensions (LxWxH) | 7.1 x 2.9 x 1.3" | - Micropod
| | | Load Capacity | 5.0 lb / 2.3 kg | | Maximum Working Height | 2.8" / 71 mm | | Dimensions | H: 5.4" / H: 137.0 mm (Folded) | | Weight | 1.76 oz / 50 g | | | | Mounting Screw | 1/4"-20 Male | | Leg Sections | 1 | | | | Box Dimensions (LxWxH) | 8.0 x 4.1 x 1.3" | - Uniklem-42 Clamp
| Maximum Opening | 1.65" / 4.2 cm | | Camera Mount Thread Size | 1/4"-20 (dual platforms at right angles to one another) | | Dimensions (W x H x D) | 2.9 x 1.7 x 1.2" / 7.4 x 4.4 x 3.0 cm | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 8.9 x 5.0 x 0.3" | - Ground Spike with 1/4" Thread
| | | Box Dimensions (LxWxH) | 5.8 x 3.4 x 0.4" | - Metal Rod 15cm
| | | Box Dimensions (LxWxH) | 6.5 x 4.0 x 1.0" |
