User Manual for Novoflex VR-System Slim Multi-Row Panorama System with PanoramaStudio 2 Pro License Click to enlarge the picture
Contents of the user manual for the Novoflex VR-System Slim Multi-Row Panorama System
- Product category: Panoramic & Time Lapse Heads Novoflex
- Brand: Novoflex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Novoflex Panoramic & Time Lapse Heads
 |
User manual for the Novoflex VR-System Slim Multi-Row Panorama System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Novoflex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Novoflex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Novoflex product will considerably shorten its lifespan!
|

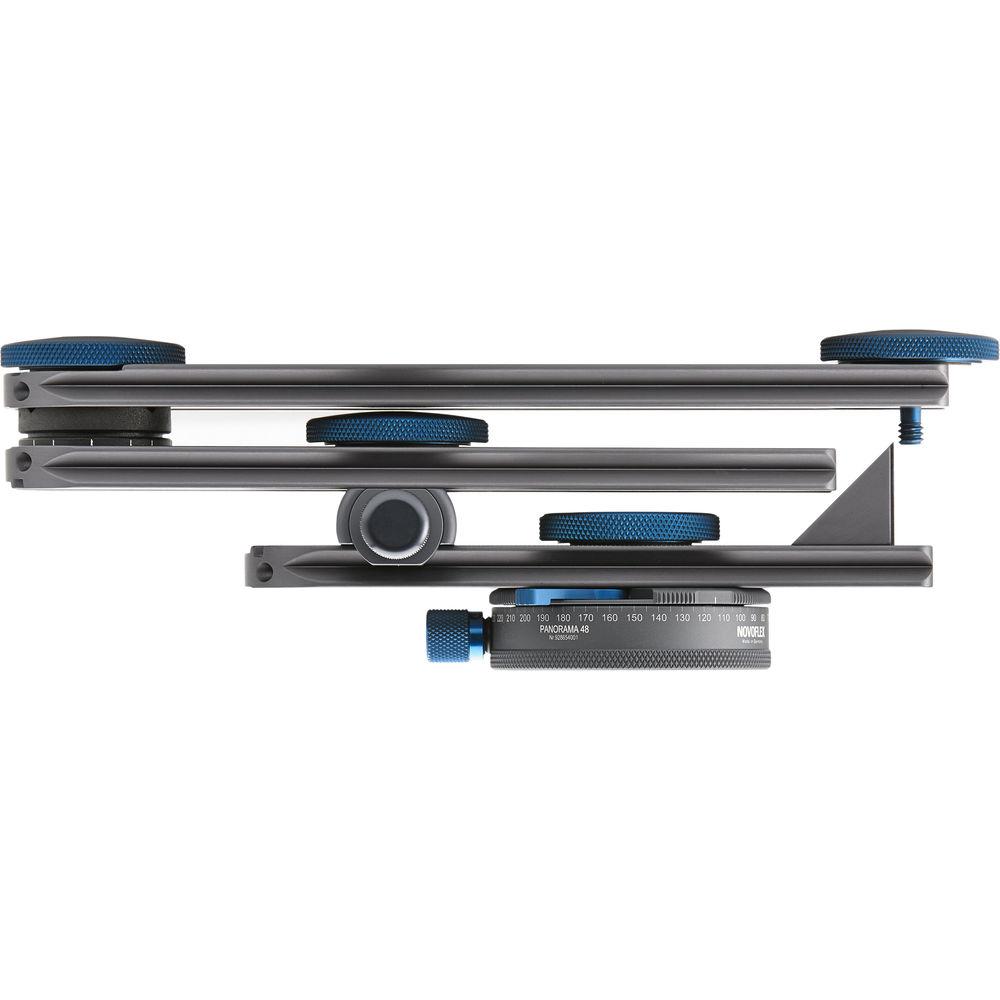

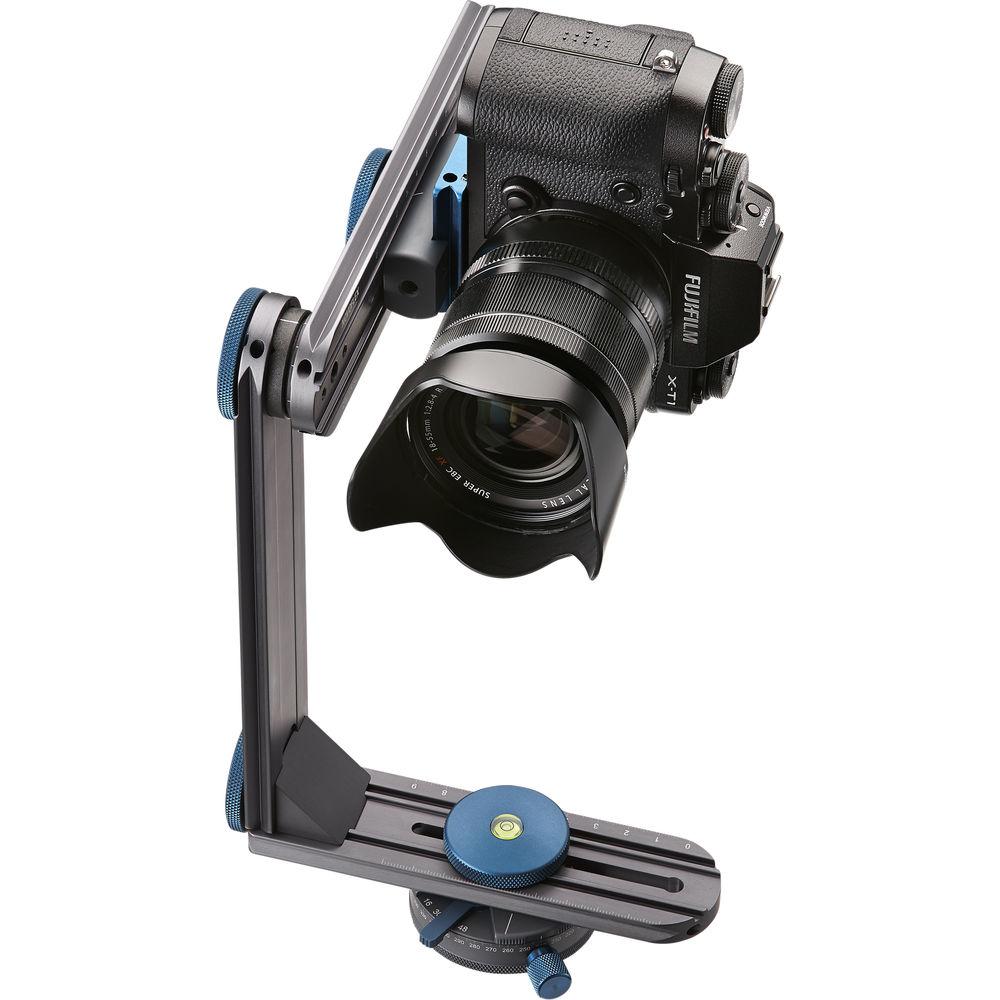

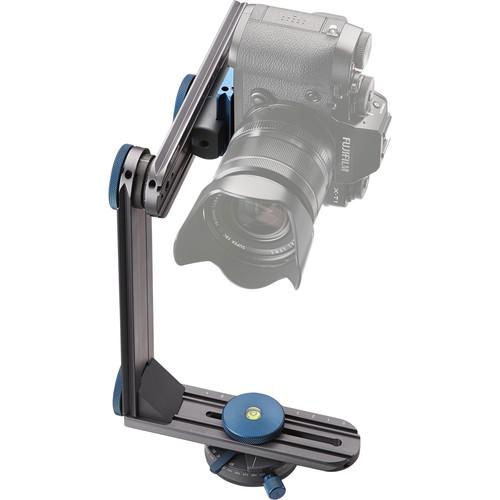

Product description Time-Lapse Tips and Tools Read More The Novoflex VR-System Slim Multi-Row Panorama System is designed to help you capture multi-row panoramas in perspective-corrected flat or spherical projection with mirrorless or DSLR cameras. It can also be used to capture classic single-row cylinder panoramas. The system includes the QPL-Vertikal L-bracket, Panorama 48 panning base, QPL Slim 50 quick release plate, VR-WAAGE 2-way bubble level, and a license key for the PanoramaStudio 2 Pro software. The lower panning base comes with built-in click stops at increments of 16 (22.5°), 30 (12°), 36 (10°), 48 (7.5°), as well as stepless rotation to accommodate the most used focal lengths of mirrorless cameras. The upper rotation axis has click stops at 10° increments. The system weighs 1.6 lb and can be quickly collapsed, making it convenient to carry and stow in almost any photo bag. The VR-System Slim comes with a license key for PanoramaStudio 2 Pro. The software is used to create single- and multi-row panoramas of up to full spherical 360 x 180° with automatic alignment of images. It also has an option to stitch arbitrary arranged images to large panoramas, even beyond the gigapixel limit. PanoramaStudio 2 Pro - Easy user interface, large work space with a 2D and 3D preview
- Automatic alignment of single- and multi-row panoramas up to full spherical 360 x 180°
- Seamless blending into a panoramic image
- Manual post-processing of all steps possible
- Automatic exposure correction
- Interactive panoramas can be connected to virtual tours using hotspots
- Filters for additional image editing
- Supports exporting panoramas in various image formats, as screensavers, and as interactive 3D panoramas or zoom images for websites
- Print panoramas in poster size on multiple pages
- Option to save panoramas as multi-layered images for professional level post-processing

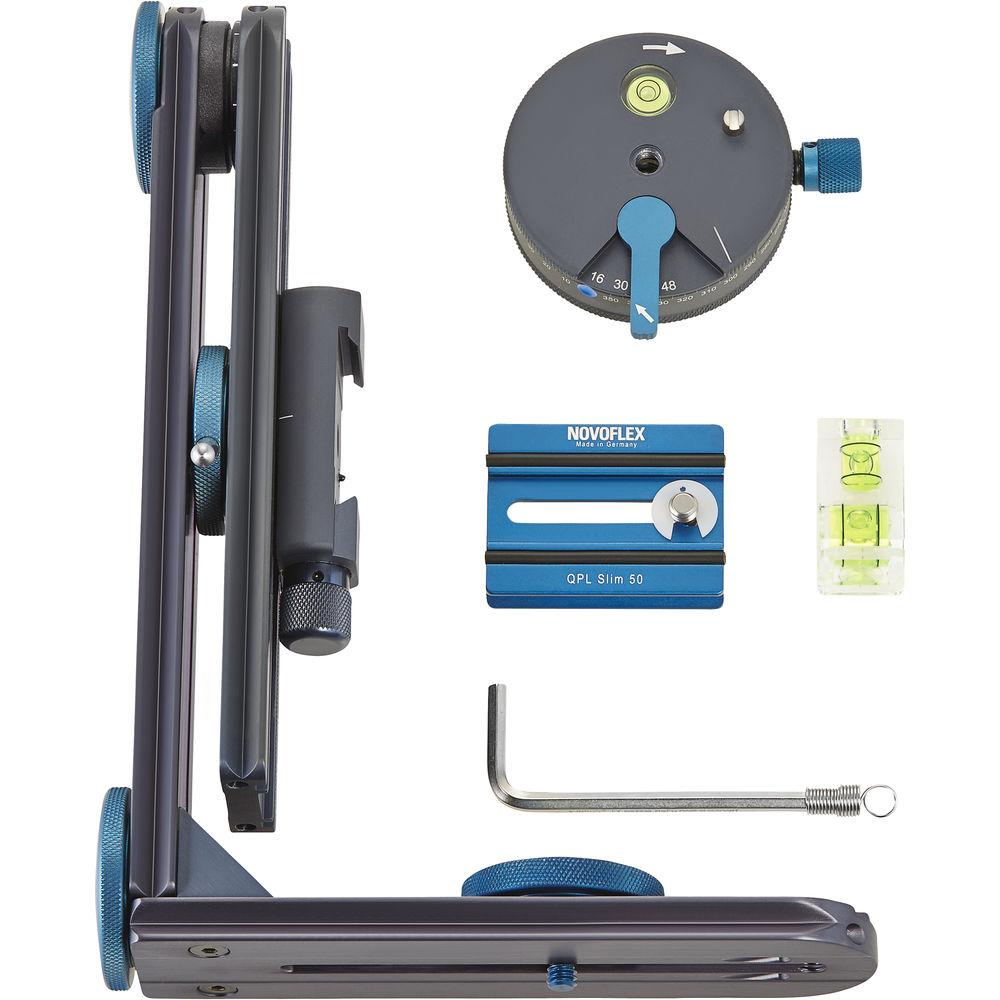

In the Box Novoflex VR-System Slim Multi-Row Panorama System with PanoramaStudio 2 Pro License QPL-Vertikal L-Shaped Quick Release Plate for Q=Base System Panorama 48 Panning Base QPL-Slim 50 Quick Release Plate 2-Way Bubble Level for VR Panoramic Heads PanoramaStudio 2 Pro License Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Novoflex VR-System Slim Multi-Row Panorama System with PanoramaStudio 2 Pro License in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNovoflex VR-SYSTEMSLIMPS Specs | | | Scaling | 360° in 5° increments | | Click-Stops | 360° = stepless
22.5° = 16 clicks
12° = 30 clicks
10° = 36 clicks
7.5° = 48 clicks | | Tripod Attachment | QR plate | | Camera Attachment | 1/4" | | Spirit Level | Yes | | Height | 0.7" (18 mm) | | Overall Dimensions | 2.4 x 3.3" (62 x 85 mm) | | Weight | 5.6 oz (160 g) | | | | Camera Attachment | 1/4"-20 | | Size | 1.5 x 1.96 x 0.39" (39 x 50 x 10 mm) | | Weight | 0.92 oz (26 g) | | | | Recommended Software | PanoramaStudio 2 Pro (included)
PTGui, Photoshop (not included) | | System Requirements | For PanoramaStudio 2 Pro:
Operating System: Windows XP / Vista / 7 / 8 / 10 (32 and 64-bit); Mac OS X 10.5 or newer on 64-bit Intel
Storage: 40 MB for the program; minimum 4 GB while creating panoramas
RAM: 2 GB minimum; 8 GB recommended
CPU: 1 GHz Pentium III/IV or AMD Athlon
Graphics: Resolution of at least 1024 x 768 pixels at hi or true color
For Flash Panoramas: Adobe Flash Player v10 or higher | | | | Suitable for | Lenses with focal lengths from 8 to 160mm | | Adjustment Range | In the Optical Axis: 3.9" (100 mm) | | Capture | Type: Multi row | | Projection | Possible Projection Types: Flat, cylindrical, and spherical | | Weight | 1.6 lb (760 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 10.4 x 7.3 x 2.6" |
