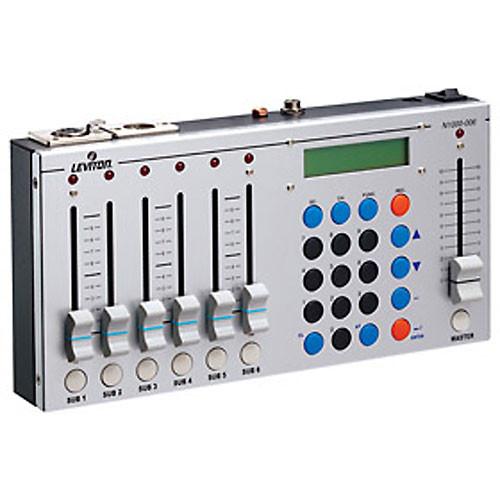

User Manual for NSI Leviton 1000 Scene DMX Controller - 512 Channels, 6 Submasters Click to enlarge the picture
Contents of the user manual for the NSI Leviton 1000 Scene DMX Controller
- Product category: Lighting Consoles & Controllers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Lighting Consoles & Controllers
|
User manual for the NSI Leviton 1000 Scene DMX Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More In its simplest application,the NSI/Leviton 1000 Scene DMX Controller can be used for recall of recorded scenes. Channel levels are set via the sub-masters in channel mode, or direct via the keypad. Additionally, scenes can record the channel levels per the incoming DMX control signal. In a more complex application, the 1000 series console can be used as both a scene controller and a backup console, offering immediate recall of a stored scene upon loss of DMX input control signal. This device offers access to all (512) DMX control channels from its keypad. It operates from the included re-chargeable battery or from the included multi-voltage power supply. Ports -
- DMX Input: (1) Male 5-Pin XLR, DMX output, conforms to DMX512-A
- DMX Output: (1) Female 5-Pin XLR, DMX output, conforms to DMX512-A
- DMX Signal Connection: XLR 5-Pin
512 Channels - Suitable applications include:
- Backup DMX console
- High Schools
- Churches
- Performing Arts Centers
- Rehearsal controller
Versatile - Six Sub-masters and one Master Fader
- 40 Scene Memory
- Scene Memories can be assigned to Sub-Masters
- Access to all (512) DMX control channels from keypad
- Backup Console Mode - Scene fade and activation upon sudden loss of incoming DMX signal
- Simple to use and easy to carry
- Operates from included re-chargeable battery or from included power supply
- Supports DMX Snapshot
- 19" EIA Rack mount option
- LCD Power Save mode
UPC: 078477328002 In the Box NSI / Leviton 1000 Scene DMX Controller - 512 Channels, 6 Submasters (120-260VAC) Rechargable Battery and Charger 120-260VAC "Wall-Wart" Power Supply One Year Manufacturer's Warranty Note: DMX Control Cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton 1000 Scene DMX Controller - 512 Channels, 6 Submasters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton N1000-006 Specs | Battery | 1.2V NiMH AA rechargeable battery pack, 3 hrs run-time
Charger: Multi-Voltage (120-260VAC) 5 hours | | Dimensions | 10.3 x 5.2 x 1.77" (26.2 x 13.2 ax 4.5 cm) | | Weight | 4 lbs (2 kg) | | | | Package Weight | 3.95 lb | | Box Dimensions (LxWxH) | 16.9 x 7.0 x 3.3" |
