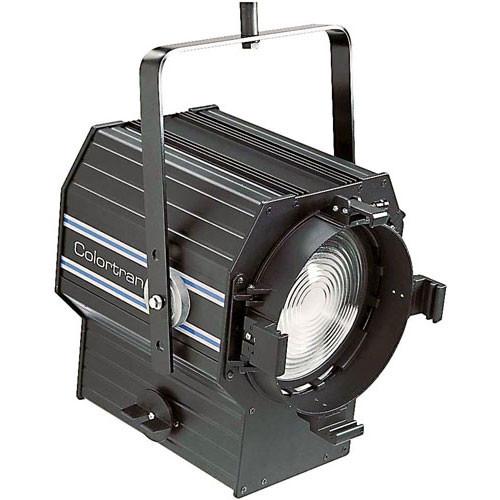

User Manual for NSI Leviton 1K Theater Fresnel - Hanging, Manual Click to enlarge the picture
Contents of the user manual for the NSI Leviton 1K Theater Fresnel -
- Product category: Stage & Studio NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Stage & Studio
|
User manual for the NSI Leviton 1K Theater Fresnel - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The NSI/Leviton 1K Hanging 6" Theater Fresnel is a high intensity 1000 spotlight with a smooth, even flood field. Its superior ventilation system guarantees cool operation with extended bulb and gel life. All operating controls are thermally insulated for cool-handling.When fitted with a 1000 watt quartz-halogen bulb, this fixture will provide a beam of 109 footcandles 4.3 feet (1.1 m) in diameter from 40 feet (12 m) away @ full spot.This fixture will provide a beam of 138 footcandles 11.3 feet (3.8 m) in diameter from the same distance @ full flood.This model comes with an installed 20 Amp, 2 Pole, 3-Wire ground pin Stage Pin Connector. - Two models are available -- this, and an 8" Fresnel, which can handle up to 2000 watts.
- Torion insulators provide smooth focusing operation.
- Lightweight, rugged aluminum construction
In the Box NSI / Leviton 1K Theater Fresnel - Hanging, Manual (120VAC) Pipe Clamp 20A Grounded Stage Pin Connector One Year Manufacturer's Warranty Note: Bulb not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton 1K Theater Fresnel - Hanging, Manual in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton Theater Fresnel Specs | Rating | 1000 Watts, 120VAC, 20A | | Socket (Lampholder) | P28s | | Lens (Condenser) | 6" low expansion borosillicate fresnel lens | | Reflector (Mirror) | Spherical, specular, high purity aluminum | | Mounting | Hanging model with pipe clamp and 3'cable | | Yoke | Heavy duty flat blade steel | | Cable | 3', Stage Pin plug installed | | Focusing | Worm Gear driven | | Weight | 11 lbs (4.95 kg) | | Dimensions | 10.5 x 22.8 x 13" (26.6 x 57.9 x 33 cm) | | | | Package Weight | 16.45 lb | | Box Dimensions (LxWxH) | 18.1 x 12.7 x 12.5" |
