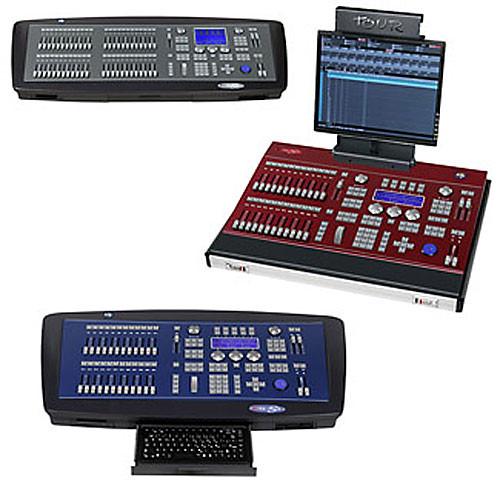

User Manual for NSI Leviton 8700 GS Touring Console - 1024 Channels, 48 Sub-Masters Click to enlarge the picture
Contents of the user manual for the NSI Leviton 8700 GS Touring Console
- Product category: Lighting Consoles & Controllers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Lighting Consoles & Controllers
|
User manual for the NSI Leviton 8700 GS Touring Console contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description What You Need to Know When Working with DMX Read More The NSI/Leviton 8700GS Touring Control Console is everything the sophisticated lighting professional needs to make creating designs, programming shows, and executing masterpieces easy and rewarding. This console features an integral keyboard and outputs for all your needs. This 8700GS model offers 1024 channels of control, with 48 sub-masters. It features one in, and two DMX512 output ports. It also includes an LCD flat panel display, a hinged, removable lid and an accessory tray. User Interface - 48 Sub-Masters, assignable as scenes, channels, effects, attribute control, rate control or cue lists
- Cross fader for precise cue control -- manual or automatic
- Grand Master, Effects Master and Sub-Master Master
- Vertical Level Wheel, multi-color trackball for auto-device position control and mouse emulation
- Three horizontal Encoders for attribute control, one for screen control
- Ten soft keys with bank control to access groups, macros, positions, colors, etc.
Set Up - Interactive patch across all channels -- local and network
- Responsive curves - custom curves can be applied to any conventional channels
- Complete on-board fixture library and data storage -- easy update from disk, USB or Ethernet
Software updates are down loadable from NSI website Print-to-text for hard-copy record of all show data - All console functions have built-in test routines.
- Merge selected parts of any stored show into current show
- Multi-lingual: English, French, Spanish, German
Playback - 24 Masters, sub-master recall, cue list, effects, rate/speed control
Effects live modification: speed, pattern, mode, direction, HTP, LTP and priority for each channel Editing - Palette Libraries for quick recall of: position, color, beam, gobo, dimmer, extra, fan-out and flip
- Effects: Chase -- direction, attack, rate
- Auto shape creation adjustment for: Amplitude, velocity, offset
- Quick functions: Undo, copy, exam, modify, exchange, edit+, next, text, macros
Recording - Immediate next cue, recording by double-press of record button, active channels only selection
- Multiple cue parts, each with own timing for simultaneous complex event recall
- Link macros, events, etc., to cue execution
- Six pre-defined attribute timing patterns can be applied to any cue
- Learn-time auto-times playback based on manual execution
- Cue times entry via cue-list or command line, default cue time definition
In the Box NSI / Leviton 8700 GS Touring Console - 1024 Channels, 48 Sub-Masters (85-265VAC) Integral DMX Control: 1 In, 2 Out Hinged, Removable Lid LCD Flat Panel Display Accesory Storage Tray One Year Manufacturer's Warranty Note: DMX Control Cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton 8700 GS Touring Console - 1024 Channels, 48 Sub-Masters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton P8724005GST Specs Rating | 85-265VAC, 50-60Hz, 150 Watts | Dimensions | Console: 27 x 22 x 6" (67.5 x 55 x 15.5 cm) (WxDxH) In Road Case: 39 x 26 x 9" (98 x 66 x 25 cm) | Weight | 47.4 lbs (21.5 kg) |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 91 owners. Add your rating and experience with the product.
