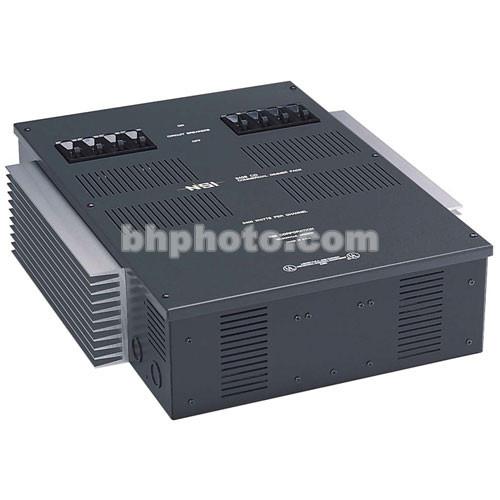

User Manual for NSI Leviton Commercial Dimmer Pack, 8 Channel - 19200W Total Click to enlarge the picture
Contents of the user manual for the NSI Leviton Commercial Dimmer Pack, 8
- Product category: Dimmers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Dimmers
|
User manual for the NSI Leviton Commercial Dimmer Pack, 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description NSI Digital Dimming Systems combine portability with rugged construction for a variety of applications. This Commercial series dimmer is 512 channel address capable. The DDS9800E has 8 channels. Plug in single, or ganged lights, up to 2400 watts per channel, 19,200 Watts total. Its circuit breaker is external, on the front panel.This model rack dimmer is configured with pressure screw terminals for light fixtures. - Equipped for NSI 128 channel Micro-Plex (3-Pin XLR) operation. Optional DMX512 (5-Pin) control is available.
- 400 micro-second toroidal filtering reduces audio interference and extends lamp life.
- Microprocessor controlled.
- 120 /240 Volt, 80 amp AC Operation.
- Internal switch select activates 8 auto sequence control programs.
- 8 Magnetic circuit breakers.
- Extruded Aluminum Passive Heat Dispersion.
It is advised to allow 36" of space from top of unit to ceiling, 12" from top or side to a wall, and at least 6" from side, to other equipment.
If multiple units are installed in small space, ambient air temperature should not exceed 100°F (37° C). - Compatible with Mark VII and Mark X Ballasts.
In the Box NSI / Leviton Commercial Dimmer Pack, 8 Channel - 19200W Total (120V AC) NSI 128 channel Microplex ports (3 pin XLR M and F) 0-10V analog input port (5 pin DIN) Luma-Net terminal Pressure screw terminals 120V AC cable 2 Year Manufacturer's warranty Note: Control cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Commercial Dimmer Pack, 8 Channel - 19200W Total in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton N2408400CD0 Specs | Dimensions | 16.75 x 5 x 20.25" (42.5 x 12.7 x 51.4 cm) with mounting flanges | | Weight | 61 lb (27.7kg) | | | | Package Weight | 66.25 lb | | Box Dimensions (LxWxH) | 26.2 x 25.1 x 9.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
