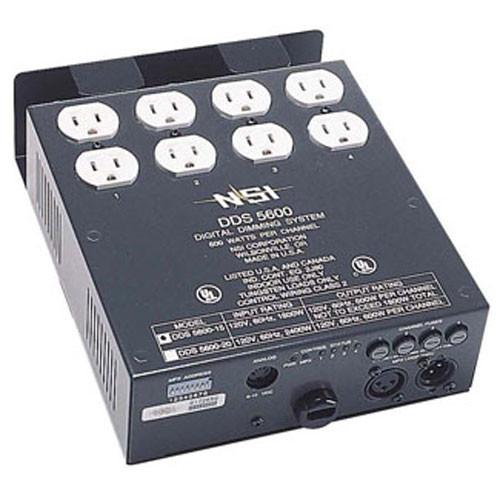

User Manual for NSI Leviton Digital Satellite DMX Dimmer Pack - Four Channels, 20 Amps Click to enlarge the picture
Contents of the user manual for the NSI Leviton Digital Satellite DMX Dimmer
- Product category: Dimmers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Dimmers
|
User manual for the NSI Leviton Digital Satellite DMX Dimmer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The NSI DDS5600 4 channel, 2400 watt total Satellite Dimmer Pack has 4 individual Dimmer/Relay Channels. Its dual SCR circuit design ensures reliable operation. It has a 20 amp, 120 volt circuit breaker. Its AC power plug is 120 volt, NEMA 5-20, with perpendicular blades. Toroidal filtering reduces audio interference and extends lamp life.The sequence rate is adjustable from 1 to 60 seconds. It also features as user-select switch for Dimmer or Relay operation. The DDS5600 comes with NSI's 128 channel microplex (3 pin XLR) connection. An optional DMX512 digital control (5 pin XLR) interface is available.The reversible back cover allows the dimmer pack to be truss or pipe mounted. - External fusing for each individual channel
- User select switch for Soft Start operation to increase lamp life
- Internal jumpers activate 8 auto sequence control programs.
- Power On and Control Status LED indicators
In the Box NSI / Leviton Digital Satellite DMX Dimmer Pack - Four Channels, 20 Amps (120VAC) Integral DMX-512 Control In and through ports 120VAC cable One Year Manufacturer's Warranty Note: Control cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton Digital Satellite DMX Dimmer Pack - Four Channels, 20 Amps in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton N5600-D20 Specs | Dimensions | 9.5 x 7.5 x 2.6" (24 x 19 x 6.6 cm) W x H x D | | Weight | 10 lbs (4.5 kg) | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 13.2 x 11.5 x 9.4" |
