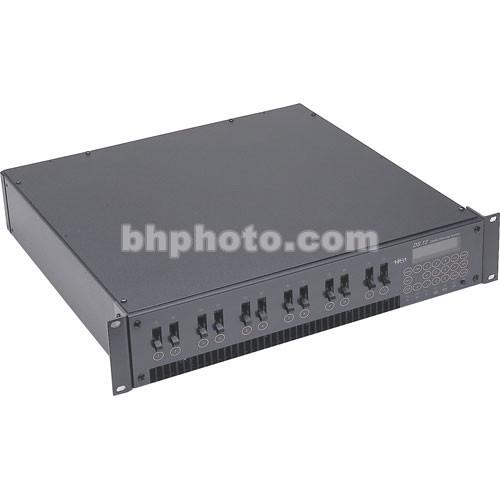

User Manual for NSI Leviton DS12-24 2,400W 12 Channel Dimmer Pack Click to enlarge the picture
Contents of the user manual for the NSI Leviton DS12-24 2,400W 12 Channel
- Product category: Dimmers NSI / Leviton
- Brand: NSI / Leviton
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for NSI / Leviton Dimmers
|
User manual for the NSI Leviton DS12-24 2,400W 12 Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any NSI / Leviton product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official NSI / Leviton user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a NSI / Leviton product will considerably shorten its lifespan!
|
Product description The Leviton DS12-24 2,400W 12 Channel Dimmer Pack is a rack-mountable dimmer that controls 12 channels, 2,400W per channel. It has a 22 button function keypad, programmable time fade presets and programmable bump buttons. It has multiple control inputs such as NSI Micro-Plex (3-pin XLR), and DMX512 (5-pin XLR) and NSI Luma-Net, as well as O-10VDC analog control inputs for full versatility. A termination switch is mounted on the front panel. This model has 2 knock out panels for do-it-yourself wiring. Suggested users include touring groups, or theatres where complete pack removal is difficult or impossible. - Dimmer and Control Modules are easily serviced using removable front panel while dimmer remains in rack.
- Magnetic circuit breakers and voltage regulation.
- Valid DMX and NSI Micro-Plex signal indicators.
- Full/On/Test/Focus modes.
- Two-pole 120-amp or three-pole 80-amp power feed.
- Occupies two 19" rack spaces.
UPC: 078477121375 In the Box NSI / Leviton DS12-24 2,400W 12 Channel Dimmer Pack Limited 2-Year Warranty Note: Control cable not included Table of Contents
|
Upload User Manual
Have you got an user manual for the NSI Leviton DS12-24 2,400W 12 Channel Dimmer Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNSI / Leviton NDS124042K0 Specs | Dimensions | 17.2 x 17.15 x 3.5" (43.7 x 43.5 x 8.9 cm) W x D x H | | Weight | 48 lb (21.8 kg) | | | | Box Dimensions (LxWxH) | 23.25 x 21.25 x 8.38" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
